Accessing Stored Diagnostic Trouble Codes

NOTE: The engine does not need to be running to navigate the diagnostic gauge screens. If engine start up is desired, See Starting The Engine in the Engine Operation Section. All of the engine values illustrated on the diagnostic gauge indicate the engine is running.

For description of diagnostic trouble codes, see Diagnostic Trouble Codes (DTCs) — Listing in the Troubleshooting Section.

  1. RG13159
    RG13159-UN-26SEP03

    Menu Key

    Turn the key switch to the ON position. Starting at the single or four engine parameter display, press the "Menu" key.


  2. RG13168
    RG13168-UN-02OCT03

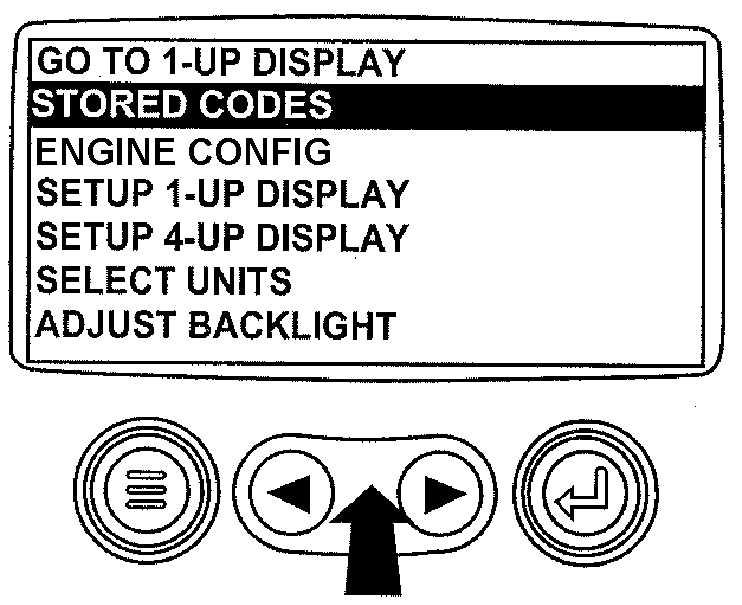

    Select Stored Codes

    The main menu will be displayed. Use the "Arrow" keys to scroll through the menu until "Stored Codes" is highlighted.


  3. RG13169
    RG13169-UN-02OCT03

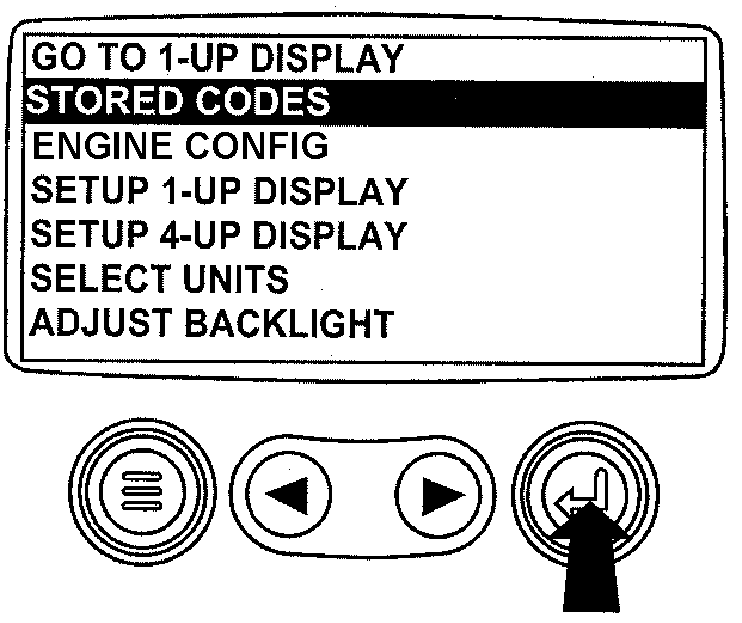

    Enter Key

    Once the "Stored Codes" menu item has been highlighted press the "Enter" key to view the stored codes.


  4. RG13245
    RG13245-UN-02OCT03

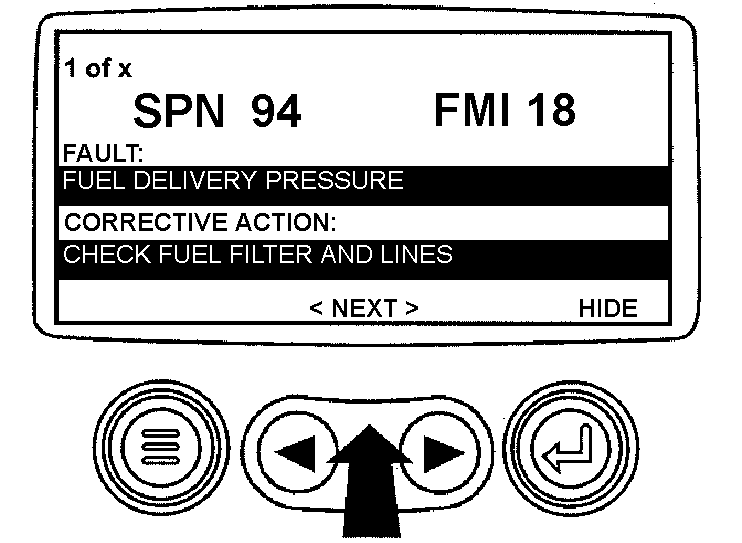

    Use Arrow Keys To Scroll

    If the word "Next" appears above the "Arrow" keys, there are more stored codes that may be viewed. Use the "Arrow" key to scroll to the next stored code.


  5. RG13246
    RG13246-UN-02OCT03

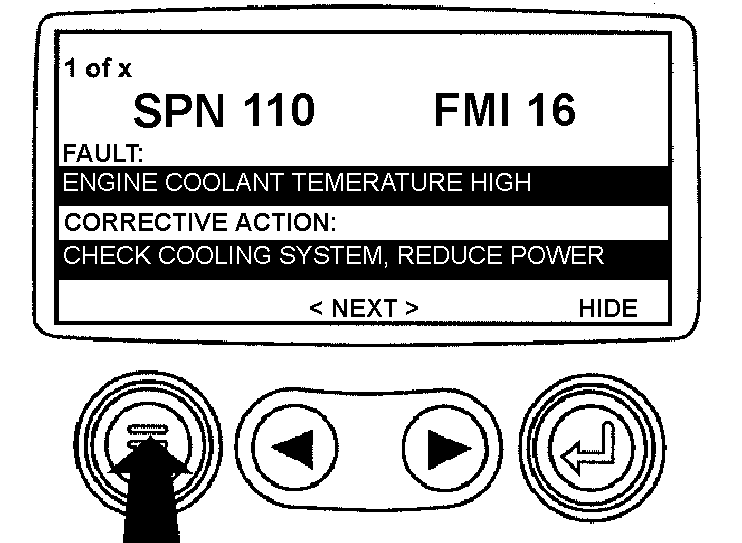

    Return To Main Menu

    Press the "Menu" key to return to the main menu.


  6. RG13159
    RG13159-UN-26SEP03

    Exit Main Menu

    Press the "Menu" key to exit the main menu and return to the engine parameter display.
