Selecting Units Of Measurement

1.
   RG13159-UN-26SEP03

   Menu Key

   Turn the key switch to the ON position. Starting at the single or four engine parameter display, press the "Menu" key.

---




2.

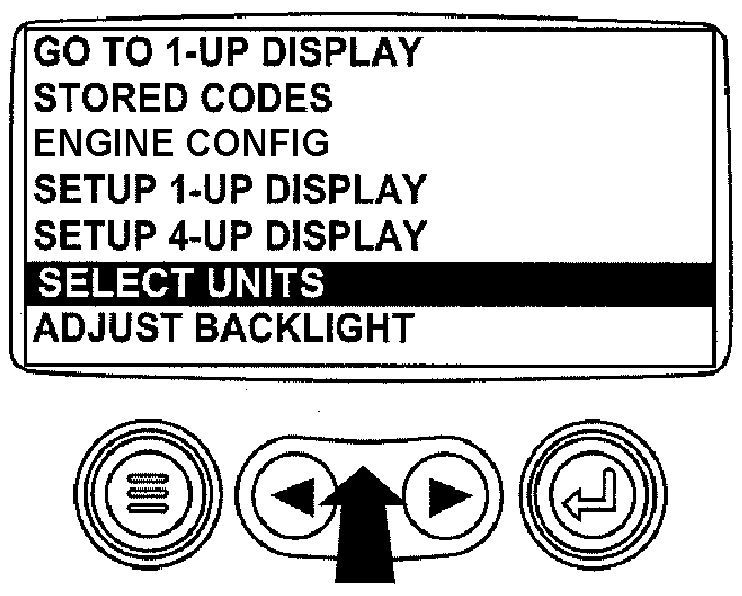

   RG13188-UN-02OCT03

   Select Units

   The main menu will be displayed. Use the "Arrow" keys to scroll through the menu until "Select Units" is highlighted.

---




3.

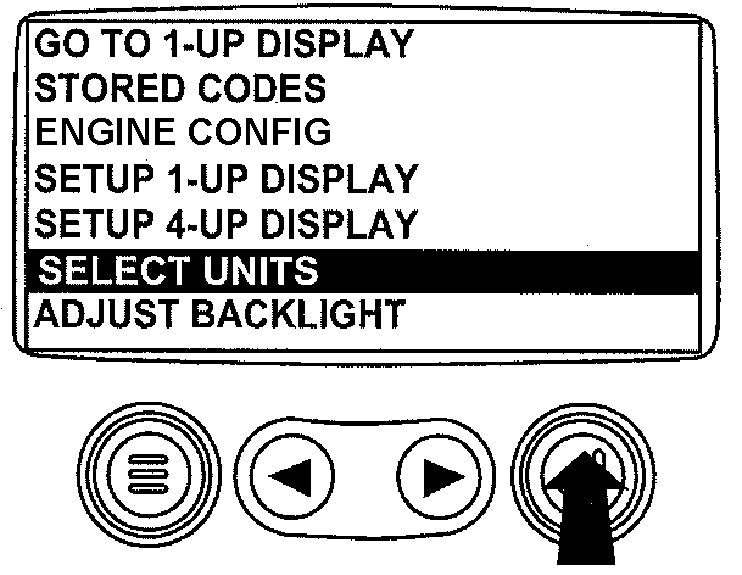

   RG13189-UN-02OCT03

   Press Enter Key

   Once the "Select Units" menu item has been highlighted press the "Enter" key to access the "Select Units" function.

---




4.

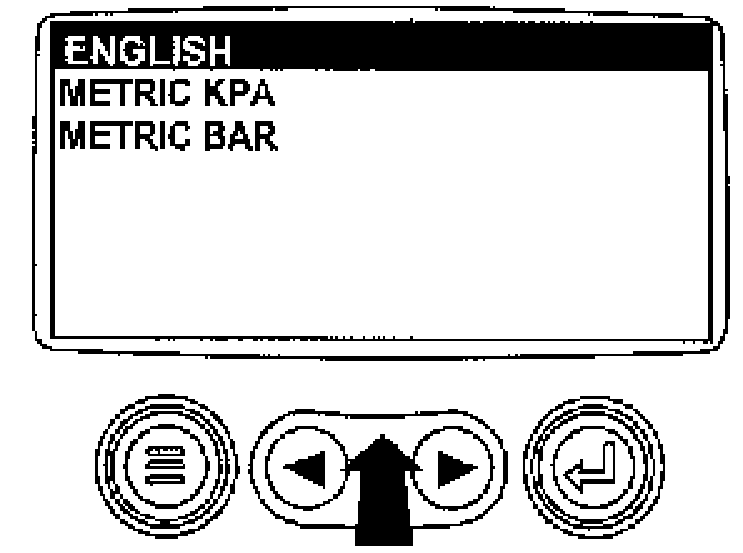

   RG13190-UN-26SEP03

   Select Desired Units

   There are three choices for units of measurement, English, Metric kPa or Metric Bar.

   English is for Imperial units, with pressures displayed in PSI and temperatures in °F.

   Metric kPa and Metric bar are for IS units, with pressures displayed in kPa and bar respectively, and temperatures in °C.

   Use the "Arrow" keys to highlight the desired units of measurement.

---




5.

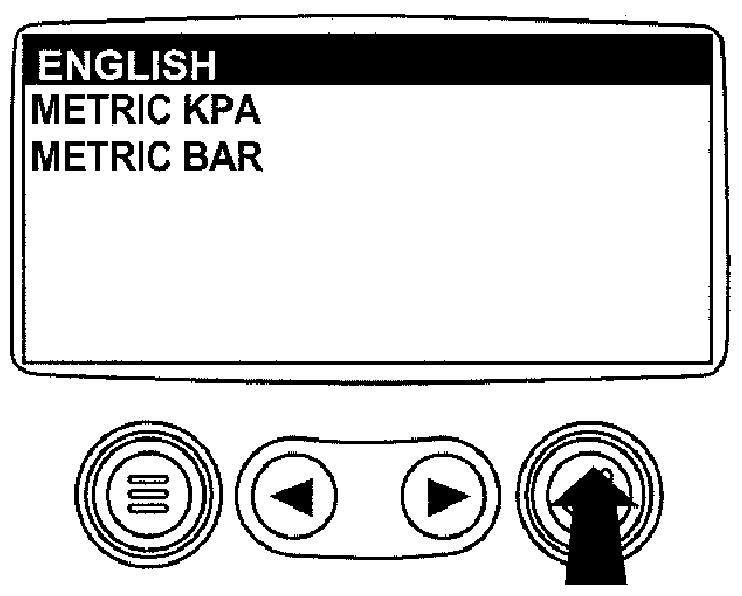

   RG13191-UN-30SEP03

   Press Enter Key to Select

   Press the "Enter" key to select the highlighted units.

---




6.

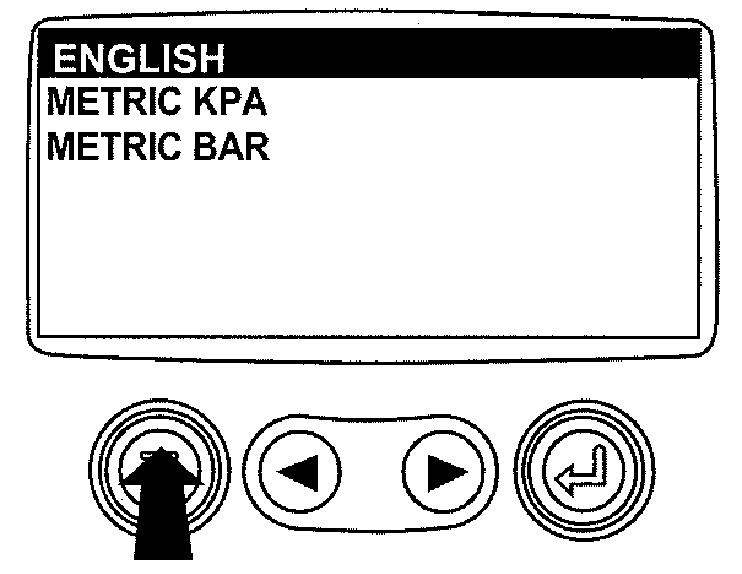

   RG13192-UN-26SEP03

   Return To Main Menu

   Press the "Menu" key to return to the main menu.

---




7.
   RG13159-UN-26SEP03

   Press Menu Key

   Press the "Menu" key to return to the engine parameter display.

---
