Setup 1-Up Display

1.
   RG13159-UN-26SEP03

   Menu Key

   Turn the key switch to the ON position. Starting at the single engine parameter display, press the "Menu" key.

---

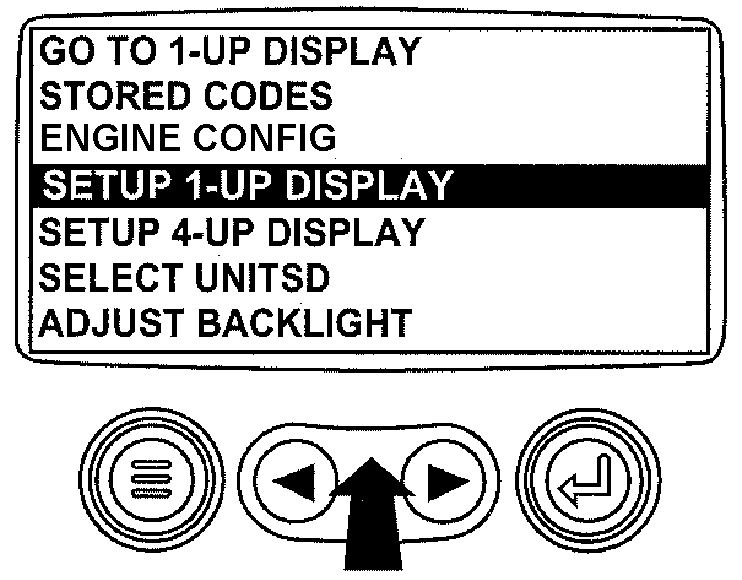

2.
   RG13193-UN-02OCT03

   Setup 1-Up Display

   Use the "Arrow" keys to scroll through the menu until "Setup 1-Up Display" is highlighted.

---

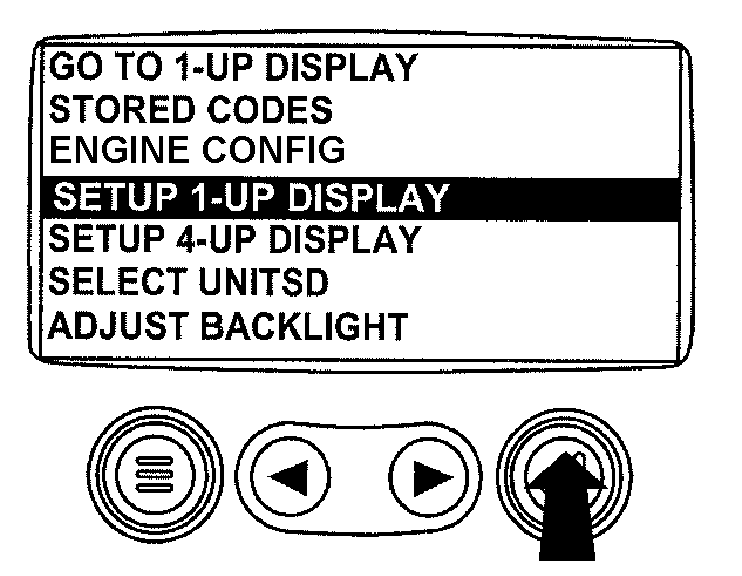

3.
   RG13194-UN-02OCT03

   Press Enter Key

   Once "Setup 1-Up Display" menu item has been highlighted press the "Enter" key to access the "Setup 1-Up Display" function.

---




4.
   RG13196-UN-26SEP03

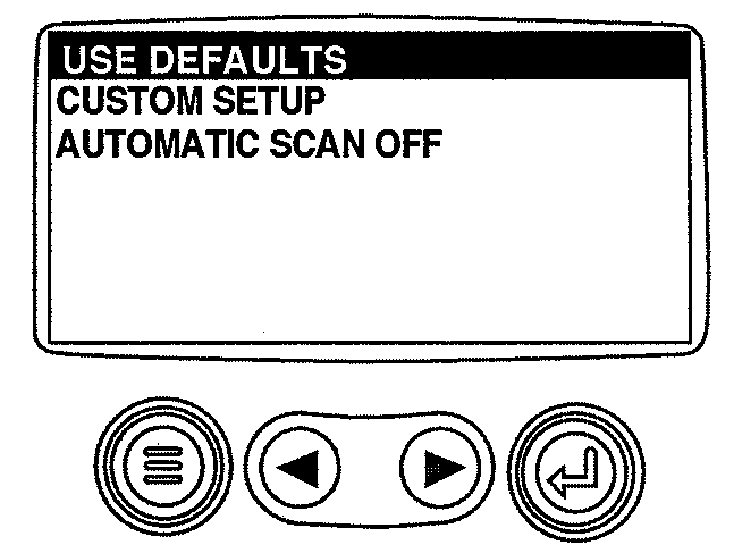

   1-Up Display Options

   Three options are available for modification of the 1-Up Display.

   1. Use Defaults – This option contains the following engine parameters for display: Engine Hours, Engine Speed, Battery Voltage, % Load, Coolant Temperature and Oil Pressure.

   2. Custom Setup – This option contains a list of engine parameters. Engine parameters from this list can be selected to replace any or all of the default parameters. This option can be used to add parameters available for scrolling in the 1-Up Display.

   3. Automatic Scan – Selecting the scan function will allow the 1-Up Display to scroll through the selected set of parameters one at a time, momentarily pausing at each.

---




5.
   RG13195-UN-26SEP03

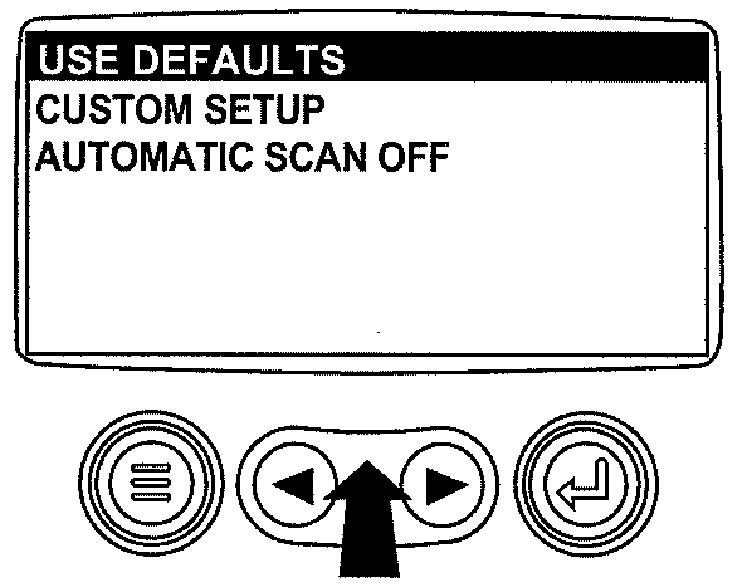

   Select Defaults

   Use Defaults - To select "Use Defaults" use the Arrow keys to scroll to and highlight "Use Defaults" in the menu display.

---




6.
   RG13197-UN-29SEP03

   Defaults Selected

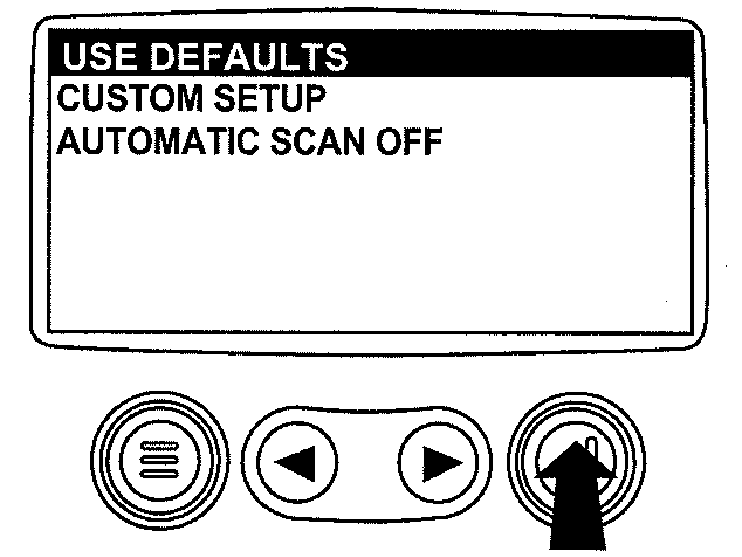

   Press the "Enter" key to activate the "Use Defaults" function.

---




7.
   RG13149-UN-24SEP03

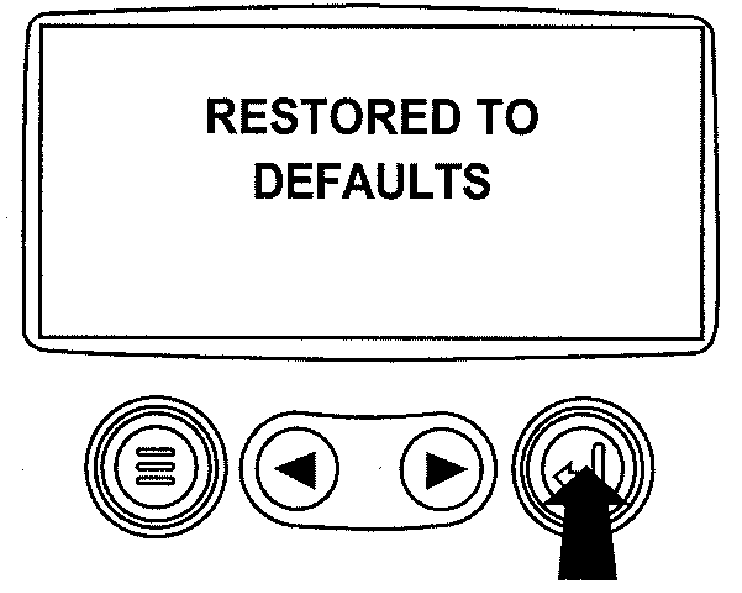

   Restored To Defaults

   The display parameters are reset to the factory defaults, then the display will return to the "Setup 1-Up Display" menu.

---




8.
   RG13198-UN-26SEP03

   Select Custom Setup

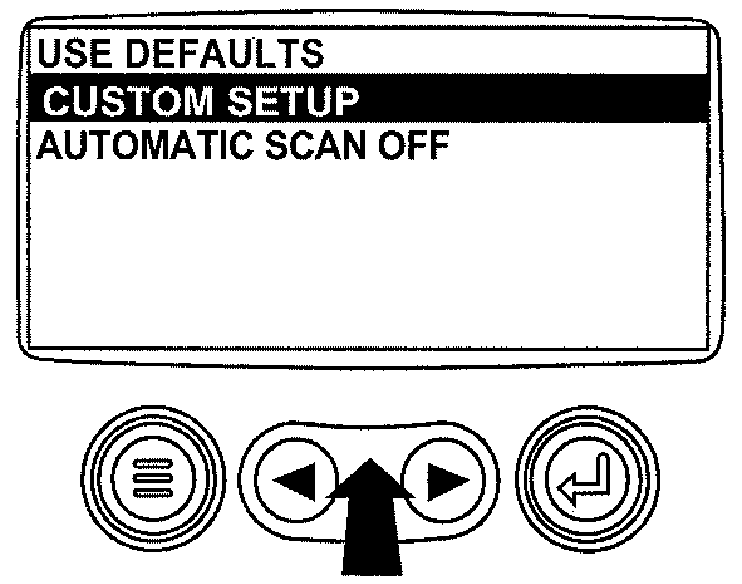

   Custom Setup - To perform a custom setup of the 1-Up Display, use the arrow buttons to scroll to and highlight "Custom Setup" on the display.

---




9.
   RG13199-UN-26SEP03

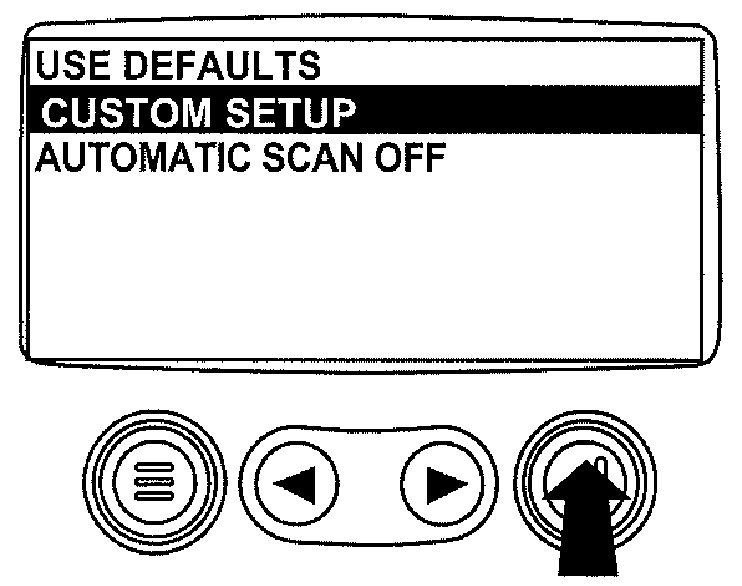

   Engine Parameters

   Press the "Enter" key to display a list of engine parameters.

---




10.
    RG13150-UN-24SEP03

    Select Parameters

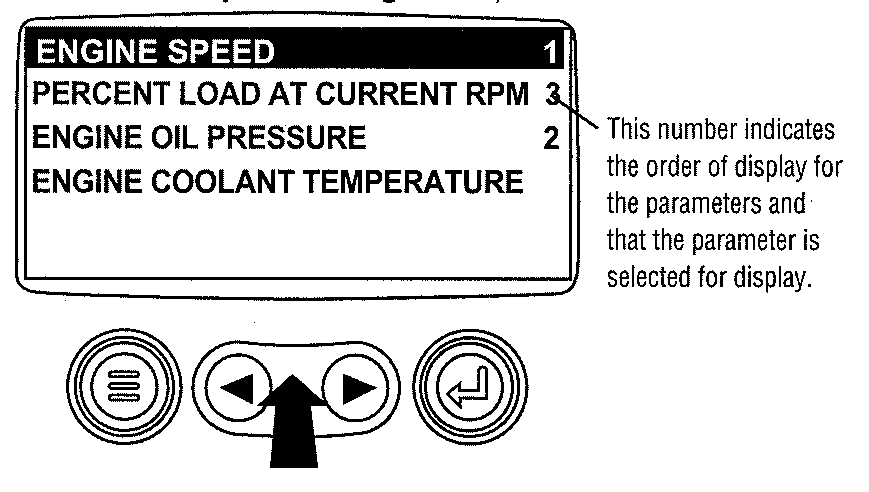

    Use the "Arrow" keys to scroll to and highlight a selected parameter (parameter with a number to right of it).

---




11.
    RG13219-UN-26SEP03

    Deselect Parameters

    Press the "Enter" key to deselect the selected parameter, removing it from the list of parameters being displayed on the 1-Up Display.

---




12.
    RG13151-UN-24SEP03

    Select Desired Parameters

    Use the "Arrow" keys to scroll and highlight the desired parameter that has not been selected for display (parameter without a number to right of it).

---

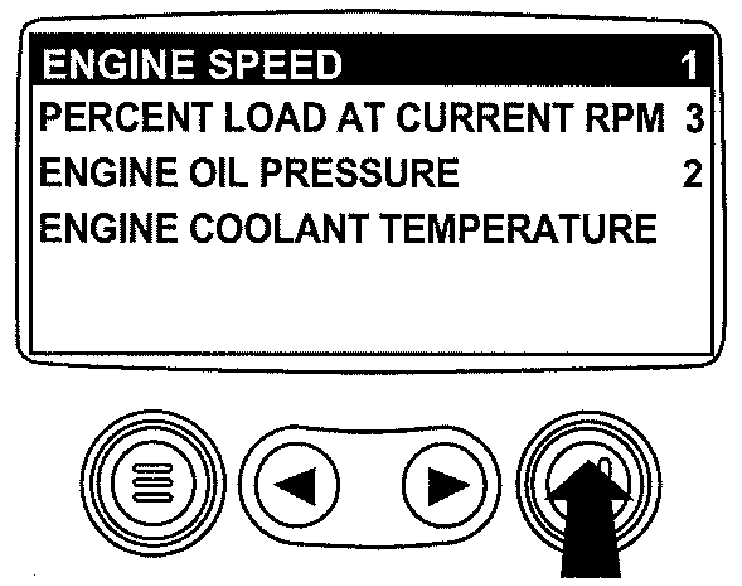

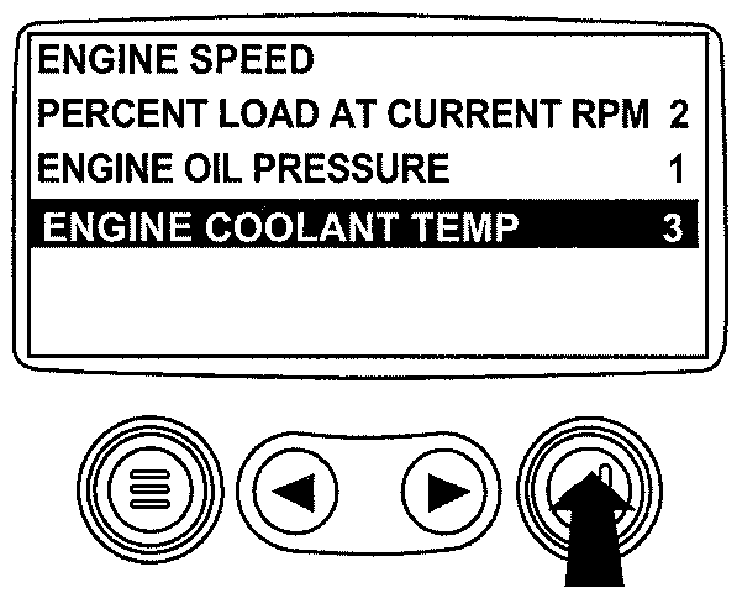

13.
    RG13220-UN-26SEP03

    Select Parameters For Display

    Press the "Enter" key to select the parameter for inclusion in the Single Engine Parameter Display.

---

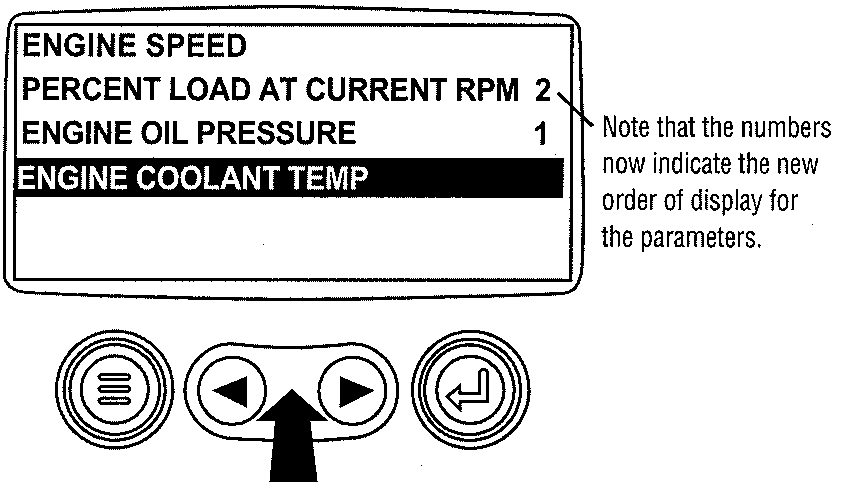

14. Continue to scroll through and select additional parameters for the custom 1-Up Display. Press the "Menu" key at any time to return to the "Custom Setup" menu.

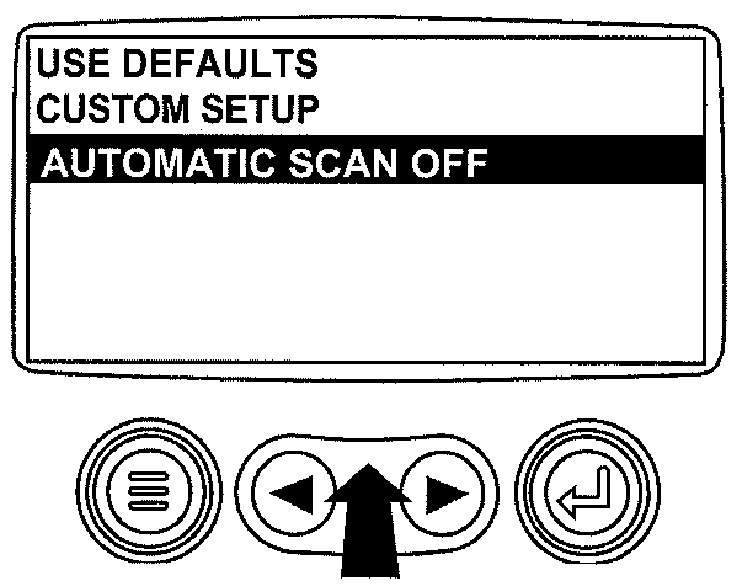

15.
    RG13221-UN-26SEP03

    Automatic Scan Off

    Automatic Scan - Selecting the scan function will allow the 1- Up Display to scroll through the selected set of parameters one at a time. Use the "Arrow" keys to scroll to the "Automatic Scan" function.

---

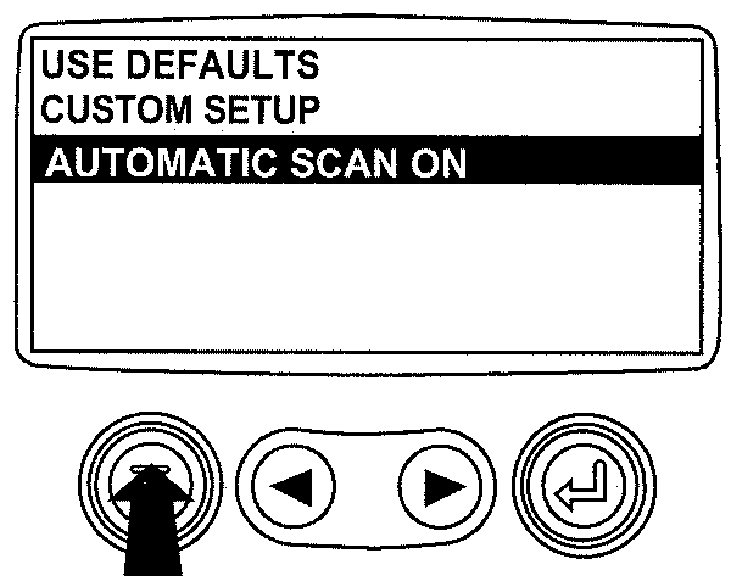

16.
    RG13222-UN-26SEP03

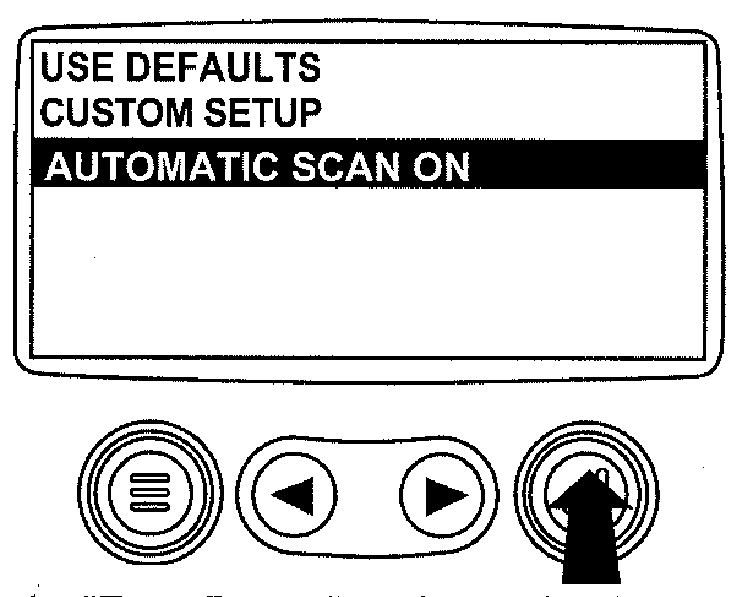

    Automatic Scan On

    Press the "Enter" key to toggle the "Automatic Scan" function on.

---

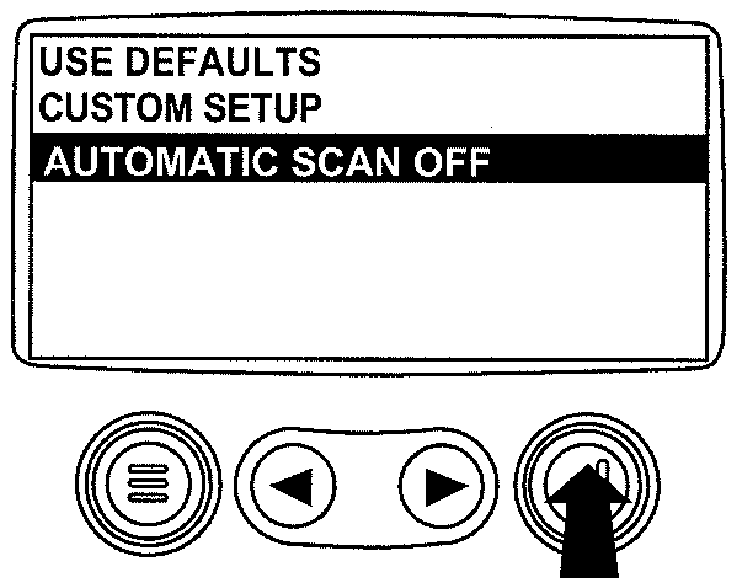

17.
    RG13223-UN-26SEP03

    Automatic Scan Off

    Press the "Enter" key again to toggle the "Automatic Scan" function off.

---




18.
    RG13224-UN-26SEP03

    Menu Key

    Once the "Use Defaults", "Custom Setup" and "Automatic Scan" functions have been set, press the "Menu" key to return to the main menu.

---




19.
    RG13159-UN-26SEP03

    Exit Main Menu

    Press the "Menu" key to exit the main menu and return to the engine parameter display.

---
