Replacing Primary Fuel Filter Element

RG13255-UN-09DEC03

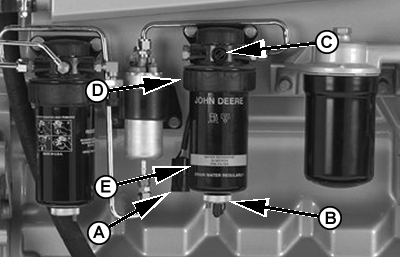

Primary Fuel Filter - 6068SFM50 Shown

RG13345-UN-09DEC03

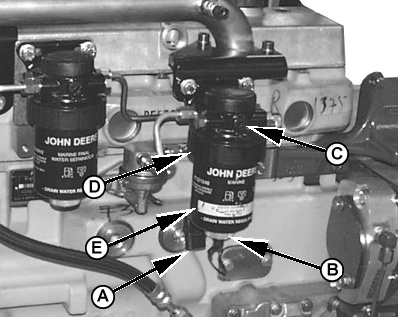

Primary Fuel Filter - 4045TFM75 Shown

A - Water-In-Fuel Sensor Connection

B - Retaining Ring

C - Air Vent Screw

D - Retaining Ring

E - Filter Element

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting fuel or other lines. Tighten all connections before applying pressure. Keep hands and body away from pinholes and nozzles which eject fluids under high pressure. Use a piece of cardboard or paper to search for leaks. Do not use your hand.

If any fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this type injury or gangrene may result. Doctors unfamiliar with this type of injury may call the Deere & Company Medical Department in Moline, Illinois, or other knowledgeable medical source.

1. Close fuel shut-off valve at bottom of fuel tank (not illustrated).

2. Clean entire area surrounding fuel filter assembly to keep debris from entering fuel system.

3. Disconnect water in fuel sensor (A).

4. Loosen retaining ring (B) and air vent screw (C). Drain fuel into a suitable container.

NOTE: Lifting up on retaining ring (D) as it is rotated helps to get it past raised locators.

5. Firmly grasp the retaining ring (D) and rotate it counterclockwise 1/4 turn. Remove ring with filter element (E).

6. Inspect filter mounting base for cleanliness. Clean as required.

NOTE: Raised locators on fuel filter canisters must be indexed properly with slots in mounting base for correct installation.

7. Install new filter element onto mounting base. Be sure element is properly indexed and firmly seated on base. It may be necessary to rotate filter for correct alignment.

8. Align keys on filter element with slots in filter base.

9. Install retaining ring onto mounting base making certain dust seal is in place on filter base. Hand tighten ring (about 1/3 turn) until it “snaps” into the detent. DO NOT overtighten retaining ring.

NOTE: The proper installation is indicated when a "click" is heard and a release of the retaining ring is felt.

A plug is provided with the new element for plugging the used element.

10. Connect water in fuel sensor.

11. Open fuel shut-off valve. Whenever the fuel system has been opened up for service (lines disconnected or filters removed), it will be necessary to bleed air from the system. (See BLEEDING THE FUEL SYSTEM in Service as Required Section.)
