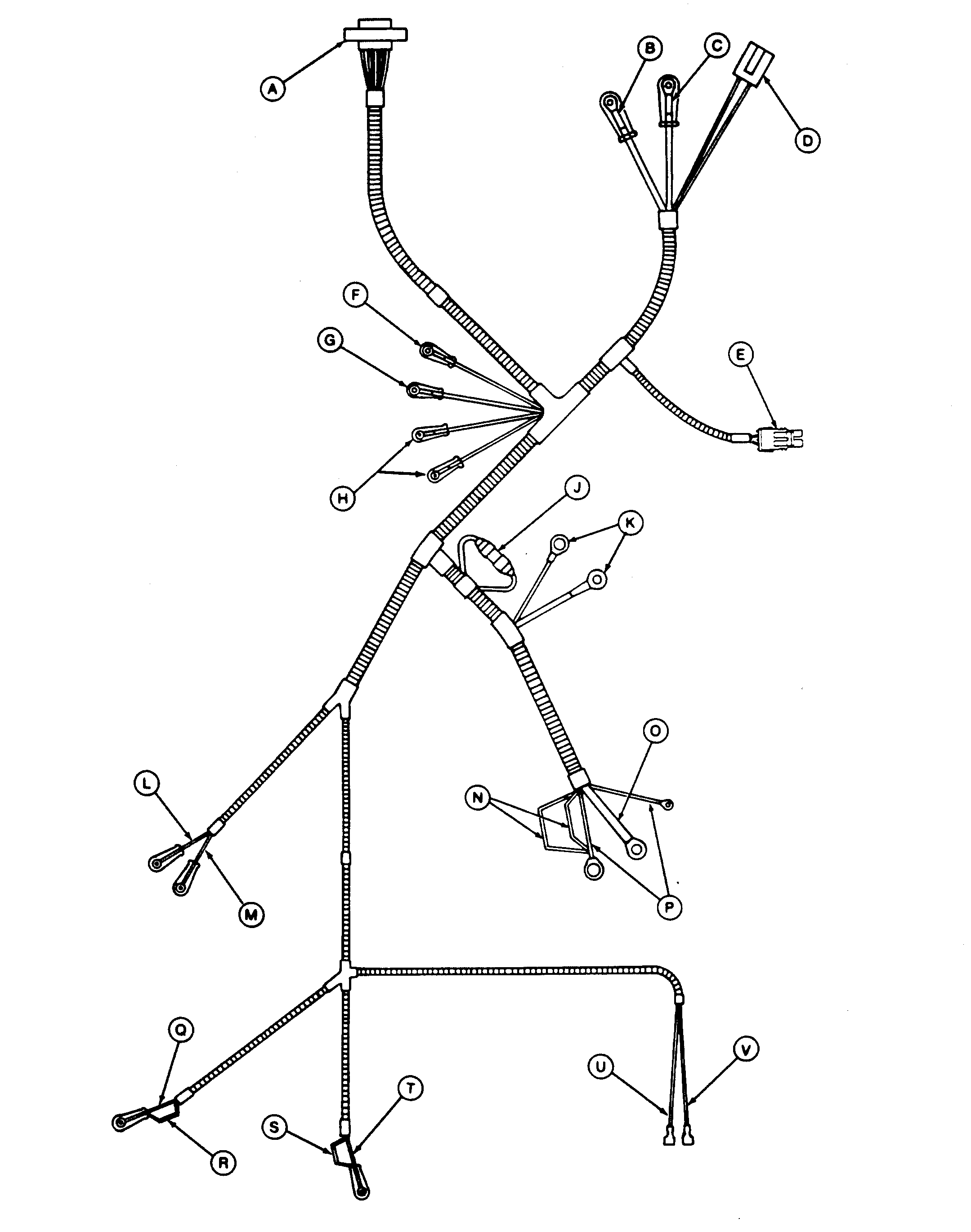

Propulsion Engine Wiring Harness - Mechanically Controlled Engine (4045DFM70)

RG6728-UN-14APR93

A - 10-Way Molded Connector

B - 6 Ga. Red (Alternator)

C - 6 Ga. Black (Alternator)

D - 14 Ga. Yellow and Red (Alternator)

E - 14 Ga. Pink/Black and Black (Fuel Filter/Water Separator)

F - 14 Ga. Yellow/Red (Start Circuit Relay)

G - 14 Ga. Black (Start Circuit Relay)

H - 12 Ga. Red (Start Circuit Relay)

J - 14 Ga. Red (Fuse Holder)

K - 6 Ga. and 12 Ga. Black (Ground)

L - 14 Ga. Lt. Blue (Oil Sender)

M - 14 Ga. Black (Oil Sender)

N - 14 Ga. Red (Starting Motor)

O - 6 Ga. Red (Starting Motor)

P - 12 Ga. Red (Starting Motor)

Q - 14 Ga. Black/Yellow (Fuel Shut-Off Solenoid)

R - 14 Ga. Black (Fuel Shut-Off Solenoid)

S - 14 Ga. Gray (Tachometer Pick-Up)

T - 14 Ga. Black (Tachometer Pick-Up)

U - 14 Ga. Tan (Coolant Temperature Sender)

V - 14 Ga. Black (Coolant Temperature Sender)
