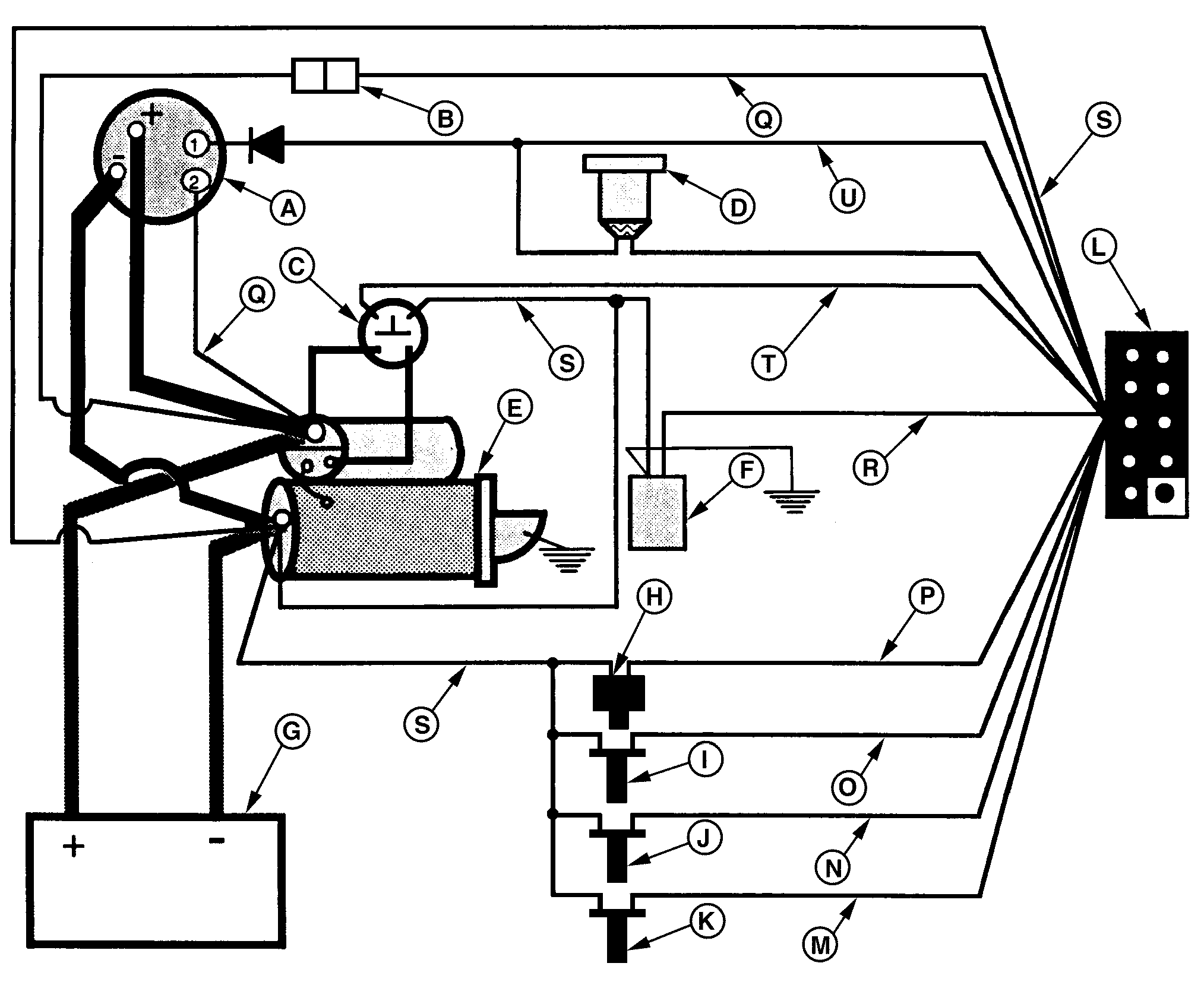

Propulsion Engine Wiring Harness - Mechanically Controlled Engine (4045DFM70)

RG9862-UN-06JAN99

A - Alternator

B - 20-Amp Fuse with Holder

C - Start Circuit Relay

D - Fuel Filter/Water Separator

E - Starting Motor

F - Fuel Shut-Off Solenoid

G - Battery

H - Tachometer Pick-up

I - Coolant Temperature Sensor

J - Engine Oil Pressure Sensor

K - Spare Sensor

L - 10-Way Molded Connector

M - White

N - Lt. Blue

O - Tan

P - Gray

Q - Red

R - Black/Yellow

S - Black

T - Yellow/Red

U - Purple
