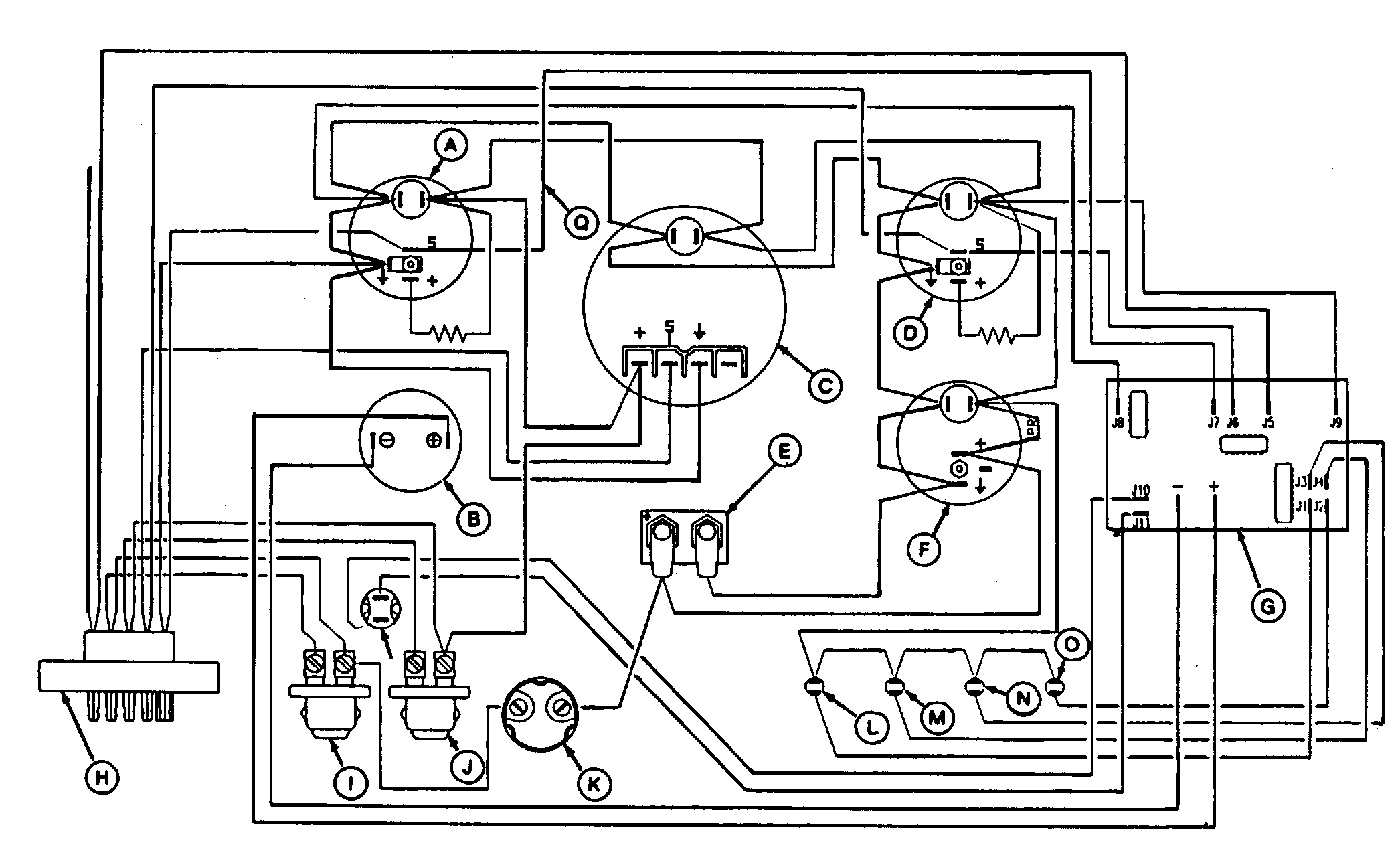

Propulsion Engine Instrument Panel - Mechanically Controlled Engine (4045DFM70)

RG6121-UN-03FEB92

A - Coolant Temperature Gauge

B - Audible Alarm

C - Tachometer

D - Oil Pressure Gauge

E - Hourmeter

F - Voltmeter

G - Alarm Circuit Board

H - 10-Way Molded Connector

I - Stop Switch

J - Start Switch

K - Key Switch

L - Water-in-Fuel Warning Light

M - Low Battery Voltage Warning Light

N - High Coolant Temperature Warning Light

O - Low Oil Pressure Warning Light
