Engine Option Codes

RG24026-UN-05AUG13

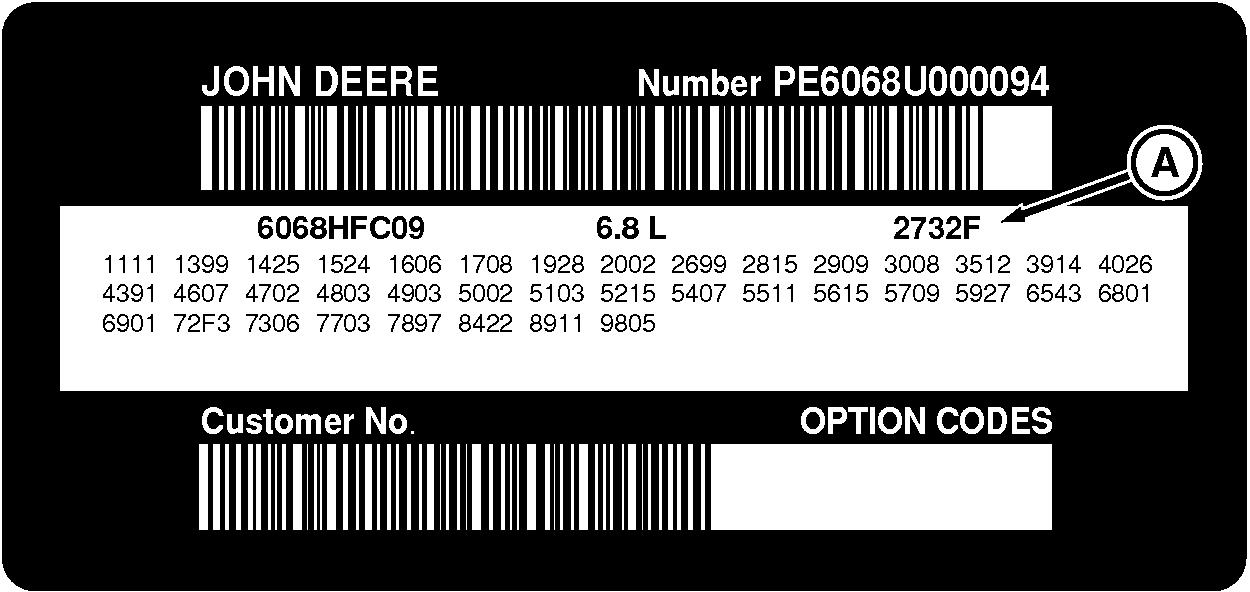

Option Code Label Example

A - Engine Base Code (example)

OEM engines have an engine option code label affixed to the rocker arm cover. These codes indicate which of the engine options were installed on your engine at the factory. When in need of parts or service, furnish your authorized servicing dealer or engine distributor with these numbers.

The engine option code label includes an engine base code (A). This base code must also be recorded along with the option codes. At times it will be necessary to furnish this base code to differentiate two identical option codes for the same engine model.

The first two digits of each code identify a specific group, such as alternators. The last two digits of each code identify one specific option provided on your engine, such as a 24 volt, 120 amp alternator.

If an engine is ordered without a particular component, the last two digits of that functional group option code will be 99, 00, or XX. The following list shows only the first two digits of the code numbers. For future reference such as ordering repair parts, it is important to have these code numbers available. To ensure this availability, enter the third and fourth digits shown on your engine option code label in the spaces provided on the following page.

An additional option code label may also be delivered (in a plastic bag attached to the engine or inserted in the machine documentation). It is recommended to place this label either on this page of the operator’s manual or in the Engine Owner's Warranty booklet under Option Codes.

The machine manufacturer may have placed the label in a specific accessible area (inside the enclosure or close to a maintenance area).

Your engine option code label may not contain all option codes if an option has been added after the engine left the producing factory.

If option code label is lost or destroyed, consult your servicing dealer or engine distributor selling the engine for a replacement.

Record your engine Base Code (A) in the spaces provided below for easy reference.

Engine Base Code (A):

Option Codes	Description	Option Codes	Description
10	Paint Protection	56	Paint
11	Rocker Arm Cover	57	Water Pump Inlet
12	Oil Filler	58	Power Take Off
13	Crankshaft Pulley	59	Oil Cooler/Oil Filter
14	Flywheel Housing	60	Add-On Fan Drive Pulley
15	Flywheel	61	After Treatment Device/Muffler
16	Fuel Injection System	62	Alternator Mounting
17	Air Inlet	63	Low-Pressure Fuel Lines
18	Air Cleaner	64	Exhaust Elbow
19	Oil Pan	65	Turbocharger
20	Water Pump	66	Temperature Switch
21	Thermostat Cover	67	Engine Sensors
22	Thermostat	68	Damper
23	Fan Drive	69	Engine Serial Number Plate
24	Fan Belt	70	Decomposition Tube (OEM)
25	Fan	71	SCR (OEM)
26	Block Heater	72	Performance Software and Labels
27	Radiator/Heat Exchanger	7A	Performance Software and Labels
28	Exhaust Manifold	73	After Treatment Dosing System
29	Ventilator System	74	Air Conditioning
30	Starting Motor	75	Restriction Indicator
31	Alternator	76	Oil Pressure Switch
32	DEF Lines, Pressure (OEM)	77	Timing Gear Cover (S450/S650)
33	DEF Lines, Supply/Return to Tank (OEM)	78	Air Compressor
34	DEF Tank and Header (OEM)	79	Certification
35	Final Fuel Filter	80	Sea Water Pump (Marine)
36	Front Plate and Idler Shafts	81	Primary Fuel Filter/Water Separator
37	Fuel Transfer Pump	82	Ignition System (Natural Gas)
38	Operator Manual	83	Vehicle Performance Software
39	Thermostat Housing	84	Wiring Harness
40	Dipstick and Tube	85	Fuel System (Natural Gas)
41	Belt Driven Auxiliary Drive (Add-On Crank Pulley)	86	Fan Pulley
42	DEF Line, Supply Module to Injector (OEM)	87	Belt Tensioner
43	Starting Aid	88	Oil Filter
44	Timing Gear Cover (S350)	89	EGR System
44	Tachometer Drive Sensors (S450/S650)	90	Trim Software (OEM)
45	Secondary Balancers	91	Engine Installation Kit (S350)
46	Cylinder Block with Camshaft	92	Engine Test Certificate/Engine Accessories (S350)
47	Crankshaft/Main Bearings	92	Engine Installation Kit (S450)
48	Connecting Rods/Pistons/Liners	93	Emission Label
49	Valve Actuating Mechanism	94	Custom Software
50	Oil Pump	95	Parts Installed at Factory
51	Cylinder Head with Valves	96	Engine Installation Kit/Ship With (S450/S650)
52	Gear Driven Auxiliary Drive	96	ECU Wiring Harness (6125/6135)
53	Fuel Heater	97	Field Installed Items
54	Turbo Air Intake	98	Engine Lift Strap
55	Shipping Stand	99	Service Only Parts

NOTE: This is a complete option code list based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. Your engine will not contain all option codes listed.
