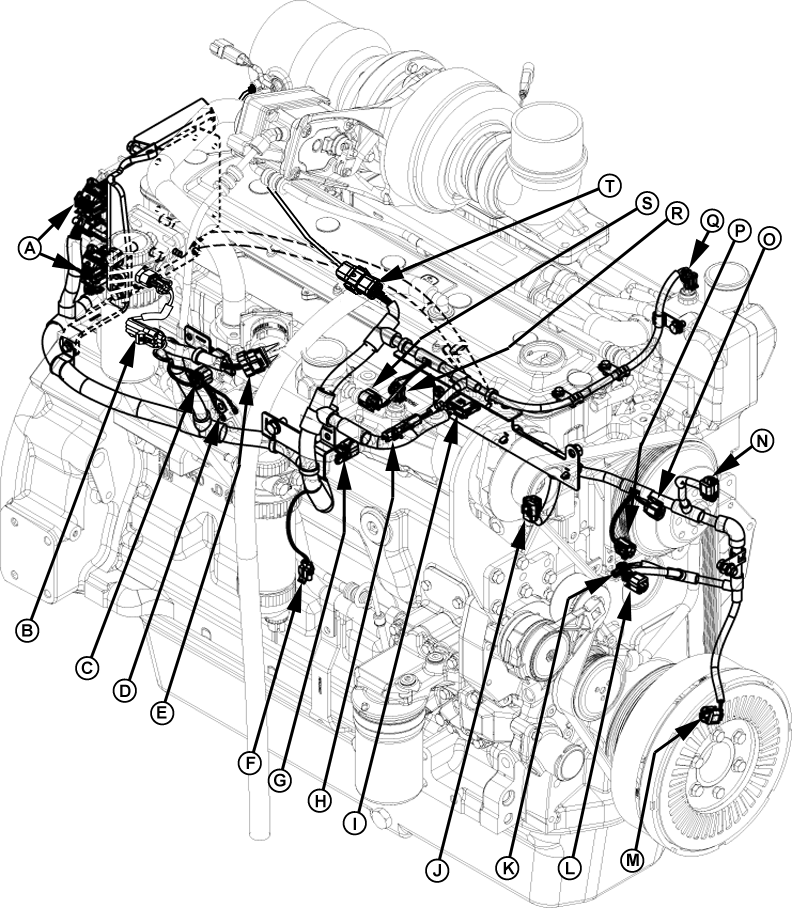

Engine Wiring Layout

RG13862-UN-25JAN05

Engine Wiring Layout

A - Engine Control Unit (ECU) Connector

B - Fuel Pressure Sensor Jumper Connector

C - Exhaust Gas Recirculation (EGR) Exhaust Temperature Sensor Connector

D - Glow Plug Relay Connectors (3)

E - Exhaust Gas Recirculation (EGR) Valve Sensor Connector

F - Water-In-Fuel Sensor Connector

G - Exhaust Gas Recirculation (EGR) Mixed Air Temperature Sensor Connector

H - Alternator Excitation Connector

I - Fuel Injector Connector

J - Rail Pressure Sensor Connector

K - Oil Pressure Sensor Connector

L - Camshaft Position Sensor Connector

M - Crankshaft Speed Sensor Connector

N - Coolant Temperature Sensor Connector

O - Pump Control Valve Connector

P - Fuel Temperature Sensor Connector

Q - Exhaust Pressure Sensor Connector

R - Manifold Air Pressure Sensor Connector

S - Exhaust Gas Recirculation (EGR) Fresh Air Sensor Connector

T - Turbocharger Sensor Jumper Connector
