Checking Crankcase Vent System


Crankcase Vent Tube (If Equipped)

RG13743
RG13743-UN-11NOV04

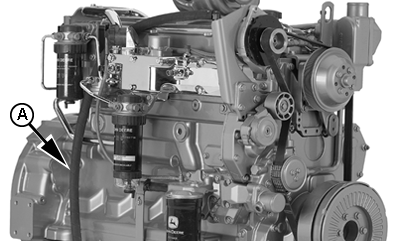

Crankcase Vent Tube

A - Crankcase Vent Tube

If you operate the engine in dusty conditions, check the system at shorter intervals.

  1. If equipped, remove and clean crankcase vent tube (A).

  2. Install the vent tube. Be sure the O-ring fits correctly in the rocker arm cover for elbow adapter. Tighten hose clamp securely.

OURGP12,00000A8-19-20040930
