Auxiliary Gear Drive Limitations

RG7634A-UN-22JAN99

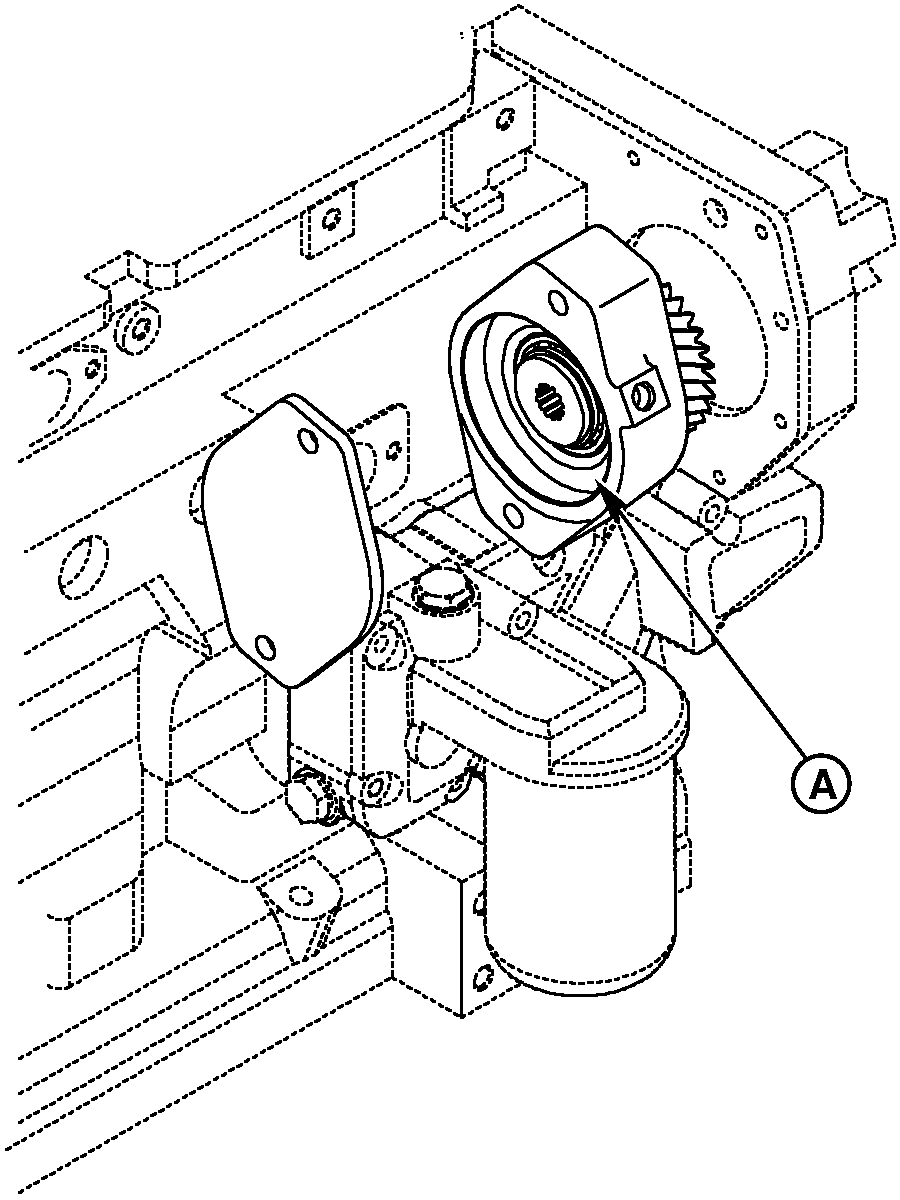

Auxiliary Gear Drive

A - Auxiliary Gear Drive

IMPORTANT: When attaching an air compressor, hydraulic pump, or other accessory to be driven by the auxiliary gear drive (A) (engine timing gear train at front of engine), power requirements of the accessory must be limited to values listed below:

• 30 kW (40 hp) Continuous Operation at 2500 rpm
• 37 kW (50 hp) Intermittent Operation at 2500 rpm
