Changing Engine Oil and Replacing Filter

IMPORTANT:

RG18514-UN-21MAY10

Oil Filter

RG18515-UN-21MAY10

Oil Pan Drain Plug

A - Oil Filter

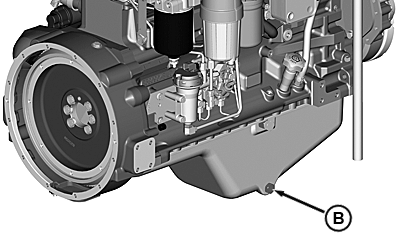

B - Oil Pan Drain Plug

C - Oil Filter Housing

• Engine equipped with an oil pan that allows capacity for this extended drain interval.
• Use of premium oil John Deere Plus-50, API CJ-4, ACEA E9, or ACEA E6.
• Perform engine oil analysis to determine the actual extended service life of API CJ-4, ACEA E9, or ACEA E6 oils.
• Use of the approved John Deere oil filter.
• Use of Ultra Low Sulfur Diesel (ULSD) fuel with sulfur content less than 0.0015% (15 mg/kg) is required.

The oil and filter change interval is reduced if ANY of the above listed requirements are not followed.

NOTE: During the initial operation of a new or rebuilt engine with Break-In Plus, change the oil and filter between a minimum of 100 hours and a maximum of up to 500 hours.

OILSCAN™ or OILSCAN PLUS™ is a John Deere sampling program to help you monitor machine performance and identify potential problems before they cause serious damage. OILSCAN™ and OILSCAN PLUS™ kits are available from your John Deere engine distributor or servicing dealer. Oil samples should be taken prior to the oil change. Refer to instructions provided with kit.

To change engine oil and oil filter:

1. Run engine approximately 5 minutes to warm up oil. Shut engine off.

2. Remove oil pan drain plug (B).

3. Drain crankcase oil from engine while warm.

   NOTE: Drain plug location may vary, depending on the application.

4.
   RG18514-UN-21MAY10

   Oil Filter


   RG18516-UN-21MAY10

   Oil Filter Seals


   RG18517-UN-21MAY10

   Oil Filter Header

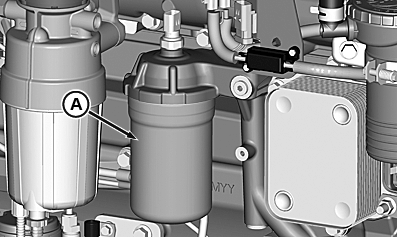

   A - Oil Filter Element

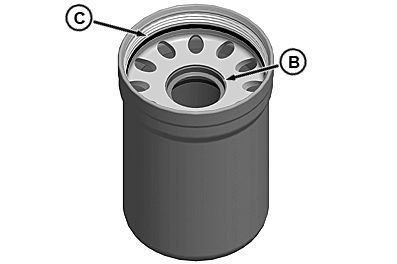

   B - Inner Seal

   C - Outer Seal

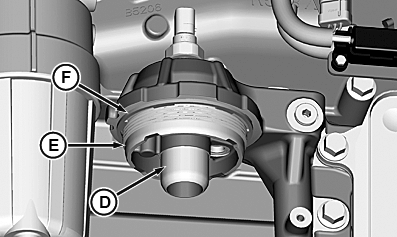

   D - Sealing Surface On Header

   E - Sealing Surface On Header

   F - Dust Seal

   Turn filter element (A) using a suitable filter wrench to remove. Discard oil filter element.

   NOTE: Depending on engine application, oil filter may be located on either side of the engine in a high- or low-mount location.

   IMPORTANT: Filtration of oils is critical to proper lubrication. Always change filter regularly. Use filter meeting John Deere performance specifications.

---




5. Apply clean engine oil to the new filter at the inner (B) and outer (C) seals and to filter threads.

6. Wipe both sealing surfaces of the header (D, E) with a clean rag. Ensure notches in dust seal (F) are properly installed in the slots in the housing. Replace dust seal if damaged.

7. IMPORTANT: When installing filter element, HAND TIGHTEN only. A filter wrench may be used for REMOVAL ONLY. Be sure notches in dust seal (F) are properly installed in the slots in the housing.

   Install and tighten oil filter by hand until firmly against dust seal (F). DO NOT apply an extra 3/4 to 1-1/4 turn after gasket contact as done with standard filters.

8. Tighten drain plug to specifications.

   Item	Measurement	Specification
   Oil Pan Drain Plug for 19BU, 19BV, 19CA, and 19CD,	Torque	50 Nm (37 lb ft)

9.
   RG18512-UN-21MAY10

   Rocker Arm Cover Oil Filler


   RG18610-UN-28MAY10

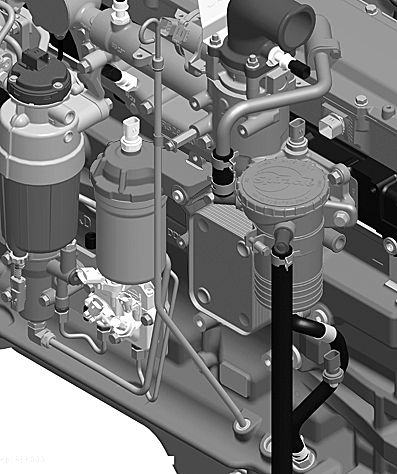

   Oil Dipstick


   RG18611-UN-28MAY10

   Dipstick Oil Level

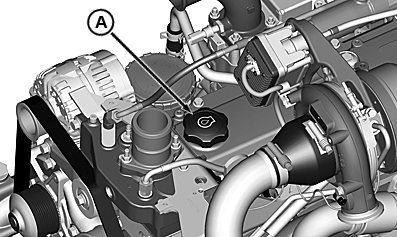

   A - Oil Filler Cap

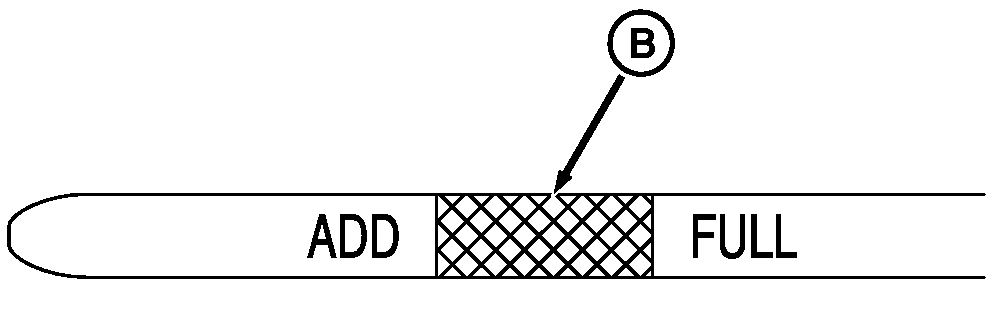

   B - Crosshatch Marks on Dipstick

   Fill engine crankcase with correct John Deere engine oil through rocker arm cover oil filler cap (A) or oil filler cap on either side of engine depending on engine application. (See DIESEL ENGINE OIL in Fuels, Lubricants, and Coolant Section for determining correct engine oil.)

   To determine the correct oil fill quantity for your engine, see ENGINE CRANKCASE OIL FILL QUANTITIES in the Specifications Section of this manual.

---




10. IMPORTANT: Immediately after completing any oil change, crank engine for 30 seconds without permitting engine to start. This will help insure adequate lubrication to engine components before engine starts.

    NOTE: Crankcase oil capacity may vary slightly. ALWAYS fill crankcase within crosshatch marks on dipstick. DO NOT overfill.

    Start engine and run to check for possible leaks.

11. Stop engine and check oil level after 10 minutes. Oil level reading should be within crosshatch marks (B) on dipstick.
