Engine Wiring Diagram Below 130 kW

RG19570
RG19570-UN-14APR11

A - Fuel Injector Harness

A5501 - ECU Harness Connector ECU 1

A5501-6 - [5491 Brown] Injector #1,#2,#3 Power

A5501-8 - [5496 Blue] Injector #4,#5,#6 Power

A5501-9 - [5410 Black] Wiring Shield

A5501-13 - [5497 Violet] Injector #4 Inject Pulse

A5501-14 - [5499 White] Injector #6 Inject Pulse

A5501-18 - [5478 Gray] 5 Volt Sensor Supply #2A Return

A5501-23 - [5494 Yellow] Injector #2 Inject Pulse

A5501-24 - [5498 Gray] Injector #5 Inject Pulse

A5501-29 - [5417 Violet] VGT Speed Return

A5501-32 - [5435 Green] VGT Speed Signal

A5501-33 - [5495 Green] Injector #3 Inject Pulse

A5501-34 - [5493 Orange] Injector #1 Inject Pulse

A5501-37 - [5459 White] 5V Sensor Supply #2B Return

A5501-41 - [5469 White] Low-Pressure Fuel Signal

A5501-49 - [5453 Orange] Water In Fuel Signal

A5501-54 - [5484 Yellow] 5V Sensor Supply #2 Positive

B5107 - Low-Pressure Fuel Pressure Sensor

B5300 - VGT Speed Sensor

B5600 - Water In Fuel Sensor

X5000 - Fuel Injector Harness Connector

X5000-1 - [5497 Gray] Injector #4 Inject Pulse

X5000-2 - [5494 Yellow] Injector #2 Inject Pulse

X5000-3 - [5495 Red] Injector #3 Inject Pulse

X5000-4 - [5493 Blue] Injector #1 Inject Pulse

X5000-5 - [5498 White] Injector #5 Inject Pulse

X5000-6 - [5499 Black] Injector #6 Inject Pulse

X5000-7 - [5496 Brown] Injector #4 & #5 & #6 Power

X5000-8 - [5491 Violet] Injector #1 & #2 & #3 Power


RG19571
RG19571-UN-18JAN11

A5502 - ECU Harness Connector ECU 2

A5502-4 - [5468 Gray] Manifold Air Pressure Signal

A5502-9 - [5463 Orange] EGR Temperature Signal

A5502-19 - [5455 Green] Charge Air Cooler Outlet Temperature Signal

A5502-23 - [5456 Blue] Manifold Air Temperature Signal

A5502-25 - [5446 Blue] 5 Volt Sensor Supply #7A Return

A5502-28 - [5774 Yellow] 5 Volt Sensor Supply #6A Return

A5502-53 - [5441 Brown] 5 Volt Sensor Supply #7 Positive

A5502-54 - [5504 Yellow] Crankcase Pressure Signal

B5104 - Manifold Air Pressure Sensor

B5105 - Crankcase Pressure Sensor

B5205 - Charge Air Cooler Outlet Temperature Sensor

B5206 - Manifold Air Temperature Sensor

B5207 - EGR Temperature Sensor


RG19572
RG19572-UN-18JAN11

A5501 - ECU Harness Connector ECU 1

A5501-5 - [5001 Brown] Low-Pressure Fuel Pump Signal

A5501-16 - [5419 White] Suction Control Valve Low Drive

A5501-17 - [5443 Orange] Camshaft Position Return

A5501-25 - [5016 Blue] Low-Pressure Fuel Pump Return

A5501-30 - [5448 Gray] Crankshaft Position Return

A5501-35 - [5424 Yellow] Suction Control Valve High Drive

A5501-51 - [5447 Violet] Crankshaft Position Signal

A5501-53 - [5445 Green] Camshaft Position Signal

A5502 - ECU Harness Connector ECU 2

A5502-8 - [5475 Green] Fuel Rail Pressure Sensor Signal

A5502-22 - [5946 Blue] 5 Volt Sensor Supply #1 Positive

A5502-26 - [5479 White] 5V Sensor Supply #1A Return

A5502-30 - [5427 Violet] 5 Volt Sensor Supply #1B Return

A5502-40 - [5428 Gray] Fuel Temperature Signal

A5502-48 - [5461 Brown] Engine Coolant Temperature Signal

B5100 - Fuel Rail Pressure Sensor

B5208 - Engine Coolant Temperature Sensor

B5209 - Fuel Temperature Sensor

B5301 - Crankshaft Position Sensor

B5302 - Camshaft Position Sensor

R5602 - 24V Low-Pressure Fuel Pump Resistor

R5602-2 - [5071 Brown] Low-Pressure Fuel Pump Signal

X5010 - High-Pressure Fuel Interconnect

Y5002 - Suction Control Valve

Y5004 - Low-Pressure Fuel Pump


RG19573
RG19573-UN-13OCT10

A5501 - ECU Harness Connector ECU 1

A5501-1 - [5423 Orange] EGR Valve PWM Drive #2

A5501-2 - [5013 Orange] Air Throttle Actuator PWM Drive #1

A5501-3 - [5421 Brown] EGR Valve PWM Drive #1

A5501-4 - [5011 Brown] Air Throttle Actuator PWM Drive #2

A5501-19 - [5444 Yellow] 5V Sensor Supply #3 Return

A5501-27 - [5414 Yellow] 5 Volt Sensor Supply #8 Return

A5501-42 - [5416 Blue] 5 Volt Sensor Supply #8 Positive

A5501-52 - [5466 Blue] 5V Sensor Supply #3 Positive

A5502 - ECU Harness Connector ECU 2

A5502-7 - [5467 Violet] Engine Oil Pressure Signal

A5502-12 - [5509 White] Air Throttle Actuator Signal

A5502-13 - [5051 Brown] EGR Flow Pressure Signal

A5502-18 - [5425 Green] EGR Valve Position Signal

A5502-21 - [5010 Black] Single Point Ground

A5502-52 - [5465 Green] Exhaust Manifold Pressure Signal

B5101 - Engine Oil Pressure Sensor

B5102 - Exhaust Manifold Pressure Sensor

B5103 - EGR Flow Sensor

X5001 - ECU Static Ground

Y5400 - EGR Valve

Y5401 - Air Throttle Actuator


RG19574
RG19574-UN-12JUL11

A - Cold Start Aid

AA - See Diagram 8

A5501 - ECU Harness Connector ECU 1

A5501-10 - [5786 Blue] Exhaust Filter Temperature Module Signal

A5501-15 - [5007 Violet] VGT Actuator Power On Signal

A5501-20 - [5783 Orange] 10V Sensor Supply #9A Positive

A5501-26 - [5004 Yellow] 5V Sensor Supply Return

A5501-31 - [5006 Blue] VGT Actuator Return

A5501-43 - [5805 Green] Engine CAN Low Signal

A5501-44 - [5804 Yellow] Engine CAN High Signal

A5501-45 - [5008 Gray] 10V Sensor Supply #9B Positive

A5501-46 - [5429 White] Cold Start Aid Relay Control

A5502 - ECU Harness Connector ECU 2

A5502-3 - [5785 Green] DPF Differential Pressure Signal

A5502-31 - [5474 Yellow] 5 Volt Sensor Supply #6B Return

A5502-41 - [5437 Violet] 5 Volt Sensor Supply #6 Positive

A5502-42 - [5009 White] Engine Coolant Pressure Signal

A5502-49 - [5413 Orange] Cold Start Aid Relay Feedback

B - Chassis Ground

BB - See Diagram 8 For Mating Connector

B5108 - Engine Coolant Pressure Sensor

B5500 - Intake Air Sensor

C - 1.5 kilo-ohm 1 Watt Resistor

CC - See Diagram 8 For Mating Connector

F5005 - Fuse (50Amp)

K5803 - Cold Start Aid Relay Connector

K5803-5 - [5082 Red] Unswitched Battery

X5002 - Auxiliary Harness Interconnect

X5002-1 - [5412 Red] Alternator Excitation

X5002-7 - [5474 Yellow] 5V Sensor Supply #6B Return

X5002-8 - [5785 Green] DPF Differential Pressure Signal

X5002-9 - [5437 Violet] 5 Volt Sensor Supply #6 Positive

X5002-11 - [5050 Black] Battery Negative

X5004 - Cold Start Aid Interface Interconnect

Y5500 - VGT Actuator


RG19575
RG19575-UN-12JUL11

A5503 - ECU Harness Connector ECU3

A5503-1 - [5905 Green] CAN Low

A5503-2 - [5904 Yellow] CAN High

A5503-3 - [5024 Yellow] Remote Throttle

A5503-4 - [5044 Yellow] Wait To Start Lamp

A5503-5 - [5473 Orange] Stop Engine Lamp

A5503-6 - [5916 Blue] Warning Lamp

A5503-7 - [5012 Red] Key On

A5503-8 - [5981 Brown] PWM Throttle

A5503-9 - [5913 Orange] Secondary Analog Throttle

A5503-10 - [5915 Green] Primary Analog Throttle

A5503-11 - [5954 Yellow] Cruise On

A5503-12 - [5943 Orange] Cruise Brake

A5503-19 - [5027 Purple] PTO Speed

A5503-20 - [5436 Blue] Spare Analog Input

A5503-21 - [5020 Black] CAN Shield

A5503-22 - [5936 Blue] Cruise Coast/Bump Down

A5503-27 - [5050 Black] Battery Negative

A5503-28 - [5911 Brown] 5 Volt Sensor Supply #5 Positive

A5503-31 - [5948 Gray] Loss of Coolant Switch

A5503-32 - [5955 Green] Set Accelerator/Bump Up

A5503-33 - [5814 Yellow] 5 Volt Sensor Supply #4 Return

A5503-34 - [5714 Yellow] 5 Volt Sensor Supply #5 Return

A5503-35 - [5439 White] Tachometer

A5503-36 - [5039 White] Vehicle Speed

A5503-37 - [5947 Violet] Multi-State Throttle

A5503-38 - [5917 Violet] Cruise Remote

A5503-39 - [5971 Brown] Cruise Cancel/Resume

A5503-42 - [5939 White] External Derate Switch

A5503-43 - [5050 Black] Battery Negative

A5503-44 - [5050 Black] Battery Negative

A5503-45 - [5036 Blue] Spare Analog Input

A5503-46 - [5017 Violet] Spare Analog Input

A5503-47 - [5937 Violet] Isochronous Governor

A5503-48 - [5015 Green] Spare Driver Positive

A5503-49 - [5616 Blue] 5 Volt Sensor Supply #4 Positive

A5503-51 - [5941 Brown] External Shutdown Switch

A5503-53 - [5923 Orange] Bump Enable

A5503-54 - [5918 Gray] Shutdown Override

DD - See Diagram 7

EE - See Diagram 8

FF - See Diagram 7,8

GG - See Diagram 8

HH - See Diagram 7

II - See Diagram 7,8

JJ - See Diagram 7

KK - See Diagram 7

LL - See Diagram 7

MM - See Diagram 10 For Mating Connector

NN - See Diagram 9 For Mating Connector

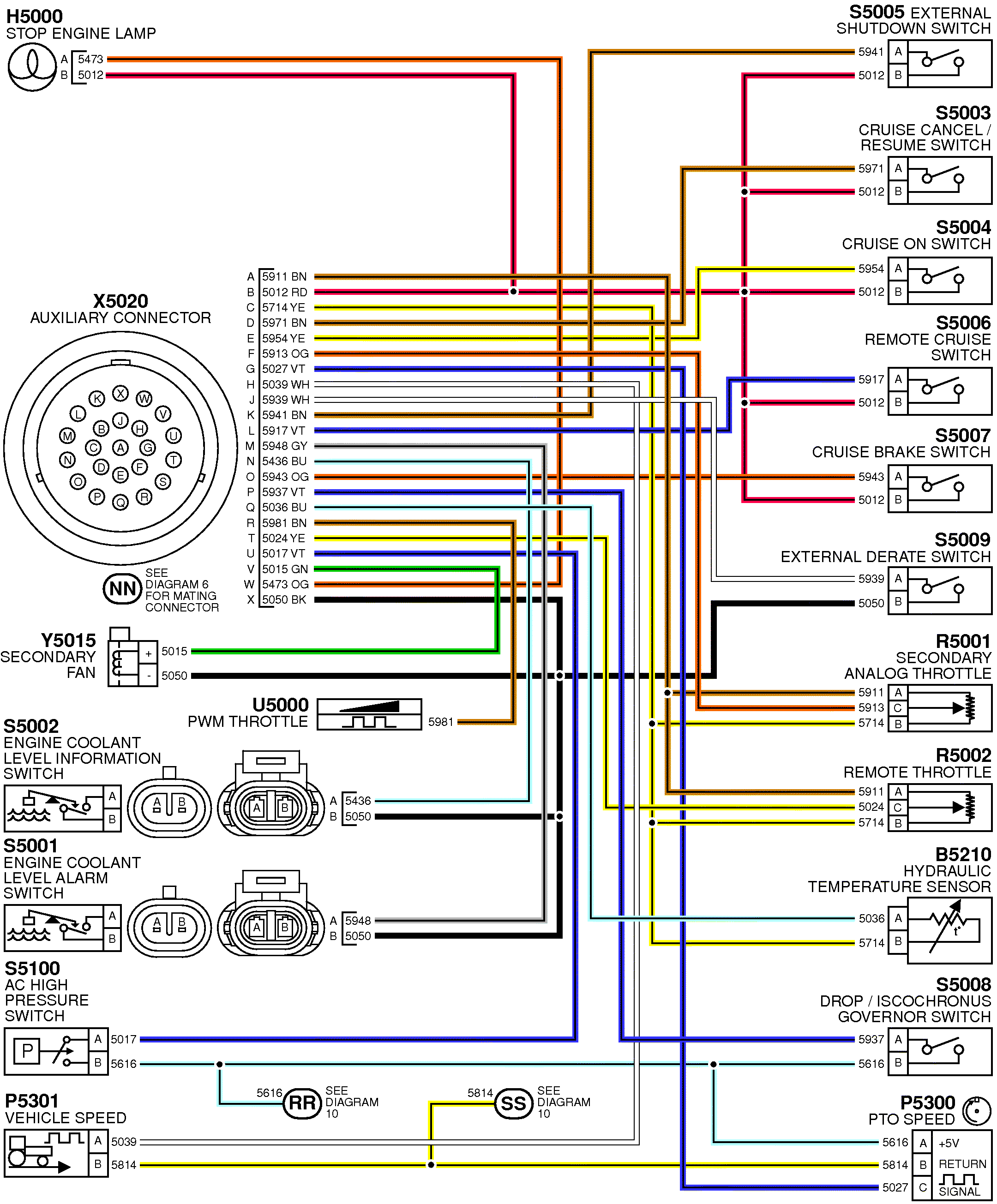

X5020 - Auxiliary Connector

X5021 - Control Panel Connector

X5021-B - [5032 Red] Fused Unswitched Power

X5021-D - [5422 Red] Start

X5021-J - [5412 Red] Alternator Excitation


RG19576
RG19576-UN-13OCT10

A5503 - ECU Harness Connector ECU3

A5503-1 - [5905 Green] CAN Low

A5503-2 - [5904 Yellow] CAN High

A5503-15 - [5018 Gray] Variable Fan Speed Clutch Control

A5503-16 - [5025 Green] Exhaust Temperature High Lamp

A5503-17 - [5026 Blue] DPF Regen Required Lamp

A5503-18 - [5019 White] Variable Fan Speed Signal

A5503-21 - [5020 Black] CAN Shield

A5503-25 - [5028 Gray] Spare Driver Positive

A5503-26 - [5029 White] DPF Regen Request Lamp

A5503-27 - [5050 Black] Battery Negative

A5503-30 - [5034 Yellow] Starter Relay Option

A5503-33 - [5814 Yellow] 5 Volt Sensor Supply #4 Return

A5503-40 - [5038 Gray] DPF Regen Request

A5503-41 - [5037 Violet] DPF Regen Inhibit/Abort

A5503-43 - [5050 Black] Battery Negative

A5503-44 - [5050 Black] Battery Negative

A5503-49 - [5616 Blue] 5 Volt Sensor Supply #4 Positive

A5503-50 - [5047 Violet] Spare Driver Positive

A5503-52 - [5041 Brown] DPF Regen Inhibit/Abort Lamp

DD - See Diagram 6

FF - See Diagram 6, 8

HH - See Diagram 6

II - See Diagram 6, 8

JJ - See Diagram 6

KK - See Diagram 6

LL - See Diagram 6

OO - See Diagram 8

PP - See Diagram 8

QQ - See Diagram 11 For Mating Connector

R5601 - CAN Terminator

X5005 - Diagnostic Connector

X5022 - Regeneration Connector

X5022-1 - [5002 Red] Unswitched Battery

X5025 - JD Link Connector

X5025-F - [5092 Red] JD Link Unswitched Power

X5025-G - [5412 Red] Alternator Excitation

Y5005 - Variable Speed Fan


RG19577
RG19577-UN-12JUL11

A - IGN

AA - See Diagram 5

A5503 - ECU Harness Connector ECU3

A5503-13 - [5022 Red] Unswitched Battery

A5503-14 - [5022 Red] Unswitched Battery

A5503-23 - [5022 Red] Unswitched Battery

A5503-24 - [5022 Red] Unswitched Battery

A5503-27 - [5050 Black] Battery Negative

A5503-43 - [5050 Black] Battery Negative

A5503-44 - [5050 Black] Battery Negative

B - Output

BB - See Diagram 5 for Mating Connector

B1 - Battery (12V or 24V)

B5109 - DPF Differential Pressure Sensor

B5204 - Exhaust Filter Temperature Module

C - Fuse Not Used

CC - See Diagram 5 for Mating Connector

EE - See Diagram 6

FF - See Diagram 6,7

F5000 - Unswitched Battery Fuse (30A)

F5000-A - [5002 Red] Unswitched Battery

F5000-B - [5082 Red] Unswitched Battery

F5001 - ECU Power Fuse (40A)

F5004 - JD Link Fuse (10A)

F5004-A - JD Link Unswitched Power

GG - See Diagram 6

G1 - Alternator (12V or 24V)

II - See Diagram 6,7

M1 - Starter (12V or 24V)

OO - See Diagram 7

PP - See Diagram 7

V5700 - Transient Voltage Protector

X5002 - Auxiliary Connector

X5002-1 - [5412 Red] Alternator Excitation

X5002-2 - [5060 Black] Battery Negative

X5002-3 - [5062 Red]

X5002-4 - [5042 Red]

X5002-5 - [5786 Blue] Exhaust Filter Temperature Module Signal

X5002-6 - [5783 Orange] 10V Sensor Supply #9A Positive

X5002-7 - [5474 Yellow] 5 Volt Sensor Supply #6B Return

X5002-8 - [5785 Green] DPF Differential Pressure Signal

X5002-9 - [5437 Violet] 5 Volt Sensor Supply #6 Positive

X5002-10 - [5040 Black] Battery Negative

X5002-11 - [5050 Black] Battery Negative

X5007 - Remote On/Off

X5007-B - [5032 Red] Fused Unswitched Power

X5008 - Single Point Ground

X5800 - Starter Relay Coil (Power)

X5801 - Starter Relay Coil (Ground)


RG19578
RG19578-UN-13OCT10

B5210 - Hydraulic Temperature Sensor

H5000 - Stop Engine Lamp

NN - See Diagram 6 for Mating Connector

P5300 - PTO Speed

P5301 - Vehicle Speed

RR - See Diagram 10

R5001 - Secondary Analog Throttle

R5002 - Remote Throttle

SS - See Diagram 10

S5001 - Engine Coolant Level Alarm Switch

S5002 - Engine Coolant Information Switch

S5003 - Cruise Cancel/Resume Switch

S5004 - Cruise On Switch

S5005 - External Shutdown Switch

S5006 - Remote Cruise Switch

S5007 - Cruise Brake Switch

S5008 - Drop/Isochronous Governor Switch

S5009 - External Derate Switch

S5100 - AC High Pressure Switch

U5000 - PWM Throttle

X5020 - Auxiliary Connector

X5020-A - [5911 Brown] 5 Volt Sensor Supply #5 Positive

X5020-B - [5012 Red] Key On

X5020-C - [5714 Yellow] 5 Volt Sensor Supply #5 Return

X5020-D - [5971 Brown] Cruise Cancel/Resume

X5020-E - [5954 Yellow] Cruise On

X5020-F - [5913 Orange] Secondary Analog Throttle

X5020-G - [5027 Violet] PTO Speed

X5020-H - [5039 White] Vehicle Speed

X5020-J - [5939 White] External Derate Switch

X5020-K - [5941 Brown] External Shutdown Switch

X5020-L - [5917 Violet] Cruise Remote

X5020-M - [5948 Gray] Loss of Coolant Switch

X5020-N - [5436 Blue] Spare Analog Input

X5020-O - [5943 Orange] Cruise Brake

X5020-P - [5937 Violet] Isochronous Governor

X5020-Q - [5036 Blue] Spare Analog Input

X5020-R - [5981 Brown] PWM Throttle

X5020-T - [5024 Yellow] Remote Throttle

X5020-U - [5017 Violet] Spare Analog Input

X5020-V - [5015 Green] Spare Driver Positive

X5020-W - [5473 Orange] Stop Engine Lamp

X5020-X - [5050 Black] Battery Negative

Y5015 - Secondary Fan Solenoid


RG19579
RG19579-UN-01AUG11

A - Wire Colors For Gauges May Vary

A5504 - Diagnostic Gauge

A5504-1 - [Red] Voltage Positive

A5504-3 - [White] Data Positive

A5504-4 - [Orange] Data Negative

A5504-6 - [Black] Single Point Ground

B - Start

C - Battery

D - Run

E - Accessory

H5001 - Waiting to Start Lamp

H5002 - Warning Lamp

MM - See Diagram 6 for Mating Connector

P5000 - Tachometer

P5001 - Optional Gauge 1

P5002 - Optional Gauge 2

P5003 - Auxiliary Tachometer

P5100 - Oil Pressure Gauge

P5200 - Coolant Temperature Gauge

RR - See Diagram 9

R5000 - Primary Analog Throttle

R5003 - Digital Throttle

SS - See Diagram 9

S5000 - Key Switch

S5010 - Shutdown Override Switch

S5012 - Speed Select Switch

S5013 - Bump Enable Switch

X5021 - Control Panel Connector

X5021-A - [5044 Yellow] Wait to Start Lamp

X5021-B - [5032 Red] Fused Unswitched Power

X5021-C - [5814 Yellow] 5 Volt Sensor Supply #4 Return

X5021-D - [5422 Red] Start

X5021-E - [5050 Black] Battery Negative

X5021-F - [5020 Black] CAN Shield

X5021-G - [5012 Red] Key On

X5021-H - [5916 Blue] Warning Lamp

X5021-J - [5412 Red] Alternator Excitation

X5021-K - [5439 White] Tachometer

X5021-L - [5915 Green] Primary Analog Throttle

X5021-M - [5616 Blue] 5 Volt Sensor Supply #4 Positive

X5021-N - [5918 Gray] Shutdown Override

X5021-P - [5714 Yellow] 5 Volt Sensor Supply #5 Return

X5021-R - [5947 Violet] Multi-State Throttle

X5021-S - [5714 Yellow] 5 Volt Sensor Supply #5 Return

X5021-T - [5936 Blue] Cruise/Coast Bump Down

X5021-U - [5905 Green] CAN Low

X5021-V - [5904 Yellow] CAN High

X5021-W - [5955 Green] Set Accelerator/Bump Up

X5021-X - [5923 Orange] Bump Enable


RG19580
RG19580-UN-13OCT10

H5003 - DPF Regeneration Required Lamp

H5004 - DPF Regeneration Request Lamp

H5005 - DPF Regeneration Inhibit/Abort Lamp

H5200 - Exhaust Temperature High Lamp

K5801 - Starter Relay (Application Specific)

K5802 - Steer By Wire Relay (Application Specific)

QQ - See Engine Schematic 7 For Mating Connector

S5014 - Aftertreatment Interface Switch

X5022 - Regeneration Connector

X5022-1 - [5002 Red] Unswitched Battery

X5022-2 - [5050 Black] Battery Negative

X5022-4 - [5025 Green] Exhaust Temperature High Lamp

X5022-5 - [5026 Blue] DPF Regeneration Required Lamp

X5022-6 - [5028 Gray] Spare Driver Positive

X5022-7 - [5029 White] DPF Regeneration Request Lamp

X5022-8 - [5034 Yellow] Starter Relay Option

X5022-9 - [5038 Gray] DPF Regeneration Request

X5022-10 - [5037 Violet] DPF Regeneration Inhibit/Abort

X5022-11 - [5047 Violet] Spare Driver Positive

X5022-12 - [5041 Brown] DPF Regeneration Inhibit/Abort Lamp

Y5016 - AC Solenoid (Application Specific)

Y5017 - Starter Solenoid (Application Specific)


JR74534,00002F2-19-20110107
