Engine Wiring Layout and Sensor Location Below 130 kW

RG19592-UN-20OCT10

Sensor Location 1

A - EGR Temperature Sensor

B - Cold Start Aid Relay

C - Engine Coolant Pressure Sensor

D - Manifold Air Temperature Sensor

E - EGR Valve

RG19593-UN-20OCT10

Sensor Location 2

A - Charge Air Cooler Outlet Air Temperature Sensor

B - Intake Air Sensor

C - Engine Coolant Temperature Sensor

D - Crankshaft Position Sensor

E - Suction Control Valve

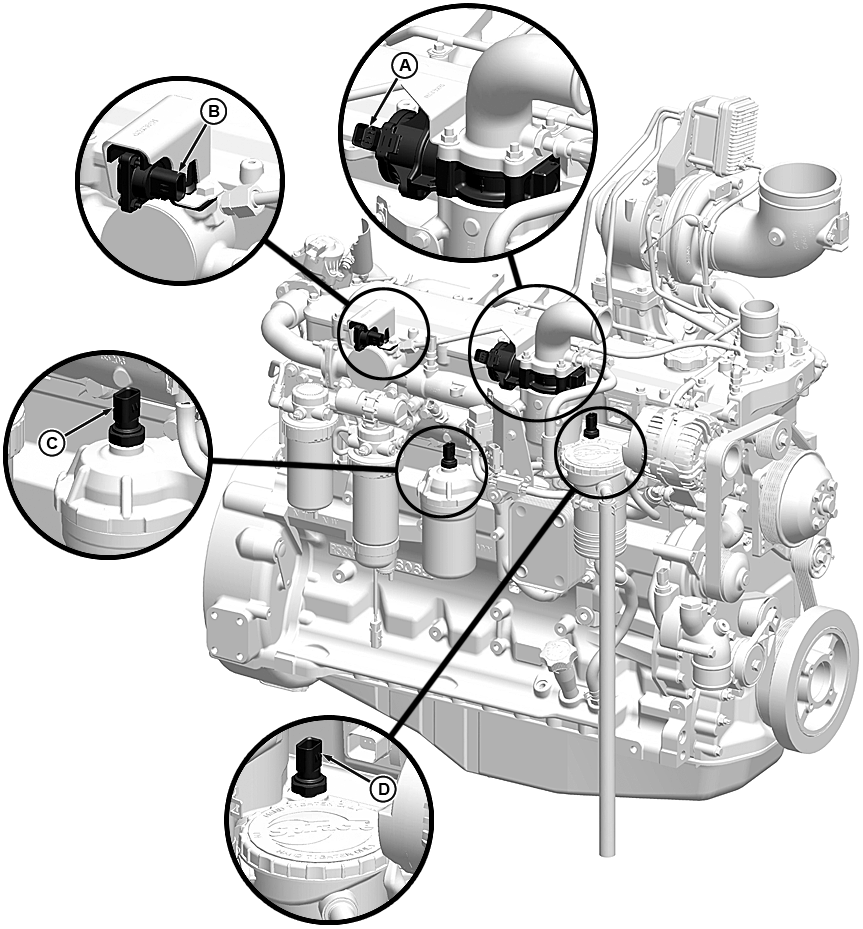

RG19594-UN-20OCT10

Sensor Location 3

A - Air Throttle Actuator

B - EGR Flow Sensor

C - Engine Oil Pressure Sensor

D - Manifold Air Pressure Sensor

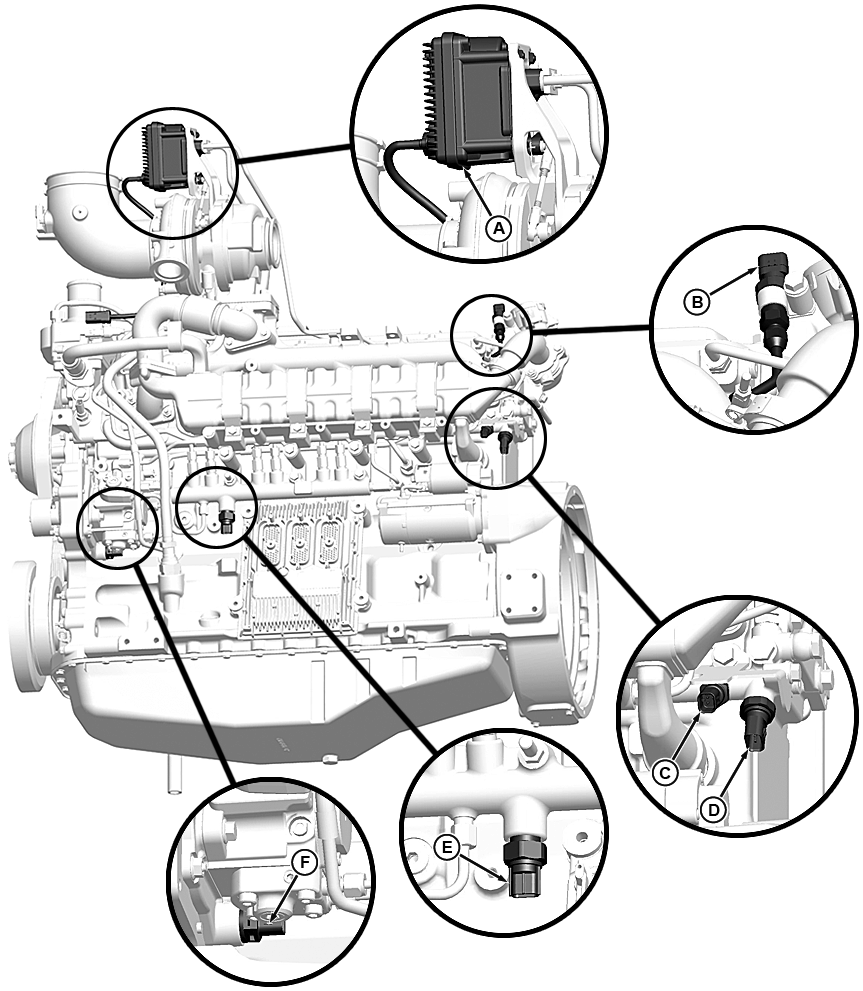

RG19595-UN-20OCT10

Sensor Location 4

A - VGT Actuator

B - Exhaust Manifold Pressure Sensor

C - Fuel Temperature Sensor

D - Low-Pressure Fuel Pressure Sensor

E - Fuel Rail Pressure Sensor

F - Camshaft Position Sensor

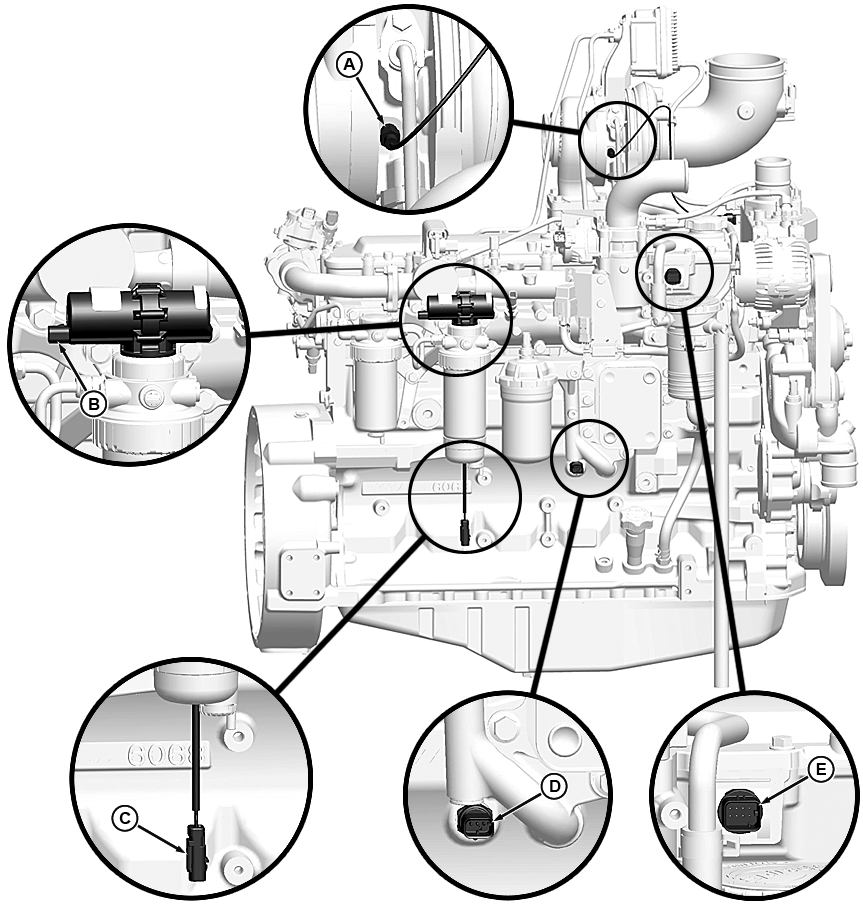

RG19596-UN-20OCT10

Sensor Location 5

A - VGT Speed Sensor

B - Low-Pressure Fuel Pump

C - Water-In-Fuel Sensor

D - Crankcase Pressure Sensor

E - Fuel Injector Harness Connector
