Restarting Engine After Emergency Shutdown

RG13738-UN-11NOV04

Restarting the Engine

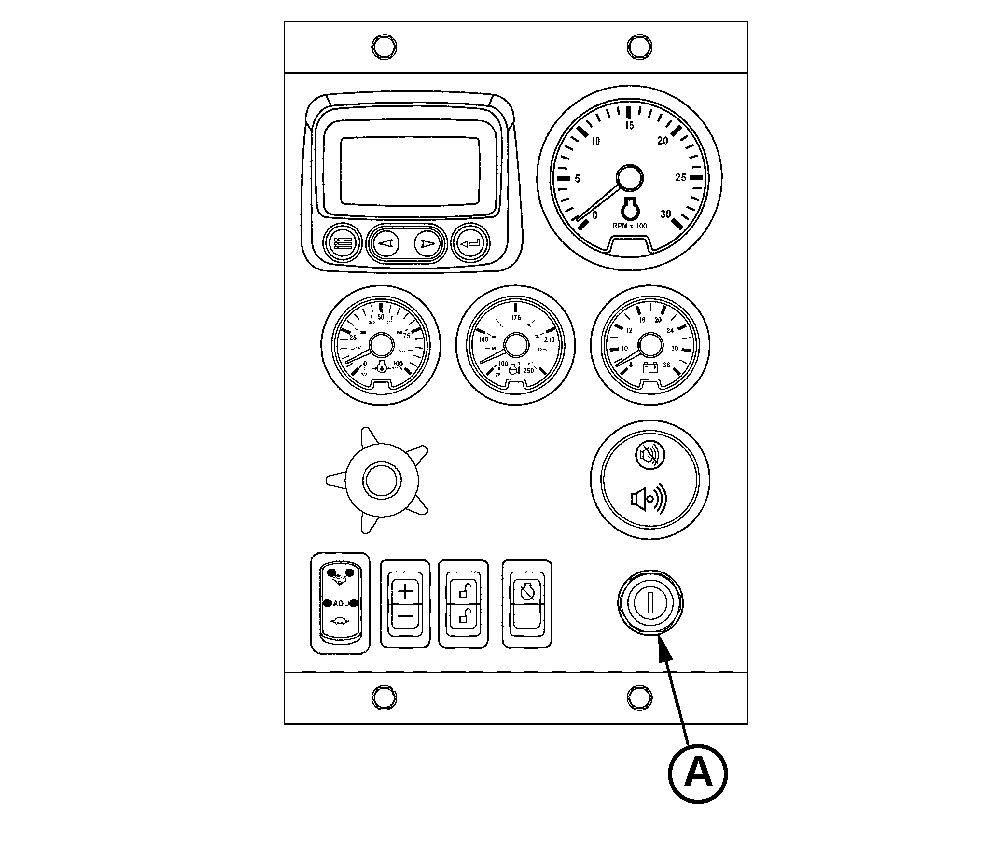

A - Key Start Switch

In the event of an emergency engine shutdown, the following procedures are required to restart the engine.

1. Correct the condition causing the emergency shutdown.

2. Perform initial restarting procedures, as required. See STARTING THE ENGINE, steps 1 through 4, earlier in this section.

3. NOTE: For ALL emergency shutdowns, the controller must be reset before the engine can be restarted.

   To restart the controller, cycle the key start switch (A) as follows:

   1. Turn key switch OFF.

   2. Wait 15 seconds.

   3. Turn key switch clockwise to crank the engine.

4. Perform final restarting procedures, as required. See STARTING THE ENGINE, steps 6 and 7, earlier in this section.
