Record Aftertreatment Serial Numbers

RG20010-UN-11FEB11

RG24024-UN-05AUG13

Serial Number Plates for Aftertreatment

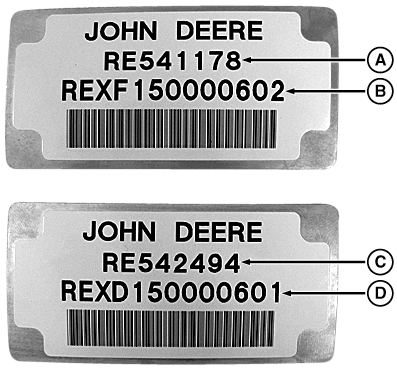

A - Diesel Particulate Filter Part Number

B - Diesel Particulate Filter Serial Number

C - Diesel Oxidation Catalyst Part Number

D - Diesel Oxidation Catalyst Serial Number

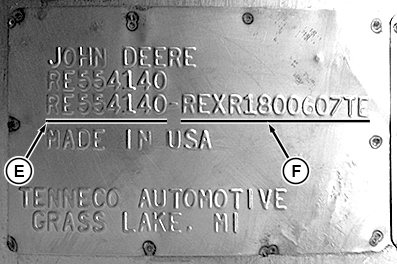

E - Selective Catalyst Reduction Part Number

F - Selective Catalyst Reduction Serial Number

Record numbers from equipped aftertreatment devices as shown on DPF (A and B), DOC (C and D), and SCR (E and F) serial number plates. Having these numbers recorded and kept in a safe location can aid in part ordering and assist in locating stolen items in case of theft.

DPF Part Number.

DPF Serial Number.

DOC Part Number.

DOC Serial Number.

SCR Part Number.

SCR Serial Number.
