Visually Inspecting Coolant Pump

1.

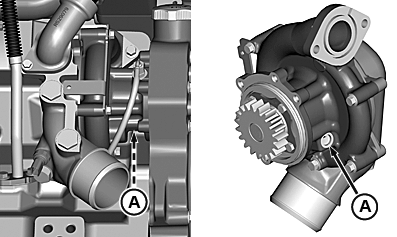

   RG18080-UN-25FEB10

   Coolant Pump Weep Hole

   A - Weep Hole

   Remove foam filter (if equipped) from coolant pump weep hole (A) as shown.

---




2. Inspect weep hole for oil or coolant leakage.

   • Oil leakage indicates a damaged rear seal.
   • Coolant leakage indicates a damaged front seal.



   A slight weeping of oil or coolant is normal. If enough oil or coolant leaks from the weep hole that it drips from the engine, the coolant pump assembly should be repaired or replaced.
