DEF Tank Inlet Screen — Removal

CAUTION: Avoid possible personal injury. In case of DEF contact, immediately flush eyes with large amounts of water for a minimum of 15 minutes. Reference the Materials Safety Data Sheet (MSDS) for additional information.

Do not ingest DEF. In the event DEF is ingested, contact a physician immediately. Reference the Materials Safety Data Sheet (MSDS) for additional information.

IMPORTANT: Avoid corrosion of vehicle parts or surfaces. If DEF is spilled or contacts any surface other than the storage tank, immediately clean the surface with clear water. DEF is corrosive to painted and unpainted metallic surfaces and can distort some plastic and rubber components.

Spilled DEF, if left to dry or if only wiped away with a cloth, will leave a white residue. Improperly cleaned DEF spill may interfere with diagnosis of Selective Catalytic Reduction (SCR) system leakage problems.

1. Thoroughly clean the area around the DEF tank inlet of any debris or contaminants.

2. Remove DEF tank cap.

3. Insert screwdrivers (A) at each tab location (B).

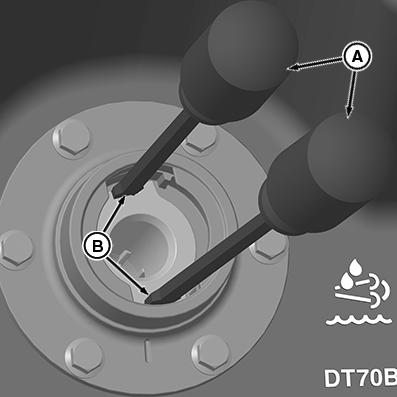

   RG31989-UN-09DEC19

   DEF Tank Inlet Screen Removal

   A - Screwdriver (2 used)

   B - Locking Tab (2 used)

---




4. Gently push screwdrivers (A) towards DEF tank fill hole.

5.

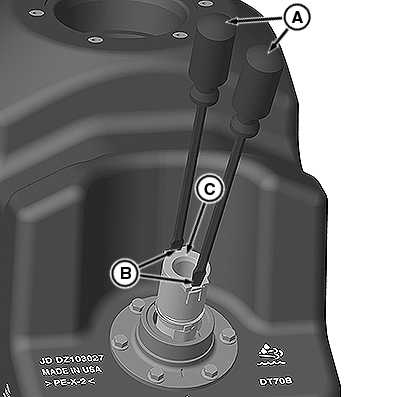

   RG31990-UN-09DEC19

   DEF Tank Inlet Screen Removal

   A - Screwdriver (2 used)

   B - Locking Tab (2 used)

   C - DEF Tank Inlet Screen

   While pushing locking tabs (B) towards DEF tank fill hole, pull screwdrivers upward to remove DEF tank inlet screen (C).

---




6. Inspect the DEF tank inlet screen (C) for damage or missing pieces.

7. If any damage or missing pieces are identified then the DEF tank must be drained and thoroughly clean of debris.

8. Clean or replace DEF tank inlet screen as required.
