Changing Engine Speed

RG23644-UN-27AUG13

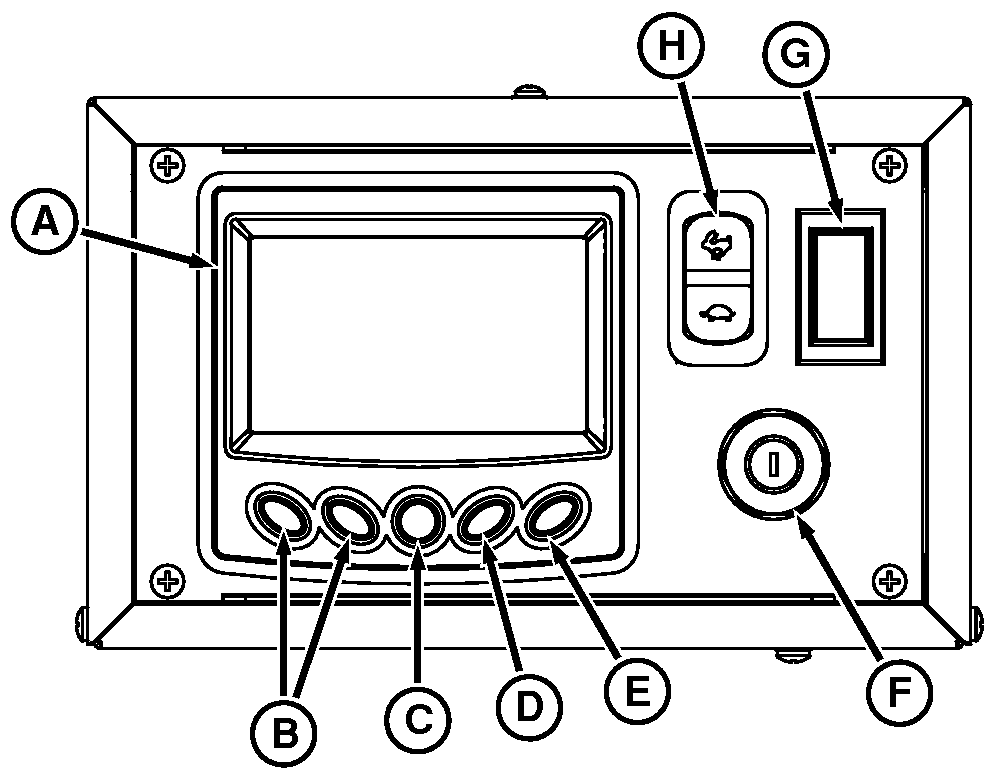

Instrument Panel

A - Diagnostic Gauge

B - Arrow Key (2 used)

C - Menu Key

D - Select Key

E - Exit Key

F - Key Switch

G - Cover

H - Speed Select Rocker Switch

NOTE: On engines with 2-position throttles, speeds are not adjustable. These throttles allow operation only at the preset rated speed or at idle using the single switch.

• For slow speed, press lower half of speed select rocker switch (H) (indicated by turtle symbol).
• For fast speed, press upper half of speed select rocker switch (H) (indicated by rabbit symbol).
• Navigate the diagnostic gauge (A) to appropriate home screen. Adjust engine Set Speeds with arrow keys (B).
