Electrical System Layout

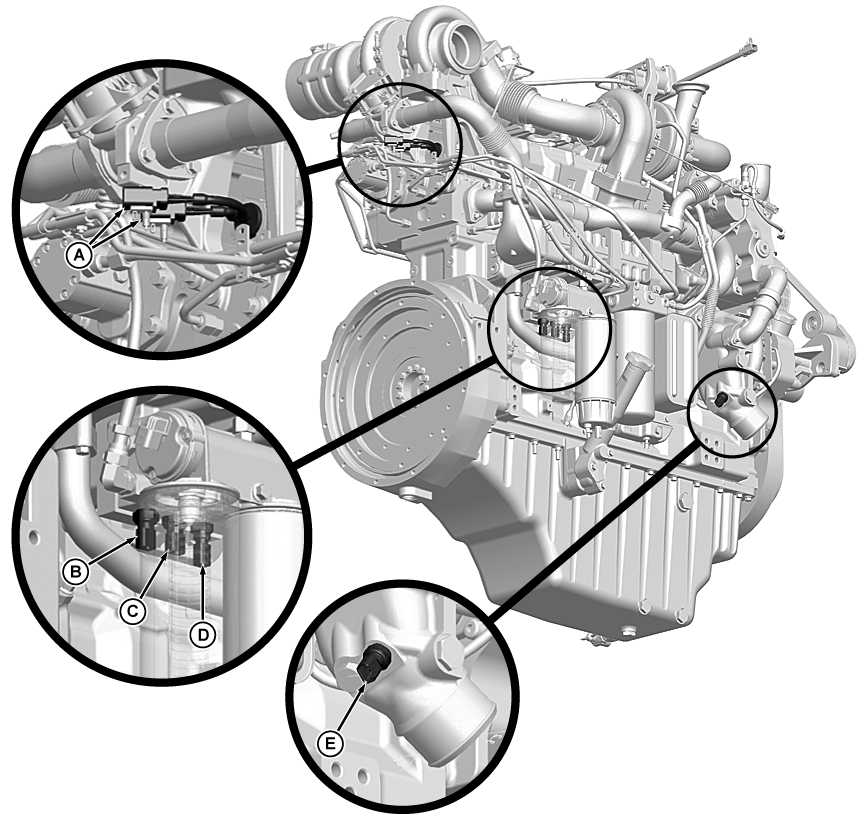

RG23201-UN-24MAY13

Right Rear

A - Fuel Injector Wiring Harness Connector

B - Low-Pressure Fuel Pressure Sensor

C - High-Pressure Fuel Pressure Sensor

D - Fuel Temperature Sensor

E - Engine Coolant Pressure Sensor

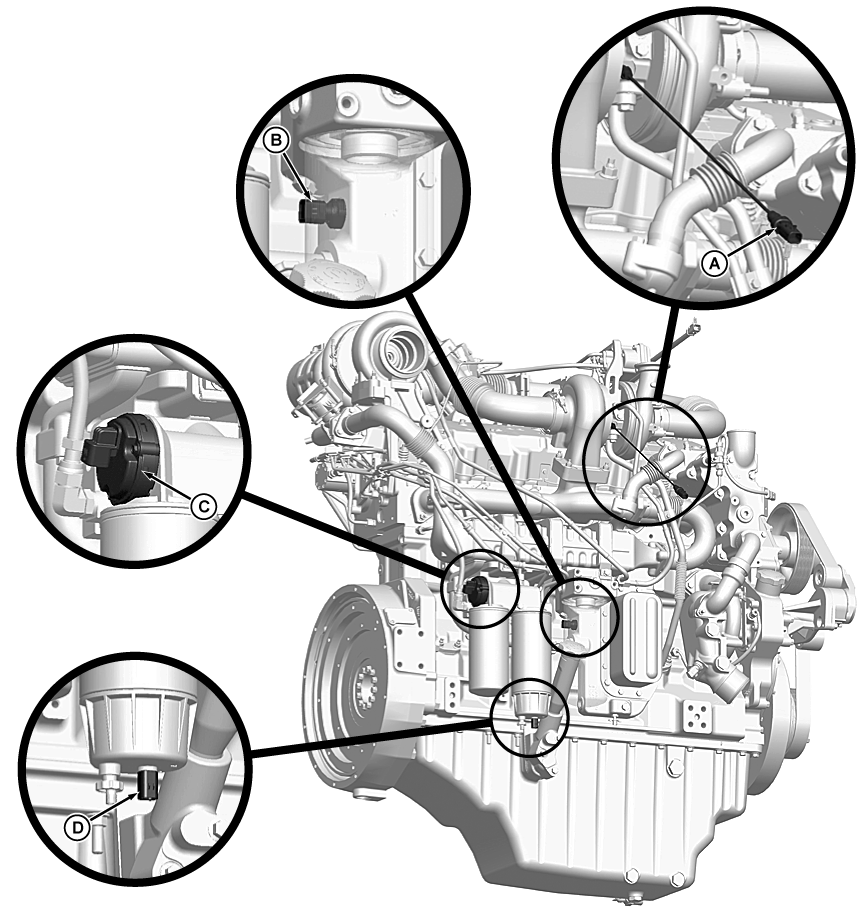

RG23202-UN-24MAY13

Right

A - VGT Speed Sensor

B - Engine Oil Pressure Sensor

C - Low-Pressure Fuel Pump

D - Water-in-Fuel Sensor

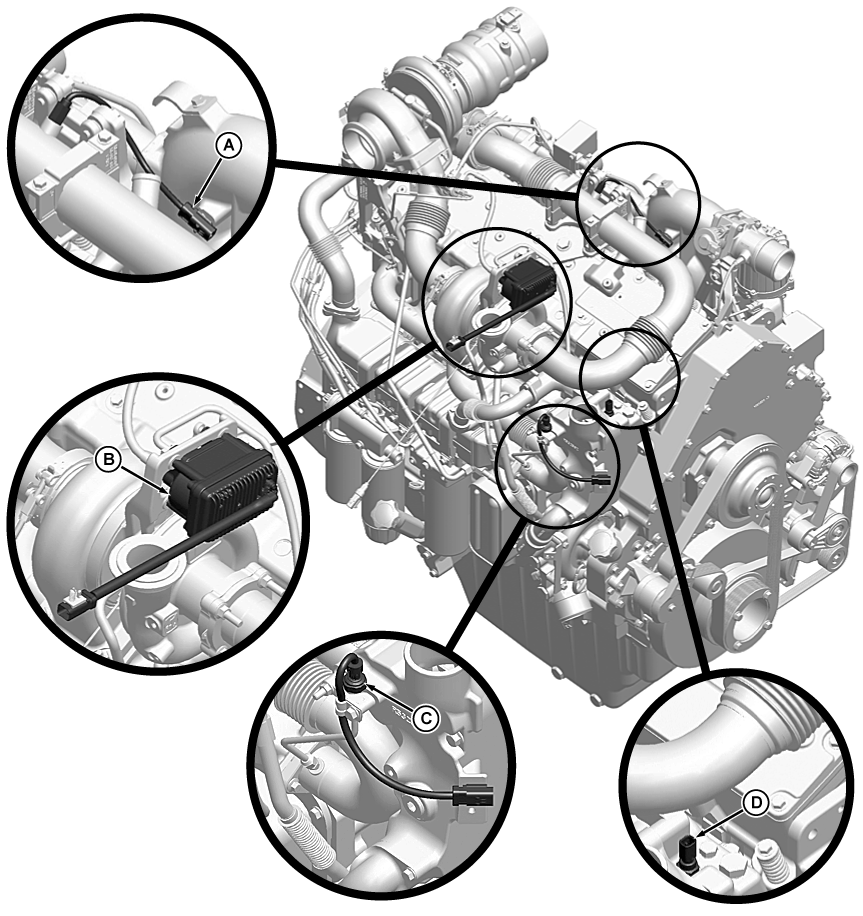

RG23200-UN-24MAY13

Right Front

A - Fixed Turbocharger Compressor Outlet Temperature Sensor

B - VGT Actuator

C - Exhaust Manifold Pressure Sensor

D - Engine Coolant Temperature Sensor

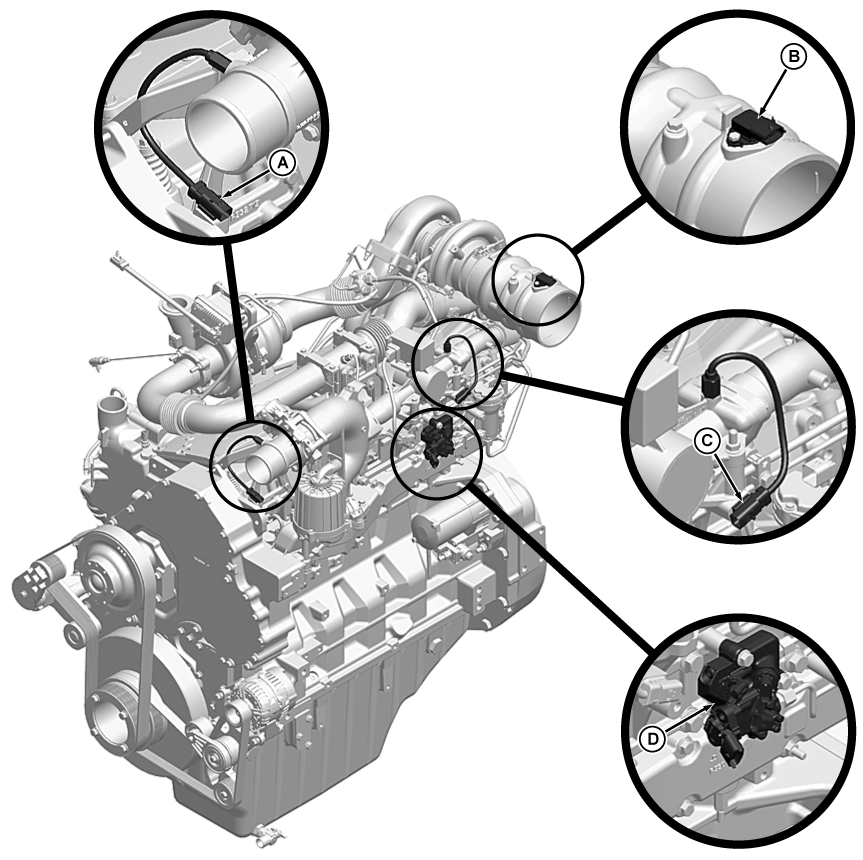

RG23198-UN-24MAY13

Left Front Upper

A - Charge Air Cooler Outlet Air Temperature Sensor

B - Intake Air Sensor

C - EGR Temperature Sensor

D - Fuel Dosing Unit

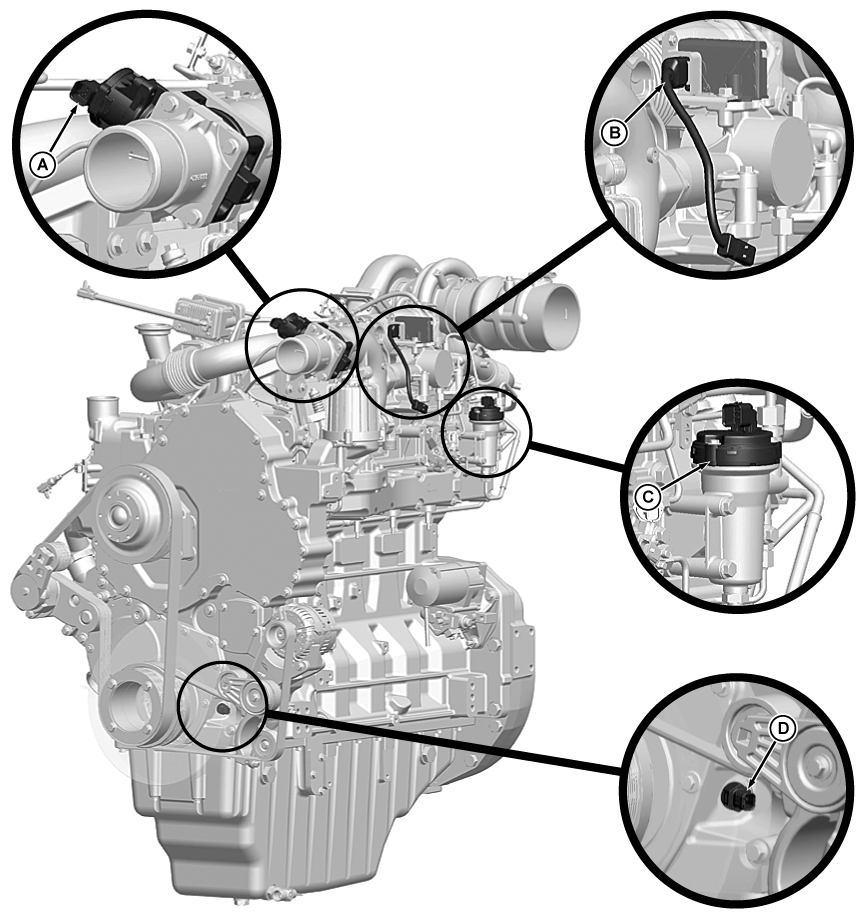

RG23193-UN-24MAY13

Left Front

A - Air Throttle Actuator

B - EGR Flow Sensor

C - Fuel Dosing Pump

D - Crankshaft Position Sensor

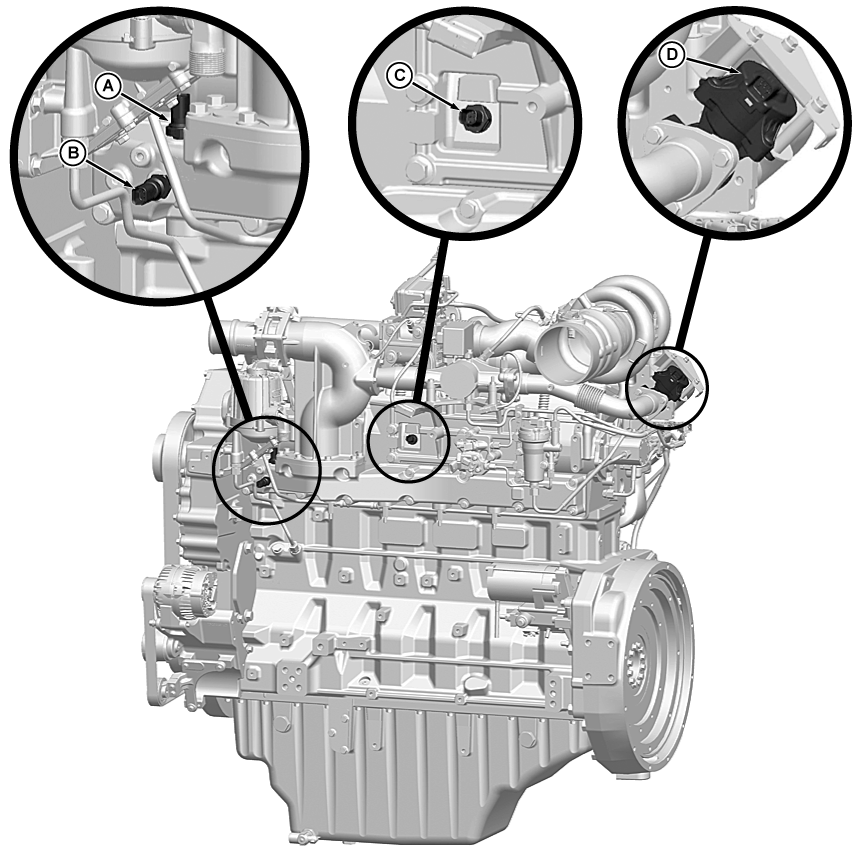

RG23199-UN-24MAY13

Left

A - Manifold Air Pressure (MAP) Sensor

B - Manifold Air Temperature (MAT) Sensor

C - Camshaft Position Sensor

D - EGR Valve
