Defrost Windshield

1.
   LV8596-UN-14AUG03


   LV10324-UN-21SEP04

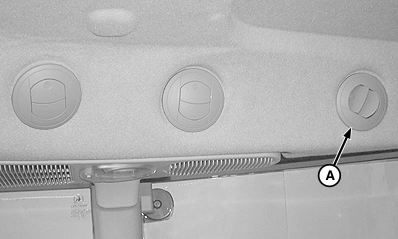

   A - Front Vent

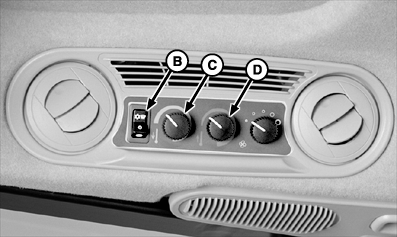

   B - Defrost Switch

   C - Air Conditioner Temperature Control Knob

   D - Heater Temperature Control Knob

   Aim two front vents (A) toward windshield.

---




2. NOTE: Closing middle and rear vents helps clear windshield faster.

   Press top half of defrost switch (B) and turn air conditioner temperature control knob (C) to full counterclockwise position.

3. Turn heater temperature control knob (D) clockwise to obtain desired temperature.
