Cold Weather Start Aid

NOTE: Hydraulic and Steering functions may be slow until hydraulic oil warms up to operating temperature. If hydraulic functions operate slowly, warm the transmission-hydraulic system oil. (Refer to ”Warm Transmission-Hydraulic System Oil” in Section 70.)

PULV000078-UN-03OCT07

5085M, 5095M, 5095MH, 5105M and 5105ML

LV9552-UN-13AUG04

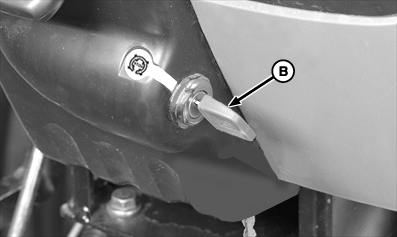

Key Switch

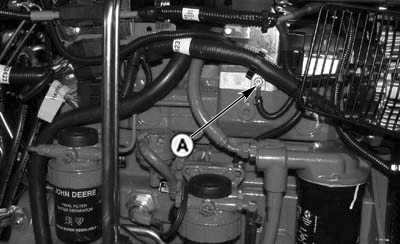

A - Electric Heating Element

B - Key

CAUTION: DO NOT use starting fluid.

5065M and 5075M

Tractors are equipped with glow plugs as a standard equipment starting aid.

1. To activate cold weather starting device, turn key (B) to RUN position:

   • Deluxe Instrument cluster will start 30 second count down for glow plugs.
   • Standard Instrument cluster will flash engine symbol for glow plugs.



   NOTE: For 5065M and 5075M: DO NOT push and hold key to start cold weather starting device.

2. Depress clutch pedal and turn key to START position.

3. If engine runs rough, press in on key to reactivate cold weather starting device until engine runs smoothly.

4. Idle engine until it warms to operating temperature.

   	Temperature Below 0 °C (32 °F)	Temperature Above 30 °C (89.6 °F)
   Mechanical Engine	1000 rpm	900 rpm
   Electronic Engine	1000 rpm	900 rpm

   NOTE: For temperature ranging 0°C - 30°C , run engine between 900 rpm and 1000 rpm.

   NOTE: If hydraulic functions operate slowly, warm the transmission-hydraulic system oil. (Refer to ”Warm Transmission-Hydraulic System Oil” in Section 70.)

5085M, 5095M, 5095MH, 5105M and 5105ML

Tractors can be equipped with an optional intake air heater system. An electric heating element (A) warms the intake air.

1. To activate cold weather starting device, turn key (B) to RUN position, push in and hold:

   • 10 or 15 seconds for temperatures above 0 °C (32 °F)
   • 30 seconds for temperatures below 0 °C (32 °F)



   NOTE: For 5065M and 5075M: DO NOT push and hold key to start cold weather starting device.

2. Depress clutch pedal and turn key to START position.

3. If engine runs rough, press in on key to reactivate cold weather starting device until engine runs smoothly.

4. Idle engine until it warms to operating temperature.

   	Temperature Below 0 °C (32 °F)	Temperature Above 30 °C (89.6 °F)
   Mechanical Engine	1000 rpm	900 rpm
   Electronic Engine	1000 rpm	900 rpm

   NOTE: For temperature ranging 0°C - 30°C , run engine between 900 rpm and 1000 rpm.

   NOTE: If hydraulic functions operate slowly, warm the transmission-hydraulic system oil. (Refer to ”Warm Transmission-Hydraulic System Oil” in Section 70.)
