Check MFWD Axle Wheel Hub Oil Level—If Equipped

1. NOTE: 5065M, 5075M, 5085M, 5095M, 5095MH and 5105M shown, 5105ML similar.


   PULV000612-UN-19MAR08

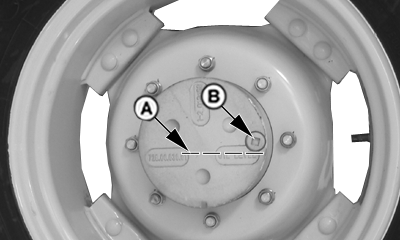

   Oil Fill Mark and Filler Plug

   A - Oil Fill Mark

   B - Oil Fill Plug

   Park tractor so that oil fill mark (A) on MFWD hub is level with the ground.

---




2. Remove fill plug (B). Oil level should be even with bottom of the fill plug hole.

3. If level is low, add oil through same hole. John Deere HY-GARD oil is recommended. (See MFWD Axle Housing and Wheel Hub Oil in section 85 Fuel, Lubricants, and Coolant.)

   NOTE: Approximate MFWD wheel hub oil capacity is 0.8 L (0.2112 gal).

4. Apply TEFLON® or equivalent to threads of plug.

5. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug-to-Hub	Torque	70 N·m (52 lb-ft)
