Bleed Fuel System—5065M and 5075M

CAUTION:

X9811
X9811-UN-23AUG88

PULV000157
PULV000157-UN-29OCT07

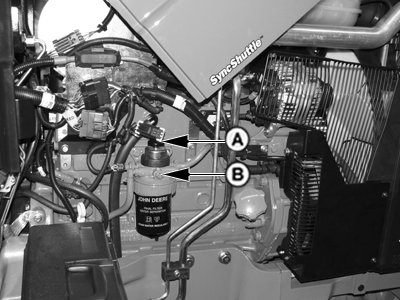

A - Priming Pump

B - Bleed Screw

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A., by calling 18008228262 or +1 3097485636.

IMPORTANT: To avoid injection pump damage, DO NOT attempt to start the engine while bleeding the fuel system.

  1. PARK tractor on level ground and SHUT OFF engine. Remove key.

  2. Check fuel level. Fuel tank must be full. Add if necessary.

  3. Raise hood and loosen bleed screw (B) two full turns.

  4. Push priming pump (A) until fuel runs out smoothly without spitting, then tighten bleed screw (B).

    NOTE: Capture the discharged waste and dispose of properly.

  5. Push priming pump several times until resistance is felt. Continue pushing pump and open bleed screw again.

  6. Close bleed screw and push priming pump several times until resistance is felt again.

  7. Lower hood.
