Drain Water and Sediment from Fuel Filter

IMPORTANT: Place suitable sized container under fuel drain locations (filters, water separator, and tanks). Dispose of waste properly.

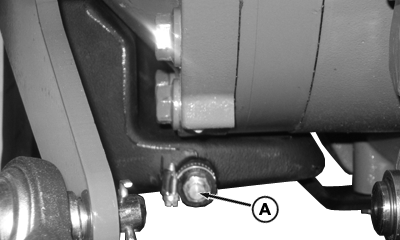

PULV007221-UN-16NOV10

Rear, Bottom, Left Side View

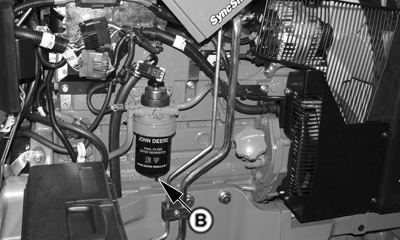

PULV000603-UN-19MAR08

5065M and 5075M

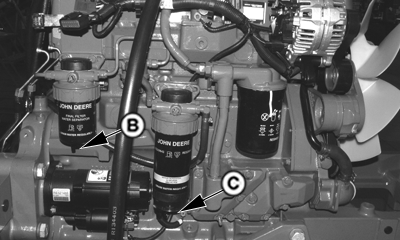

PULV000604-UN-19MAR08

5085M, 5095M, 5095MH, 5105M and 5105ML

A - Fuel Tank Drain Plug

B - Fuel Filter/Water Separator Drain

C - Water Glass Bowl Drain

1. PARK tractor on level ground and SHUT OFF engine. Remove key.

2. Raise hood and open fuel filter/water separator drain (B) and drain (C) of glass bowl (if equipped) to bleed accumulated moisture and sediment from filter. Tighten drain when clear fuel runs from drain.

3. Run engine for minimum of 20 seconds and again check fuel filter drain (B) and drain (C) of glass bowl (if equipped) for moisture and sediments.

4. If moisture or sediments are found, drain fuel tank.

5. Open fuel tank drain plug (A) to bleed accumulated moisture and sediment from fuel tank.

6. Apply TEFLON® or equivalent to threads of drain plug (A).

7. Tighten plug when clear fuel runs from fuel tank drain plug (A).

8. Lower hood.
