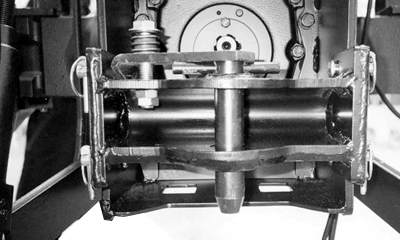

Observe Drawbar / Wagon Hitch Load Limitations

PY1094-UN-10APR05

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar. Strain is greatly increased by speed and rough ground.

Static vertical load on drawbar/wagon hitch should not exceed 556 kg (1225 lb).

Drive slowly with heavy loads.

Item	Measurement	Specification
Drawbar Static Vertical Load	Capacity	556 kg (1225 lb) Maximum
