Service Intervals

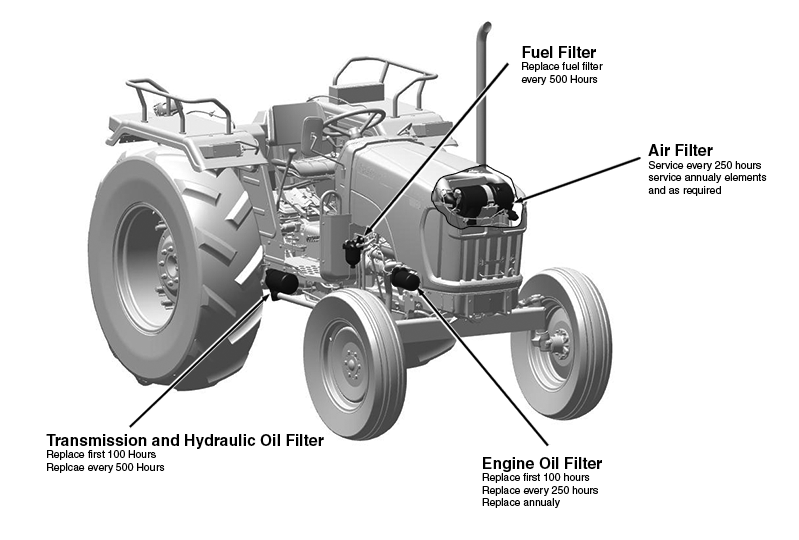

APY02977
APY02977-UN-09MAR18

Every 10 Hours

  • Check and drain water from water separator bowl
  • Check engine oil level
  • Check coolant level
  • Drain water and sediment from fuel tank and fuel filter
  • Lubricate tie rod ends1
  • Lubricate steering spindles1
  • Lubricate front axle pivot pin(s)1
  • Lubricate rear axle bearings1

Every 50 Hours

  • Check transmission-hydraulic system oil level
  • Check MFWD axle hub oil level
  • Clean and check battery
  • Inspect all tires
  • Lubricate front axle pivot pin(s)
  • Lubricate steering spindles
  • Inspect tractor for loose nuts and bolts
  • Lubricate swivel housing of MFWD equipped tractor
  • Drain water and sediment from fuel filter (single bowl cartridge fuel filter- if equipped)

First 100 Hours

  • Change engine oil and filter2
  • Replace transmission-hydraulic filter

Every 250 Hours

  • Service air cleaner
  • Change engine oil and filter3 (double bowl cartridge filter- if equipped)
  • Clean and check battery
  • Inspect and adjust alternator/fan belt
  • Lubricate 3-point hitch
  • Check neutral start system
  • Check clutch pedal free travel
  • Check brake pedal adjustment

Every 500 Hours

  • Replace transmission—hydraulic filter
  • Change engine oil and filter
  • Replace fuel filter insert (single bowl/double bowl cartridge fuel filter- if equipped)

First 600 Hours

  • Check and replace water separator bowl (if equipped)

Every 600 Hours

  • Change oil in MFWD axle housing
  • Clean engine crankcase vent tube
  • Repack front wheel bearings (Adjustable front axle)
  • Check and tighten all hoses and hose clamps
  • Check cooling system for leaks
  • Lubricate rear axle bearings
  • Check engine idle speeds
  • Have your John Deere dealer:

    Check front axle pivot pin

First 850 Hours

  • Check and replace water separator bowl

First 1100 Hours

  • Change transmission—hydraulic oil and filter

Every 1100 Hours

  • Replace water separator bowl

Every 1250 Hours

  • Change transmission-hydraulic oil and filter
  • Clean transmission-hydraulic pickup screen

Annually

  • Change engine oil and filter3
  • Replace air cleaner elements3

Every 2 Years or 2000 Hours (Whichever Comes First)

  • Flush cooling system

Service As Required

  • Service air cleaner
  • Adjust throttle friction
  • Drain water and sediment from fuel tank and fuel filter4

NOTE: The recommended periodic service intervals for John Deere equipment are based on the number of operating hours, as well as daily, weekly, monthly, and annual intervals, with priority given to whichever occurs first.

1 Only necessary when operating in extremely wet and muddy conditions.
2 See Engine Break-In Oil in Service section for additional information.
3 See a previous interval for procedure.
4 See a previous interval for procedure.

DP97633,0000047-19-20240309
