Alerts

1.

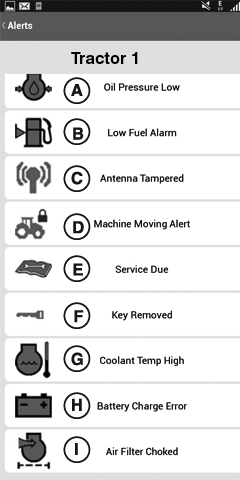

   PY25272-UN-19JAN16


   PY25273-UN-19JAN16

   A - Oil Pressure Low

   B - Low Fuel Alarm

   C - Antenna Tampered

   D - Machine Moving Alert¹

   E - Service Due

   F - Key Removed

   G - Coolant Temp High

   H - Battery Charge Error

   I - Air Filter Chocked

   J - Sim Cover Removal

   K - Vehicle Battery Removed

   L - Machine Idle Alert

   M - Fuel Level Change

   N - Sim Card Remova

   O - Job Timer Cleared

   By clicking the alert menu from main menu, navigation drawer shows list of all registered machines indicating number of unseen alerts per machine as shown.

   NOTE: Navigation drawer opens if machine was not selected,, or if more than one machine have alerts else it goes to the alerts screen of the previously selected machine.

   NOTE: If any alert is red then it is active and if the alert is green then it is Deactive.

   IMPORTANT: If mobile data or GPS/ location services of the smart phone is not active, the app activates a pop up to activate the same.

   NOTE: Alert pop ups when tractor towed beyond 800 meters aerial distance.

---




2.

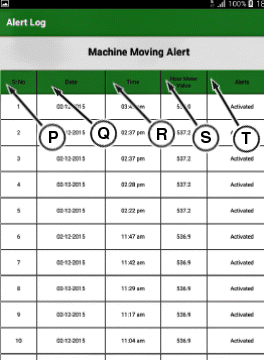

   PY25084-UN-15MAR24

   P - SR No.

   Q - Date When Alert Occurred

   R - Time When Alert Occurred

   S - Hour Meter Value when Alert Occurred

   T - Alert Status

   By clicking any of the alert then application traverses to the alert log screen showing details of the alerts..

---




3. Press the back button to traverse to the main menu.
