Monitor Menu

1.

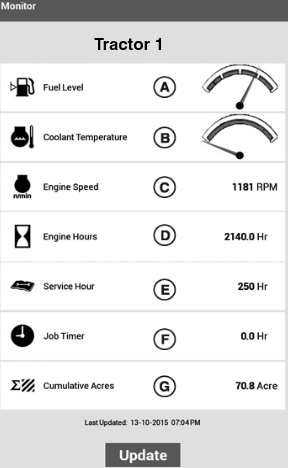

   PY25085-UN-19JAN16

   A - Fuel Level

   B - Coolant Temperature

   C - Engine Speed

   D - Engine Hours.

   E - Service Hours

   F - Job Timer

   G - Cumulative Acres

   By clicking the monitor button from main menu the application traverses to the monitor menu and displays the parameters of the default machine with details of the date and time when it was last updated.

   NOTE: If there is no data available for the machine then no values are displayed.

---




2.

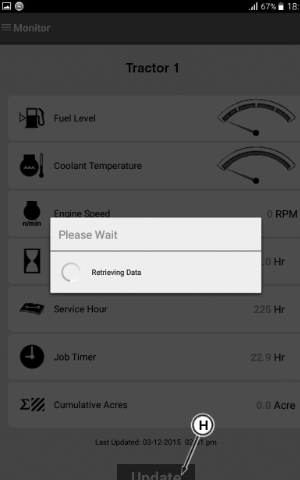

   PY25086-UN-04JAN16

   H - Update Bottom

   Click on the update button (H) to request for update information.

---




3.

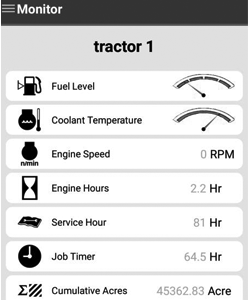

   PY25088-UN-18JUN15

   Response is received with in time out the values are updated on the screen.

---




4.

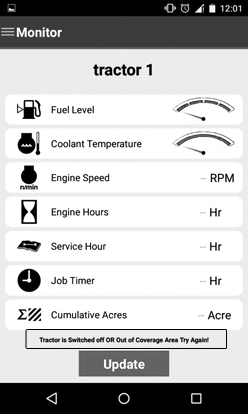

   PY25087-UN-18JUN15

   Response is not received with in time out period, Then message indicating 'tractor is switched off or out of coverage area try again' is shown.

---




5. Press the back button to traverse to the main menu.

   NOTE: On reentering monitor menu the values shown in the gray indicating are previously updated values. If update button is pressed with in period of six minutes from the time the last request was made a message indicating 'Update time less than six minutes' is indicated.
