Tractor Storage

PY42596
PY42596-UN-31JUL17

PY42597
PY42597-UN-31JUL17

PY8850
PY8850-UN-22APR09

A - Air Cleaner

B - Cooling System

C - Engine Oil Drain Plug

D - Engine Oil Filter

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration.

  1. Service air cleaner (A). (See Service Air Cleaner in Service section.)

  2. If coolant has been in tractor for 2 years, flush cooling system (B). (See Flush Cooling System in Service section.) Add 50% antifreeze water mixture. Test coolant for adequate cold-weather protection.

  3. Change engine oil and filter (D). (See Change Engine Oil and Filter in Service—250 Hours section.)

  4. Drain fuel and add back 4 L of fuel.

  5. Loosen alternator/fan belt after they have cooled.

  6. Remove and clean battery. Store in a cool, dry place. Keep it charged.1

  7. Tie or block clutch pedal in the disengaged position.

  8. Coat exposed bare (no paint) metal surfaces with grease or a corrosion inhibitor (AR41870).

  9. PY17589
    PY17589-UN-06FEB13

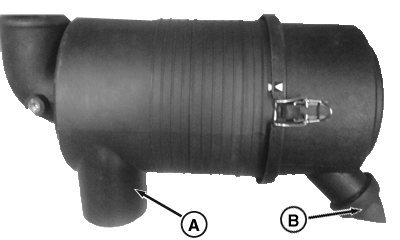

    Air Cleaner

    PY42601
    PY42601-UN-31JUL17

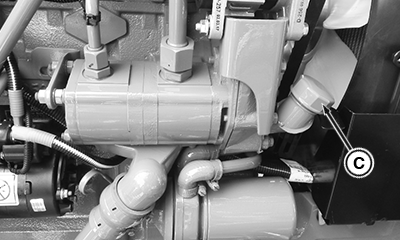

    Engine Oil Fill

    PY42602
    PY42602-UN-31JUL17

    A - Air Cleaner Inlet Hole

    B - Dust Unloader Valve

    C - Engine oil Filler

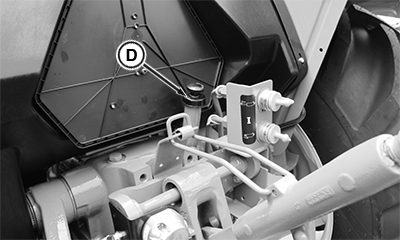

    D - Hydraulic Oil Filler Port

    Use tape to seal air inlet hole (A), dust unloader valve (B), exhaust pipe, crankcase filler (C), fuel caps, and transmission-hydraulic system filler cap (D).


  10. Cover dash with opaque material to prevent gauges from fading.

  11. Raise tires off ground. Protect them from heat and sunlight.

  12. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

  13. If the tractor must be stored outside, cover it with a waterproof material.

  14. Lock the hood properly and keeps the key at safe place.

1 Disconnect battery ground cable for short-term storage periods (20 to 90 days).
