Front Console Switches and Controls

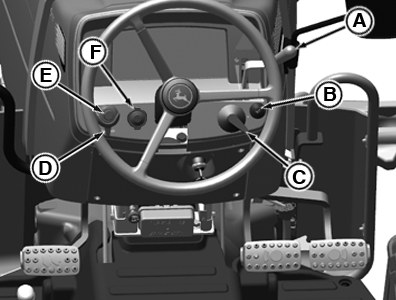

Front Console without Roll Mode Switch

APY21564-UN-07JUN20
Non- Telematics
A - Hand Throttle
B - Horn Switch
C - Light Switch
D - Turn Light Switch
E - Hazard Warning Light Switch
F - Mobile Charger (If Equipped)

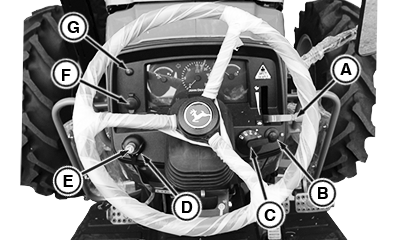

Front Console with Roll Mode Switch

PY42611-UN-31JUL17
Non- Telematics
A - Hand Throttle
B - Horn Switch
C - Light Switch
D - Turn Light Switch
E - Hazard Warning Light Switch
F - Mobile Charger (If Equipped)
G - Roll Mode Switch (If Equipped)
|
|
MD36154,00010F2-19-20200606
|
|
