Instrument Panel- Telematics (If Equipped)

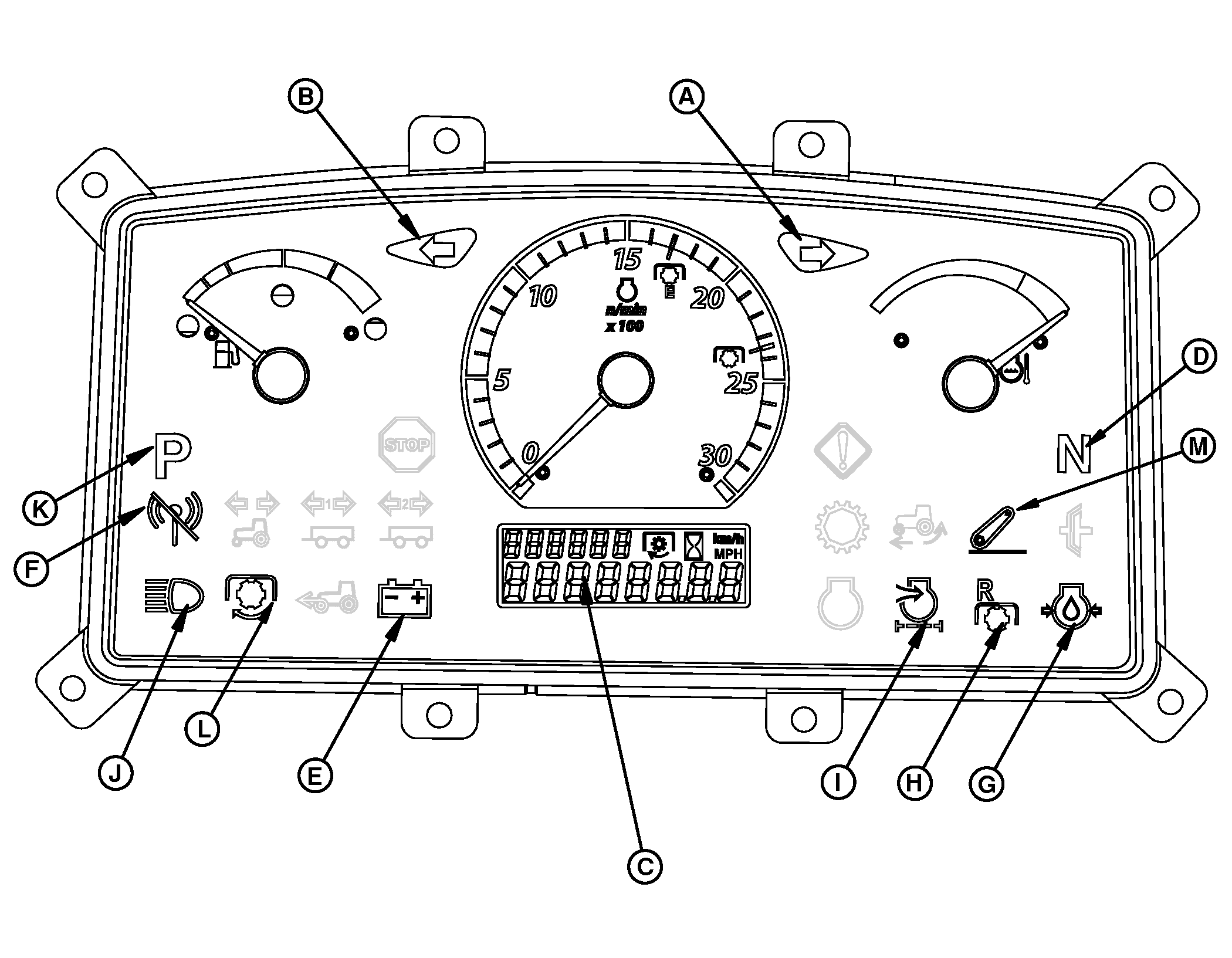

APY40137-UN-25NOV20

Instrument Panel for Telematics (2400 rpm)

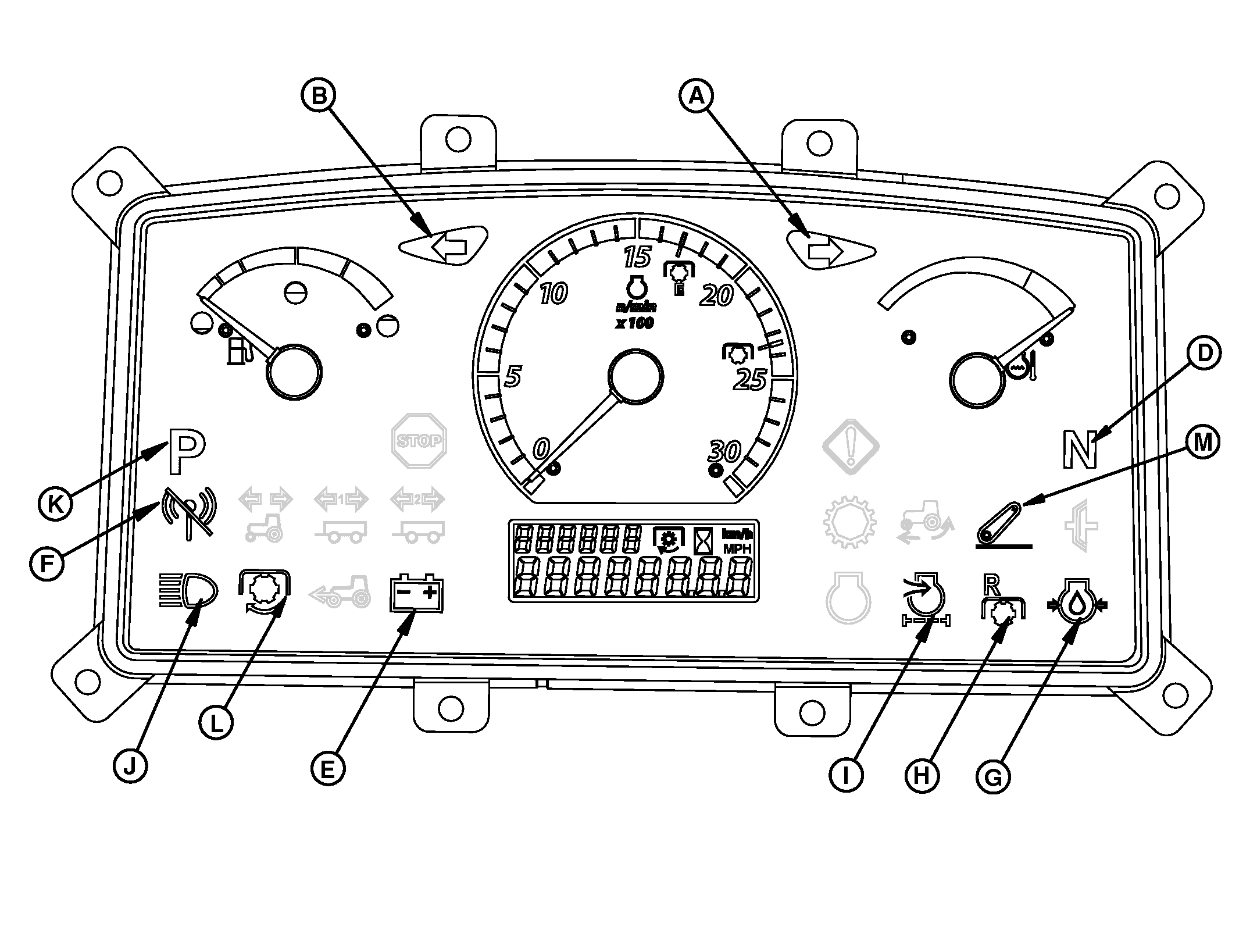

APY40138-UN-24NOV20

Instrument Panel for Telematics (2100 rpm)

A - Turn Right

B - Turn Left

C - LCD Display

D - Transmission Neutral

E - Charging System Indicator

F - Telematics

G - Engine Oil Pressure Indicator

H - Reverse PTO Indicator

I - Air Restriction Indicator

J - High Beam Indicator

K - Park Brake

L - PTO Engaged Indicator

M - EQRL Indicator

NOTE: Only listed indicators enable during the tractor operations, rest all indicators always disabled which is available on the instrument panel.

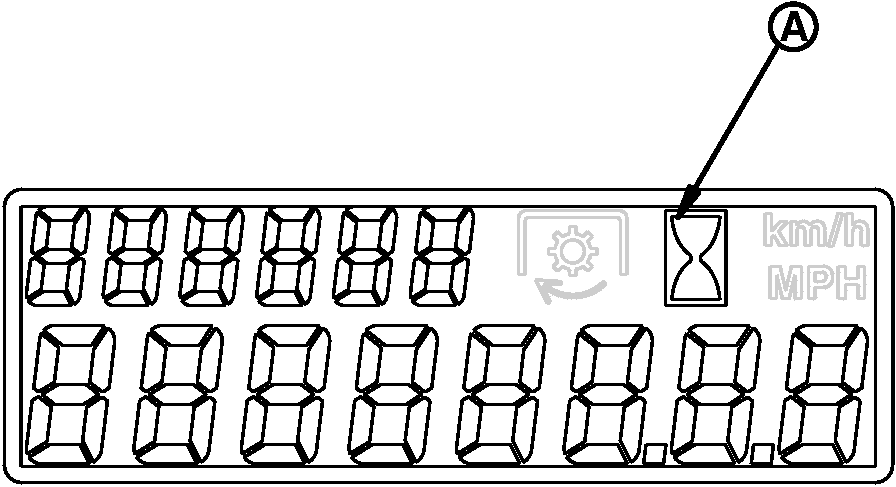

PY25115-UN-28SEP15

LCD Display

A - Hour Meter
