Observe Telematics Operation (If Equipped)

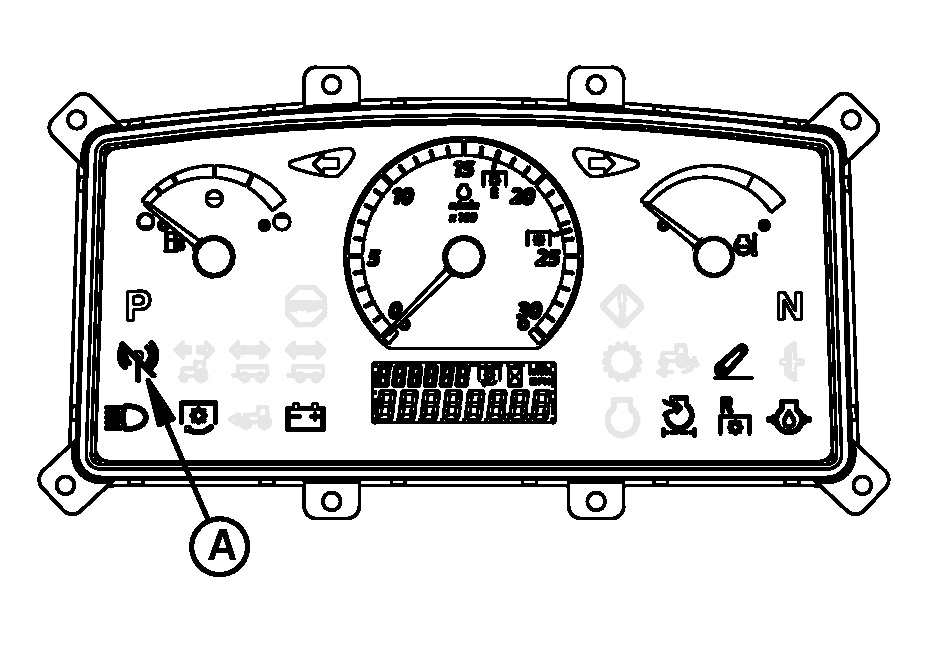

APY40144-UN-03NOV20

For Telematics (2400 rpm)

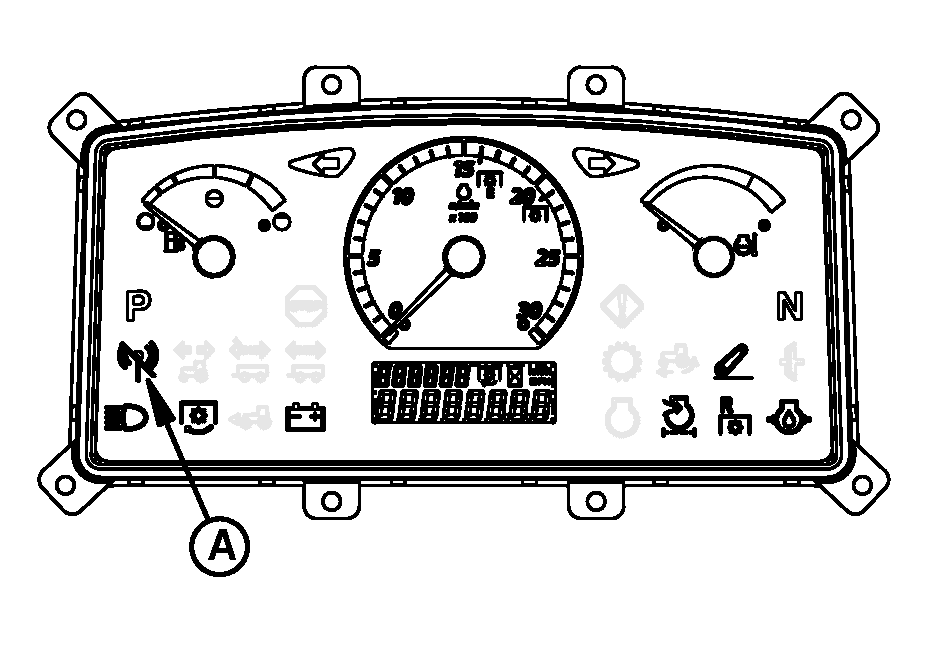

APY40145-UN-04NOV20

For Telematics (2100 rpm)

A - Telematics Indicator

IMPORTANT: If telematics indicator (A) on the instrument cluster is not blinking and glowing continuously, then there could be the problem with the telematics sub system. See the trouble shooting section or contact nearest dealer location for fix the problem.

NOTE: Observe telematics indicator blinking. If there is fast blink that means it is searching for GPS signal and for the slow blink that means searching for the mobile network.

Once start the tractor observe the telematics indicator (A) is blinking and stops after GPS and GSM (Mobile Network) signals acquired.
