Working with Speed/Hour Meter

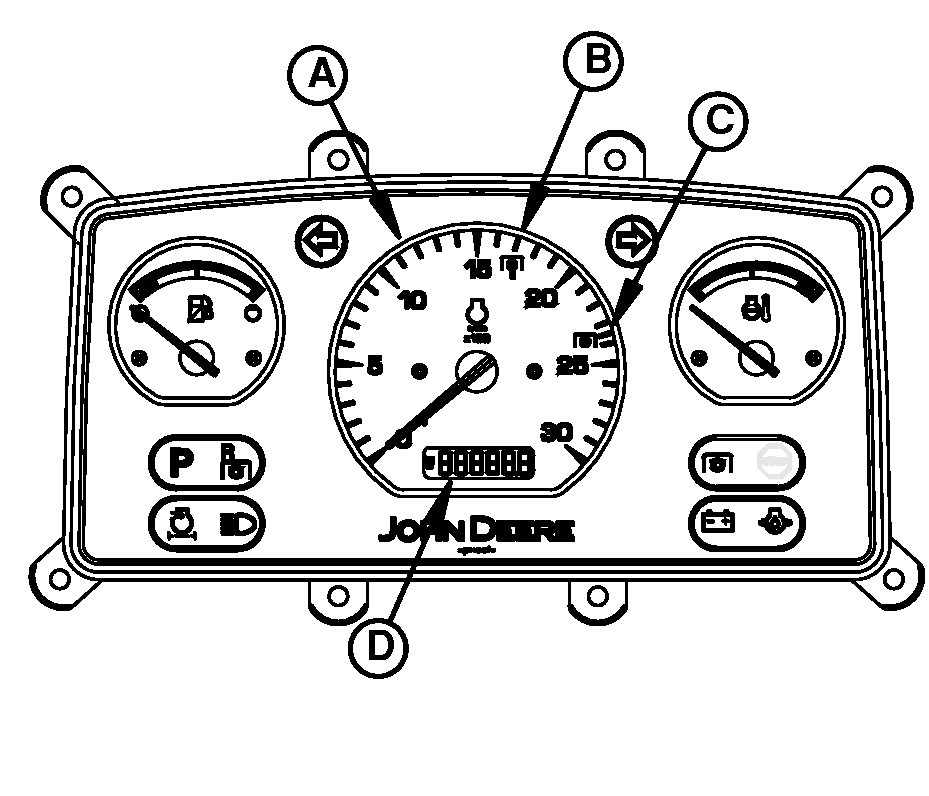

APY40055-UN-15SEP20

For 2400 rpm

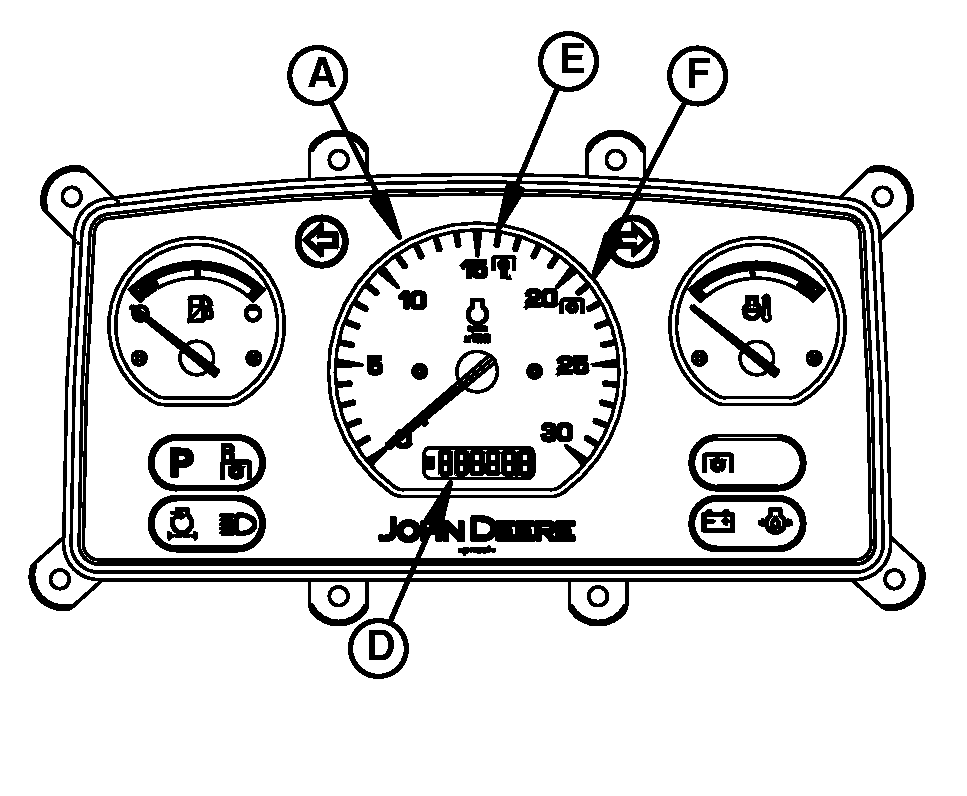

APY40056-UN-17SEP20

For 2100 rpm

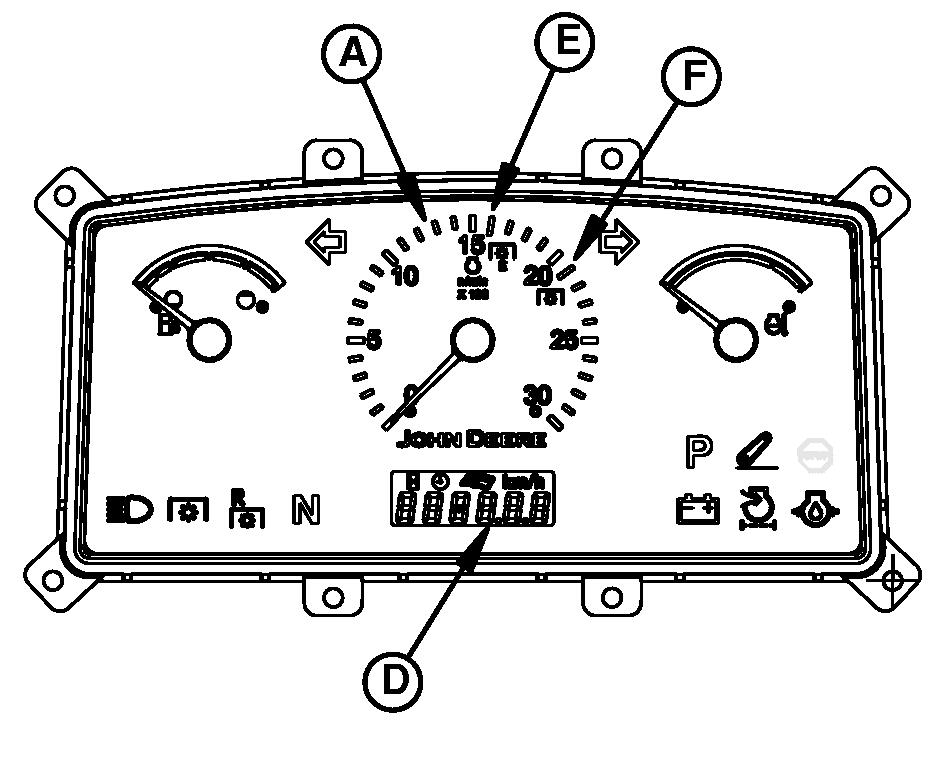

APY40057-UN-15SEP20

For 2100 rpm

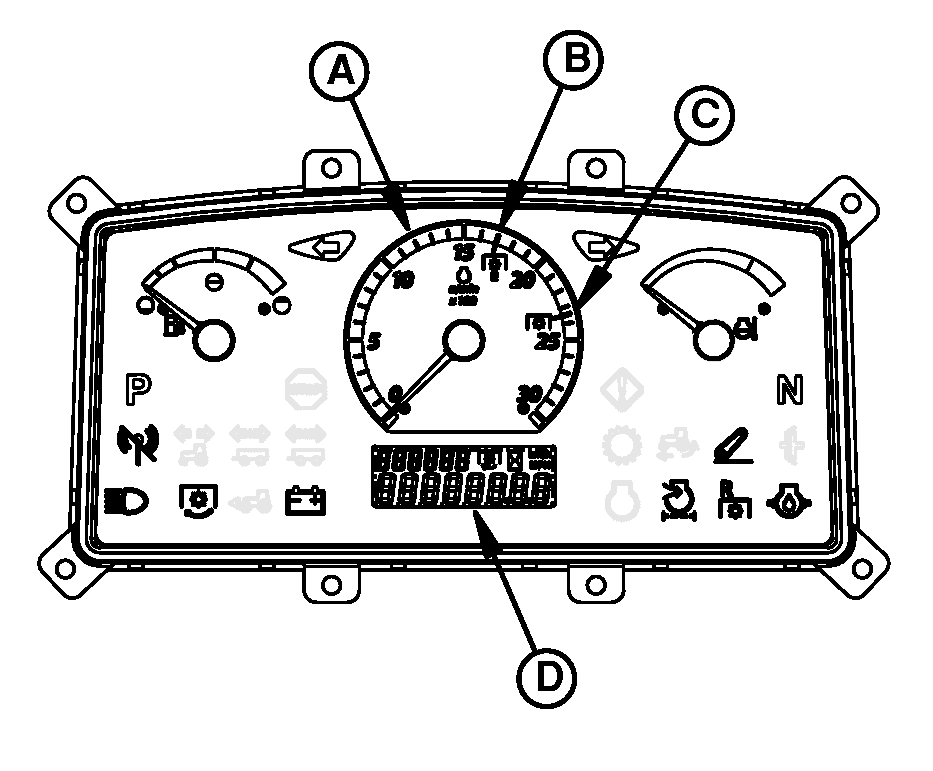

APY40148-UN-03NOV20

For Telematics and Non Telematics (2400 rpm)

APY40149-UN-03NOV20

For Telematics (2100 rpm)

A - Tachometer

B - 1705 rpm Mark

C - 2376 rpm Mark

D - LCD Display

E - 1588 rpm Mark

F - 2083 rpm Mark

Tachometer (A) shows engine rpm, read in hundreds.

For standard 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2376 rpm mark (C) for 2400 rpm or 2083 rpm mark (F) for 2100 rpm .

For economy 540E rpm PTO speed, increase engine speed until tachometer needle is aligned with 1705 rpm mark (B) for 2400 rpm or 1588 rpm mark (E) for 2100 rpm.

LCD Display (D) shows hours of operation in full hours and tenths.
