Selecting a Gear

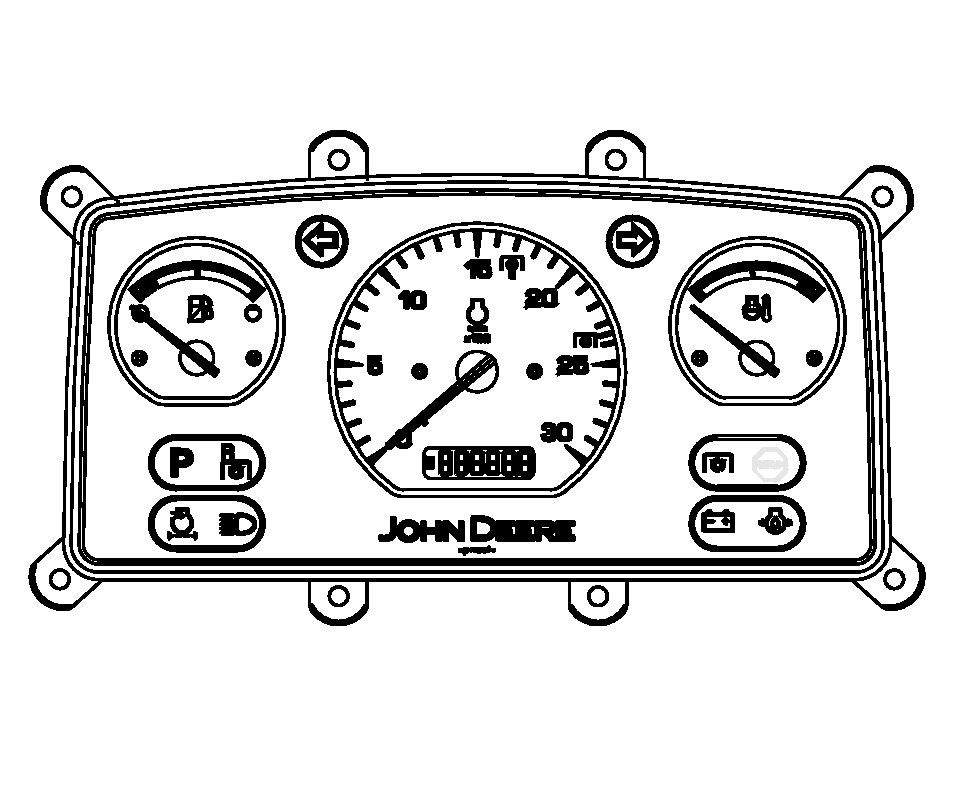

APY40059-UN-15SEP20

For 2400 rpm

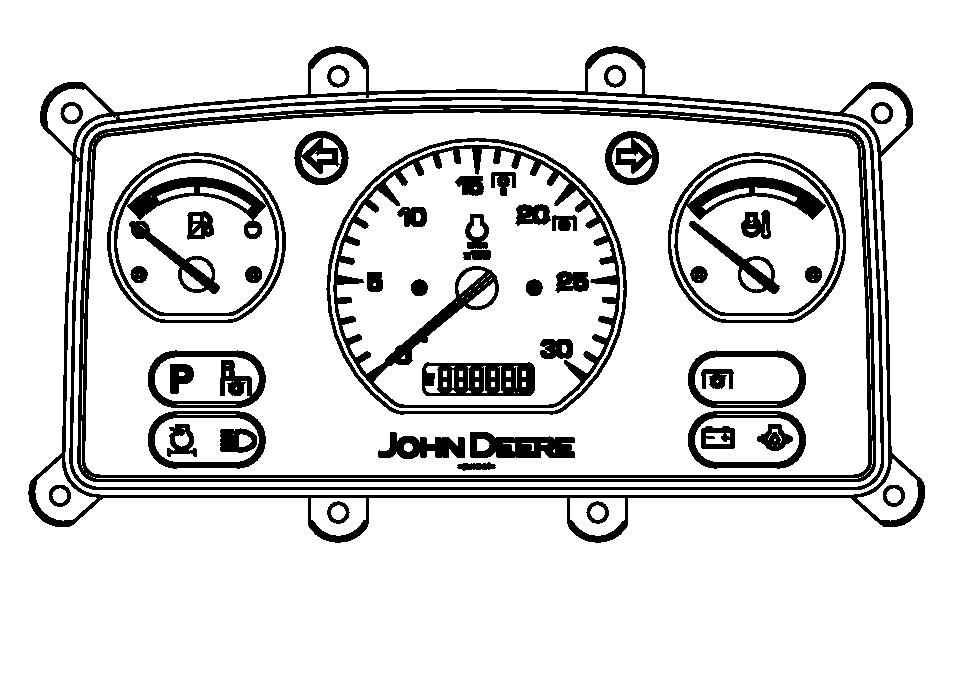

APY40060-UN-15SEP20

For 2100 rpm

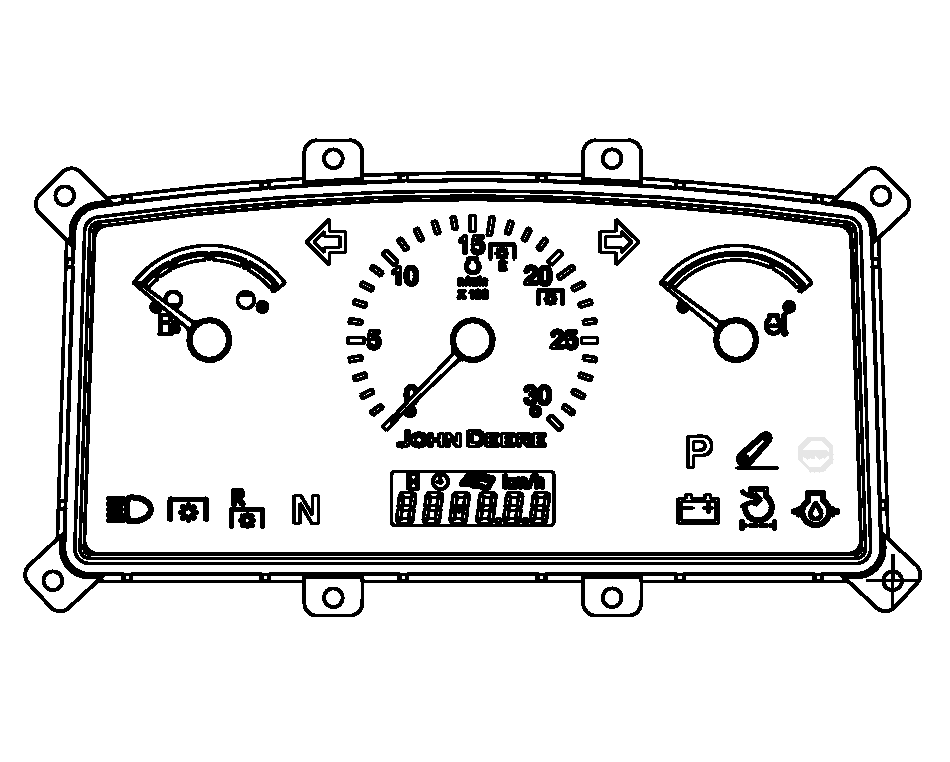

APY40061-UN-15SEP20

For 2100 rpm

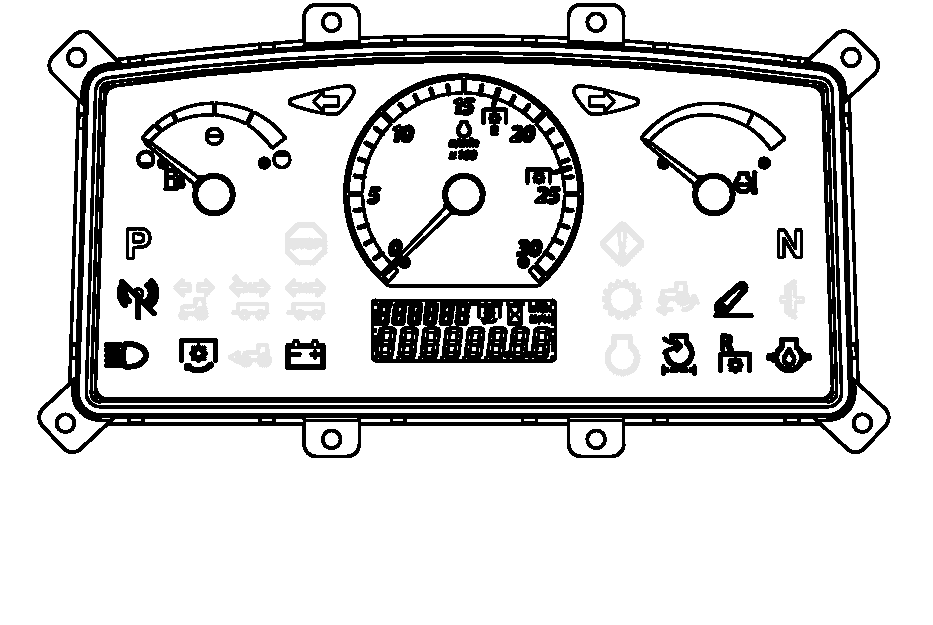

APY40150-UN-03NOV20

For Telematics and Non Telematics (2400 rpm)

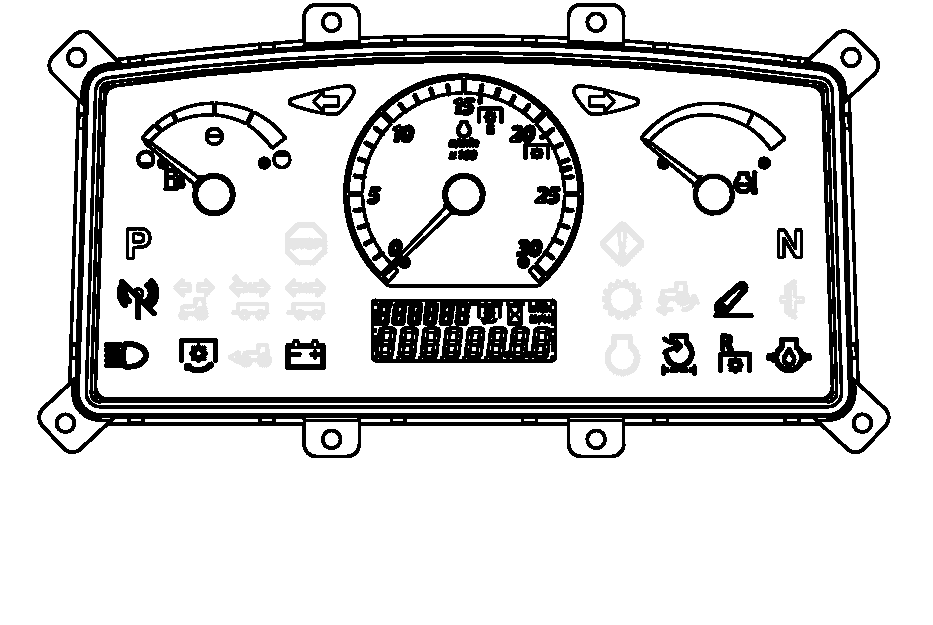

APY40151-UN-03NOV20

For Telematics (2100 rpm)

IMPORTANT: To extend drive train life and avoid excessive soil compaction and rolling resistance when using ballast, operate one gear lower than normal.

The tractor may be operated in any gear with engine speeds between 1800 rpm and 2400 rated engine rpm.

Within these limits the engine can be put under full load. For light load operation, use a higher gear and lower engine speed. This saves fuel and reduces wear.

Ground Speed Estimates for different tire sizes are located in Specifications section.
