Quick Raise and Lower System Indicator (If Equipped)

APY40078-UN-15SEP20

For 2100 rpm

APY40152-UN-03NOV20

For Telematics and Non Telematics (2400 rpm)

APY40153-UN-04NOV20

For Telematics (2100 rpm)

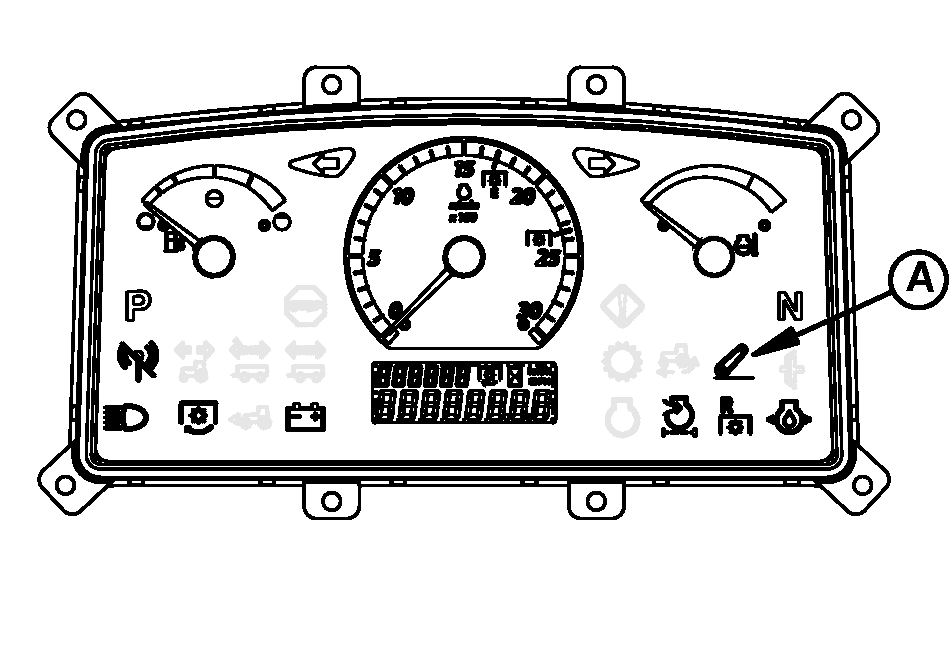

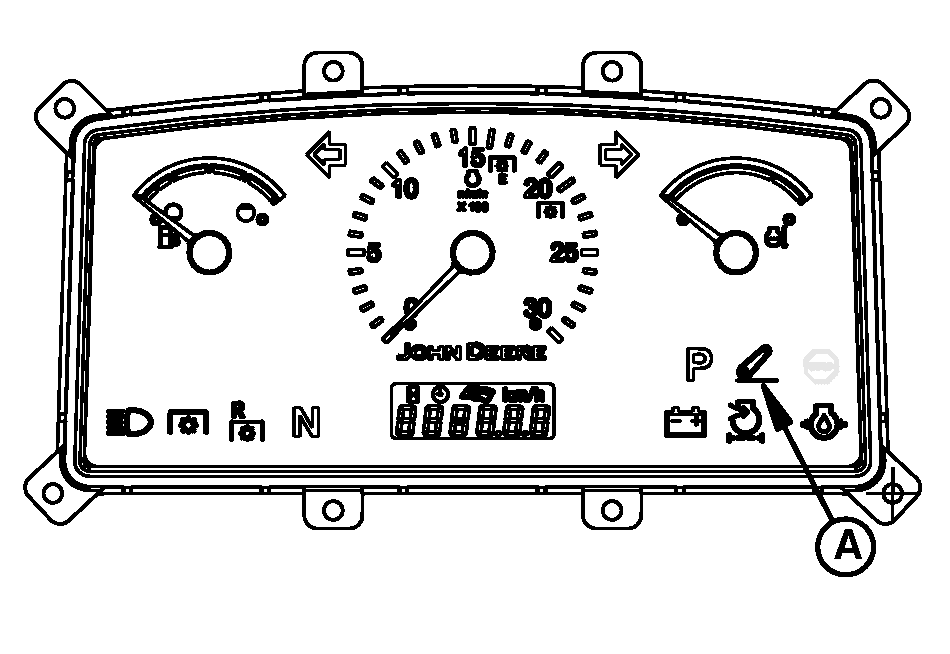

A - Quick Raise and Lower Indicator

IMPORTANT: Whenever the system detects an unsafe condition due to abnormal operation of QRL switch or motor, the system will go in Safe Mode and QRL operation will stop with fault code appearing in instrument cluster.

Quick raise and lower indicator (A) warns of a malfunction in the Quick raise and lower system. (See your John Deere dealer.)

Below table shows the blink patterns according to the problem occurred to QRL.

NOTE: Blink patterns are considered in percentage calculations for 1 second time. Indicator blinks in amber color.

QRL Switch Problem (Front Right Side of Fender)	30% on and 70% off (Short Blink)
Rear Hitch Control Switch Problem (Rear Left Side of the Fender)	50% on and 50% off (Fast Blink)
Motor Problem	70% on 30% off (Long Blink)
