Check Engine Idle Speeds (For 2100 RPM)

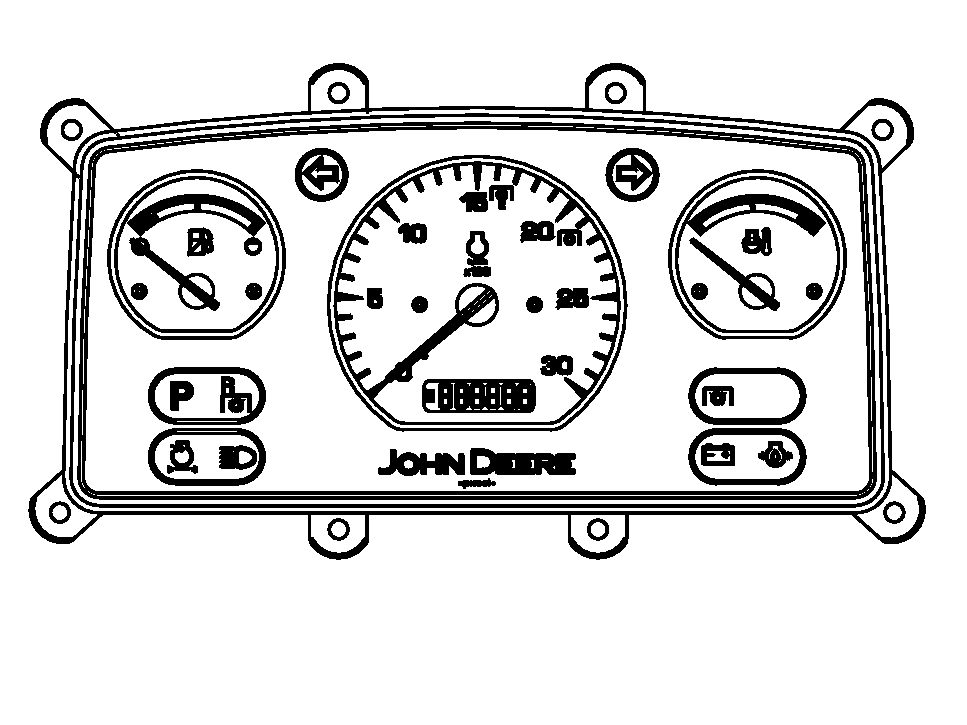

APY40080-UN-15SEP20
For 2100 rpm

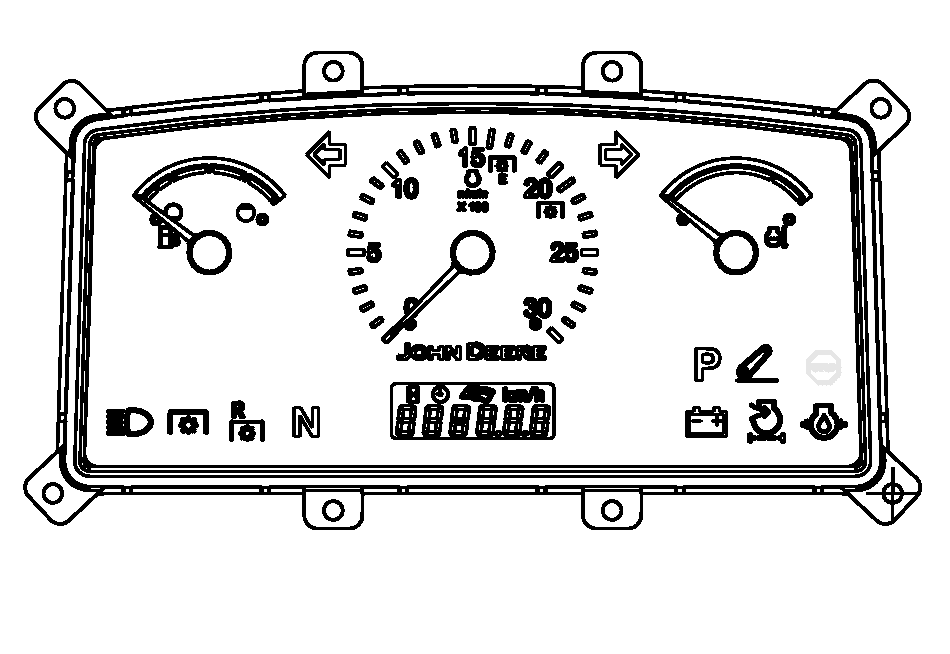

APY40081-UN-15SEP20
For 2100 rpm

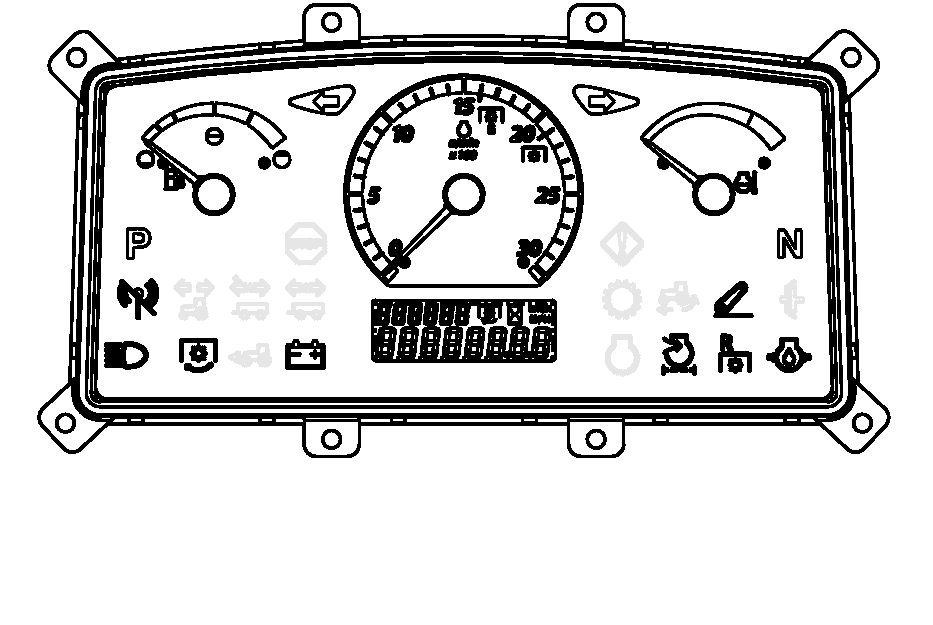

APY40162-UN-03NOV20
If idle speeds are not correct, see your John Deere dealer.
| Item | Measurement | Specification |
|
Engine—Slow Idle | Speed | 850 +50/-50 |
|
Engine—Fast Idle (with No Load) | Speed | 2300 +50/-50 Maximum |
|
|
MD36154,000136C-19-20201102
|
|
