Service Air Cleaner at Regular Intervals

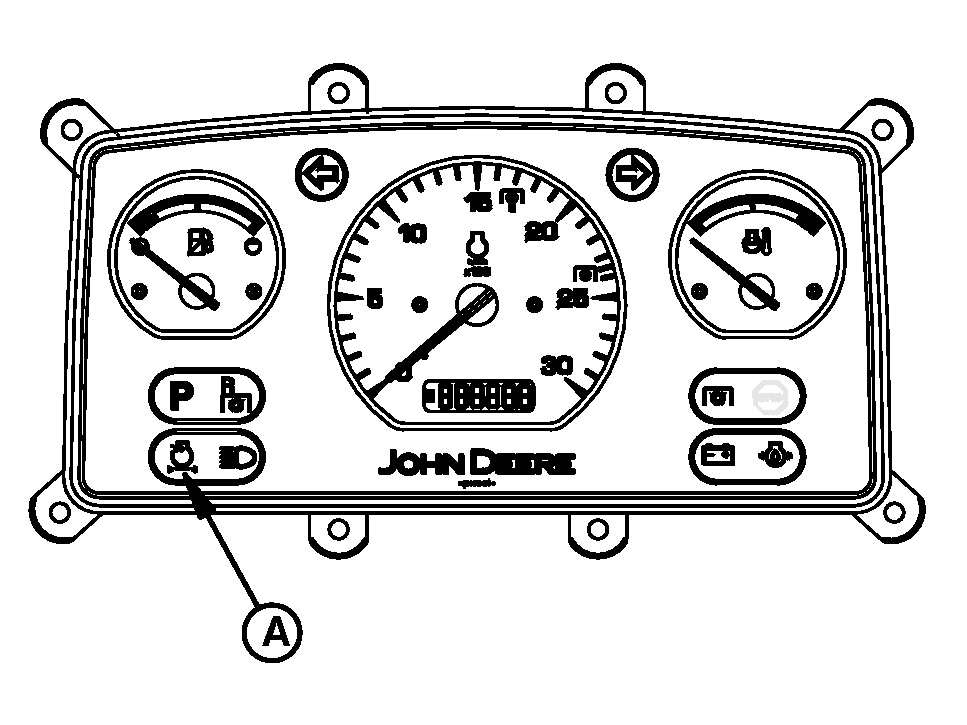

APY40074-UN-15SEP20

For 2400 rpm

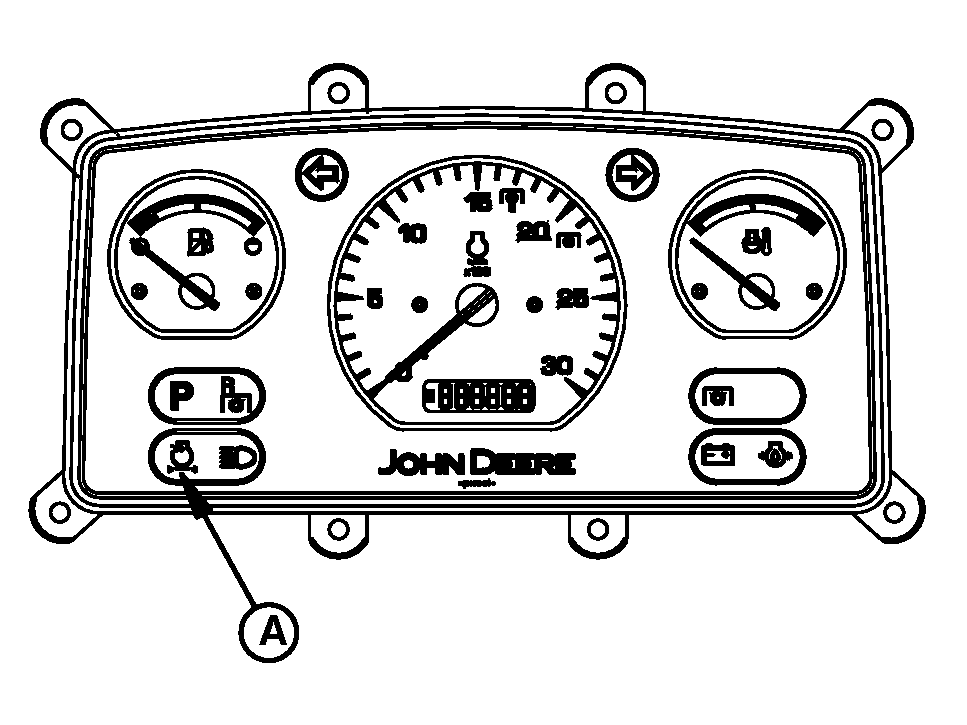

APY40075-UN-15SEP20

For 2100 rpm

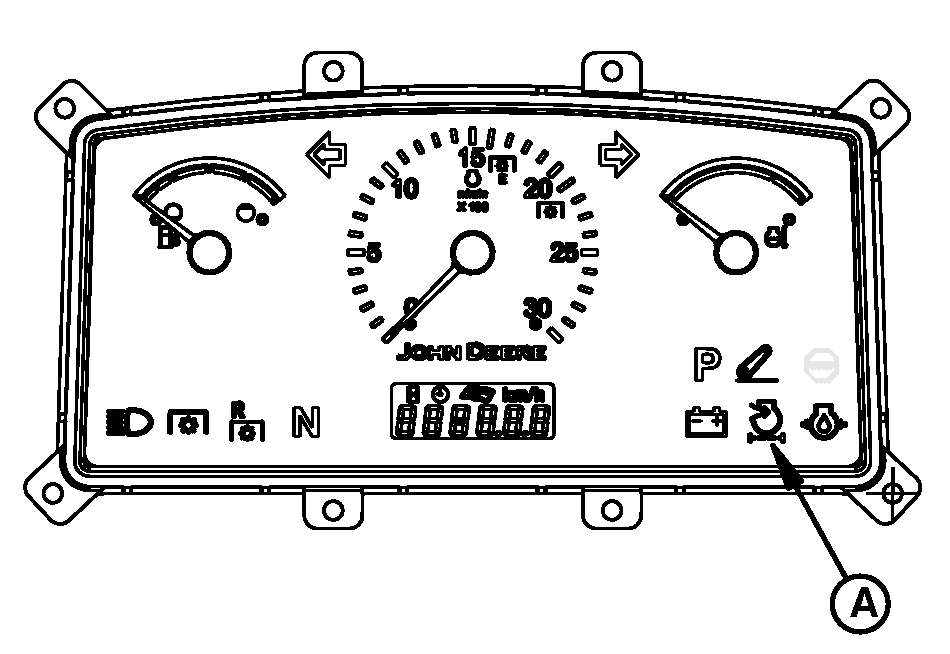

APY40076-UN-15SEP20

For 2100 rpm

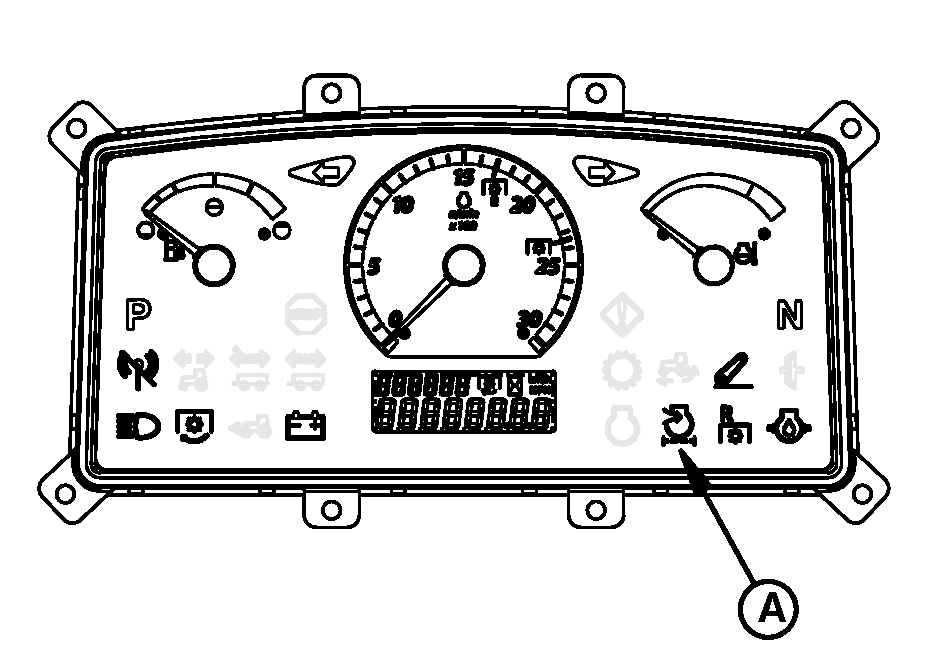

APY40163-UN-04NOV20

For Telematics and Non Telematics (2400 rpm)

APY40164-UN-04NOV20

For Telematics (2100 rpm)

A - Air Restriction Indicator

Service air cleaner if air restriction indicator (A) illuminates or at least every 250 hours. Replace air cleaner elements at least once a year.

The smaller “secondary” element should be removed only when being replaced, normally once a year. (See Service Air Cleaner in Service—250 Hours section.)
