Operate Tractor Reverse PTO (If Equipped)

1.
   PY42562-UN-31JUL17

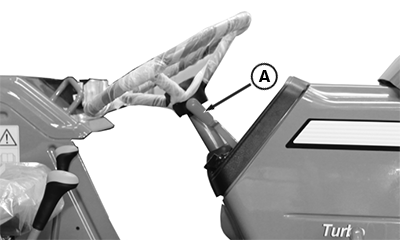

   Hand Throttle Lever

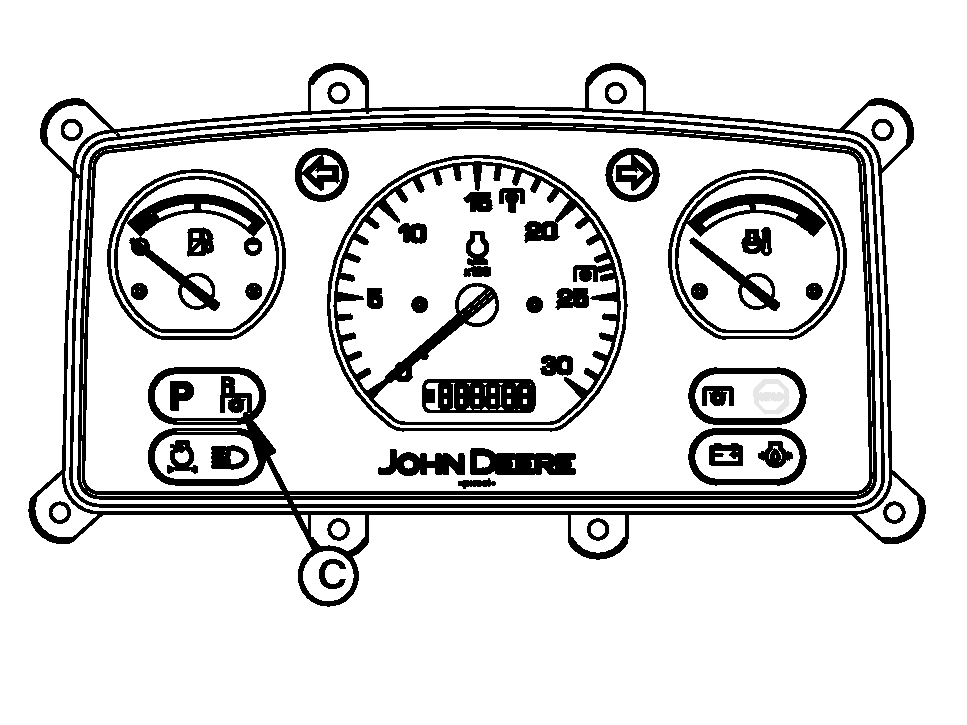

   APY40181-UN-03NOV20

   For 2400 rpm

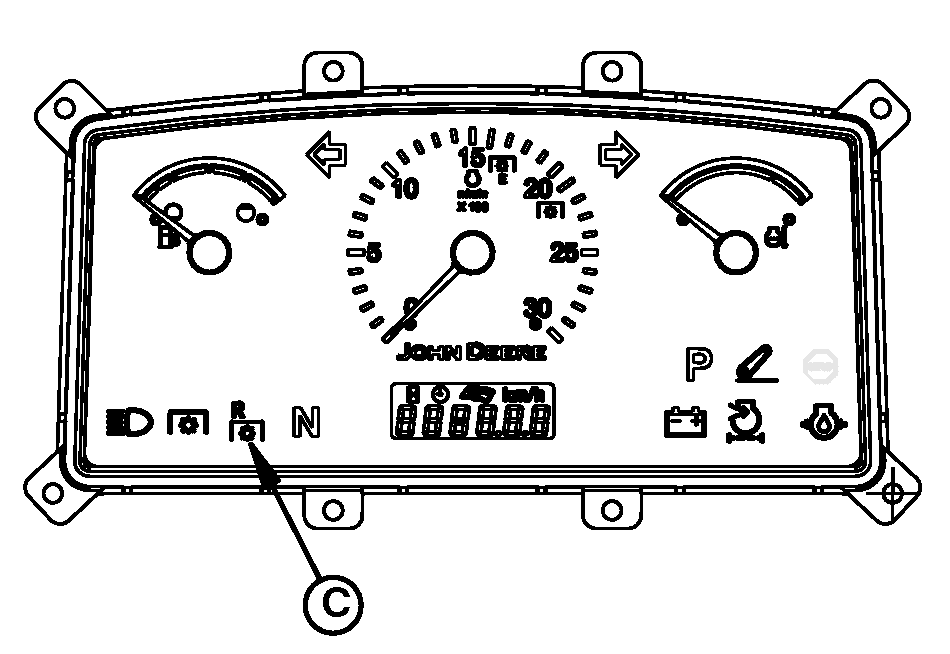

   APY40182-UN-03NOV20

   For 2100 rpm

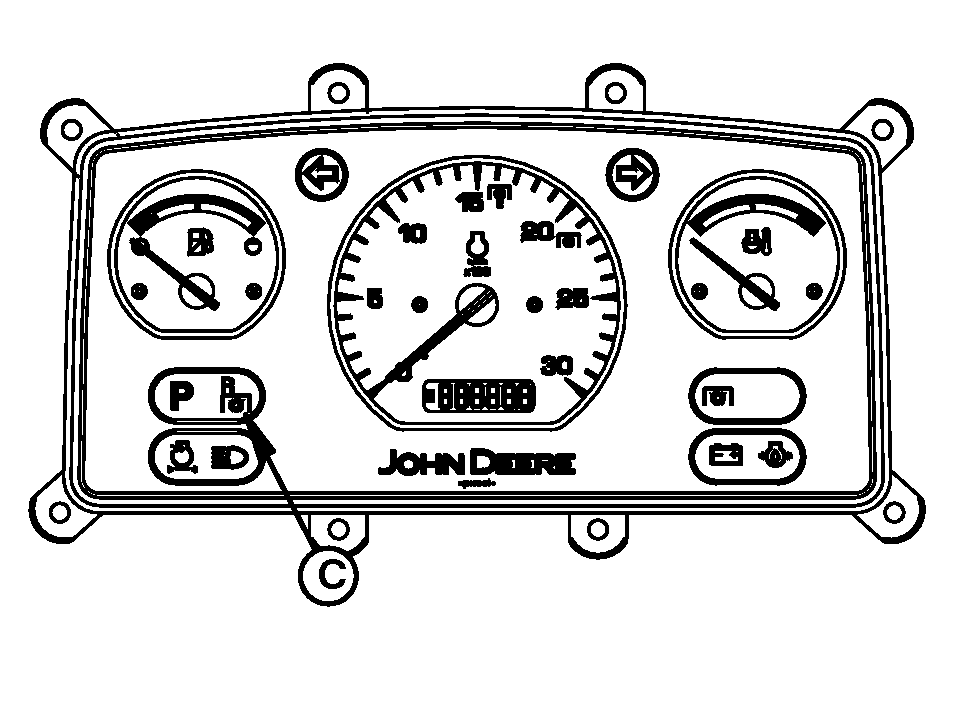

   APY40183-UN-03NOV20

   For 2100 rpm

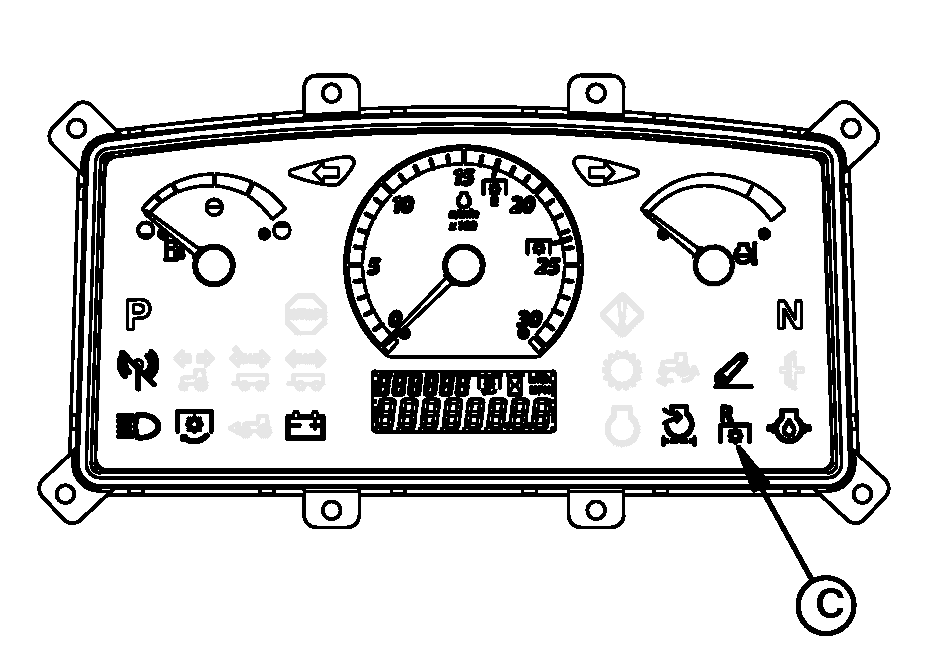

   APY40157-UN-03NOV20

   For Telematics and Non Telematics (2400 rpm)


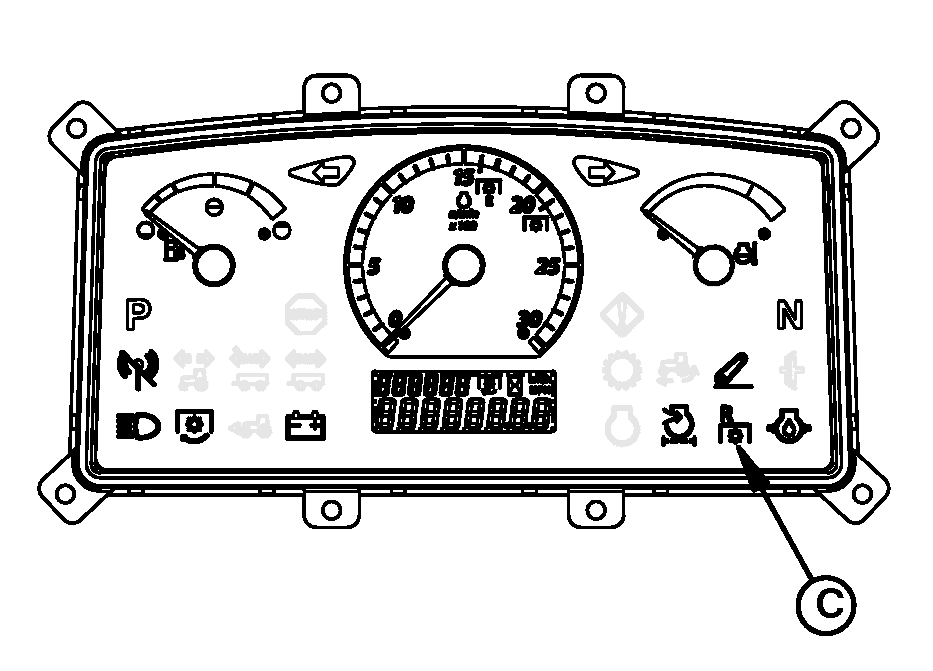

   APY40158-UN-03NOV20

   For Telematics (2100 rpm)

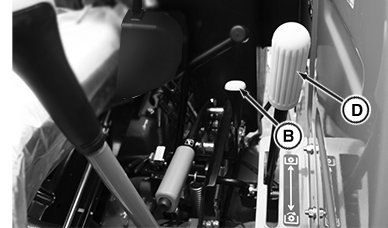

   APY40198-UN-06NOV20

   Left Side Controls

   A - Hand Throttle

   B - Reverse PTO Lever

   C - Reverse PTO Indicator

   D - PTO Control Lever

   Start engine and put hand throttle (A) to minimum position.

---




2. Move PTO control lever (D) rearward to disengage PTO.

3. NOTE: Standard PTO lever must be in disengage position while engaging reverse PTO lever.

   NOTE: When the reverse PTO lever (B) is engaged, reverse PTO indicator (C) will glow on the instrument cluster with a beep sound in it.

   Move reverse PTO lever (B) forward for reverse PTO operation.

4. NOTE: When standard PTO lever engaged, an indicator will glow on the instrument cluster.

   Move PTO control lever (D) forward to engage PTO.

5. When the PTO control lever (D) gets engaged, PTO shaft starts rotating in anti-clock wise direction for reverse PTO operation. Reverse PTO shaft starts rotating as per the specification.

   Item	Measurement	Specification
   Reverse PTO rpm at 2376 Erpm	Rotation	600 rpm

   CAUTION: Turn key OFF to stop engine, put tractor in park position and make sure that all mechanisms have stopped before cleaning out machine or making adjustments to PTO driven implement.
