Check Engine Idle Speeds (2400 rpm)

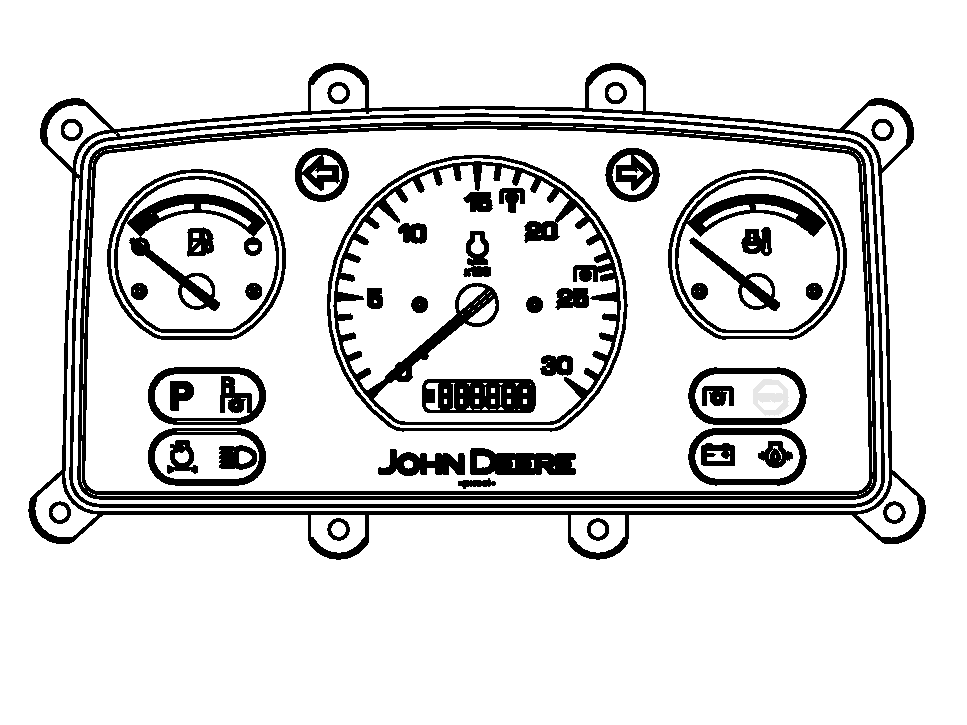

APY40071-UN-15SEP20

For 2400 rpm

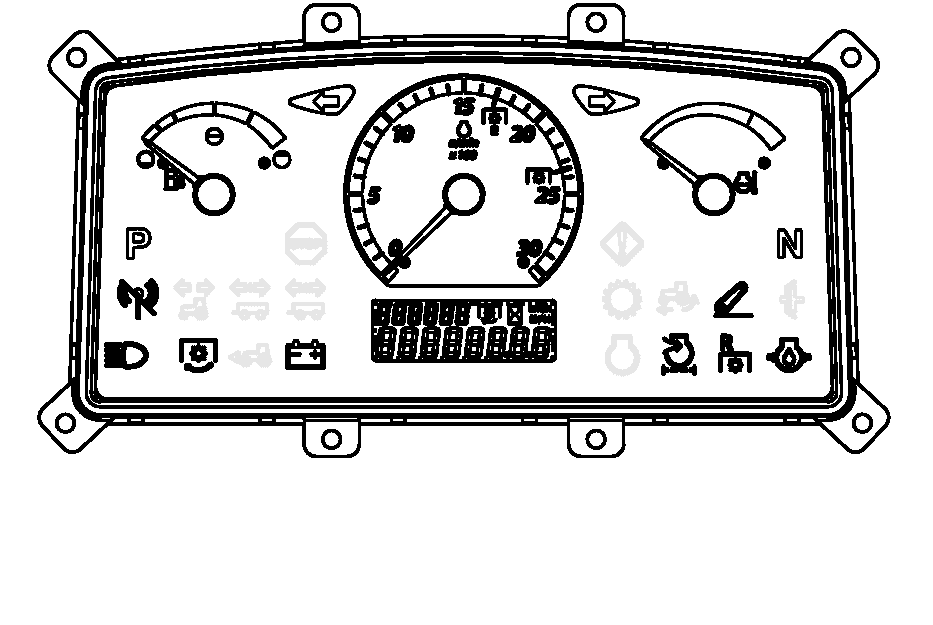

APY40161-UN-03NOV20

For Telematics and Non Telematics (2400 rpm)

If idle speeds are not correct, see your John Deere dealer.

Item	Measurement	Specification
Engine—Slow Idle	Speed	850 -25/+50
Engine—Fast Idle (with No Load)	Speed	2600 +50/-25 Maximum
