Observe Engine Operation Closely

APY40046-UN-15SEP20

For 2400 rpm

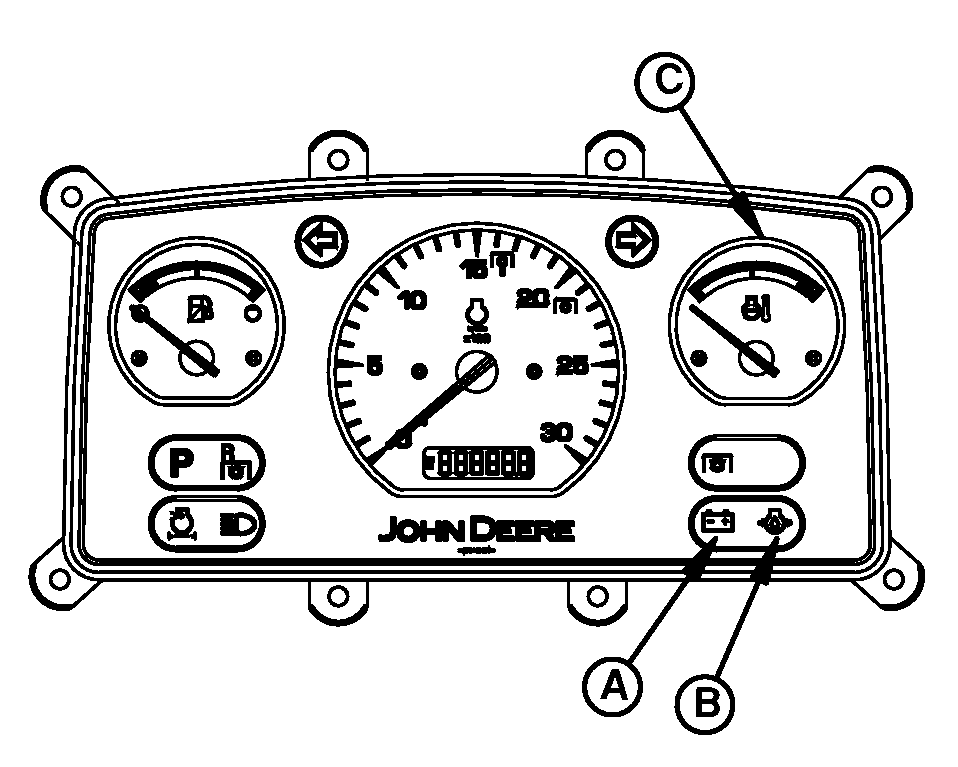

APY40047-UN-15SEP20

For 2100 rpm

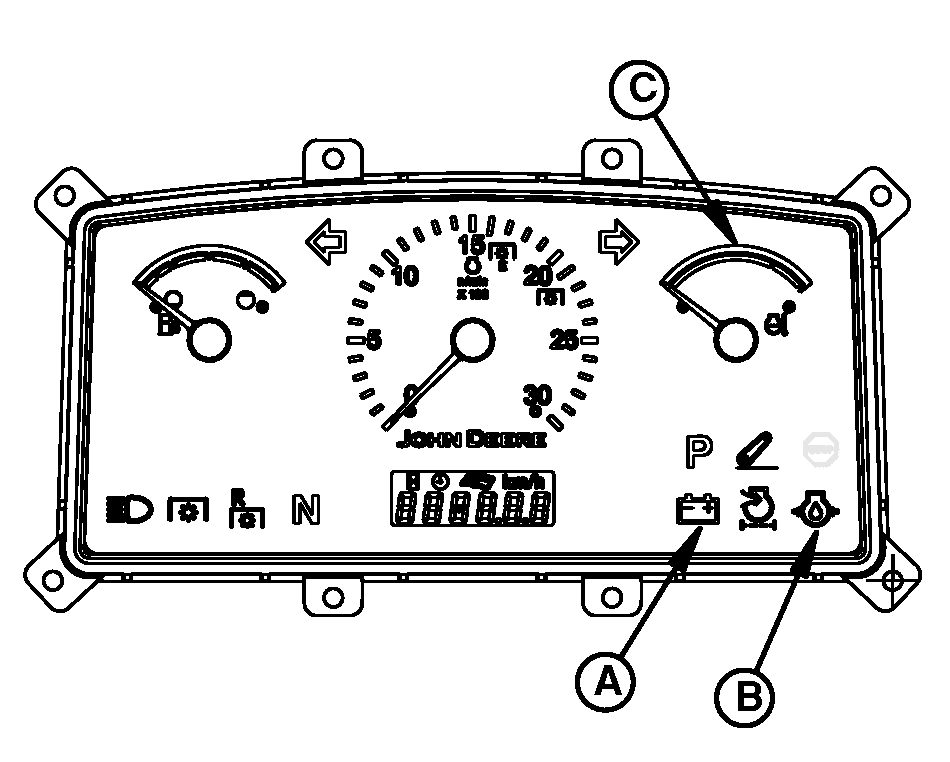

APY40048-UN-15SEP20

For 2100 rpm

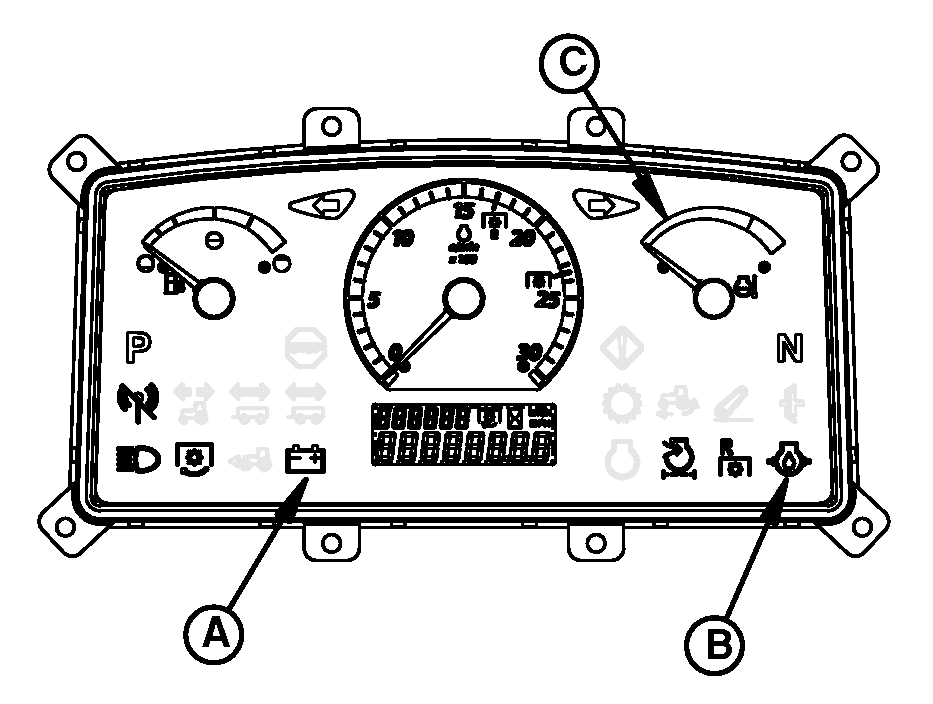

APY40185-UN-04NOV20

For Telematics and Non Telematics (2400 rpm)

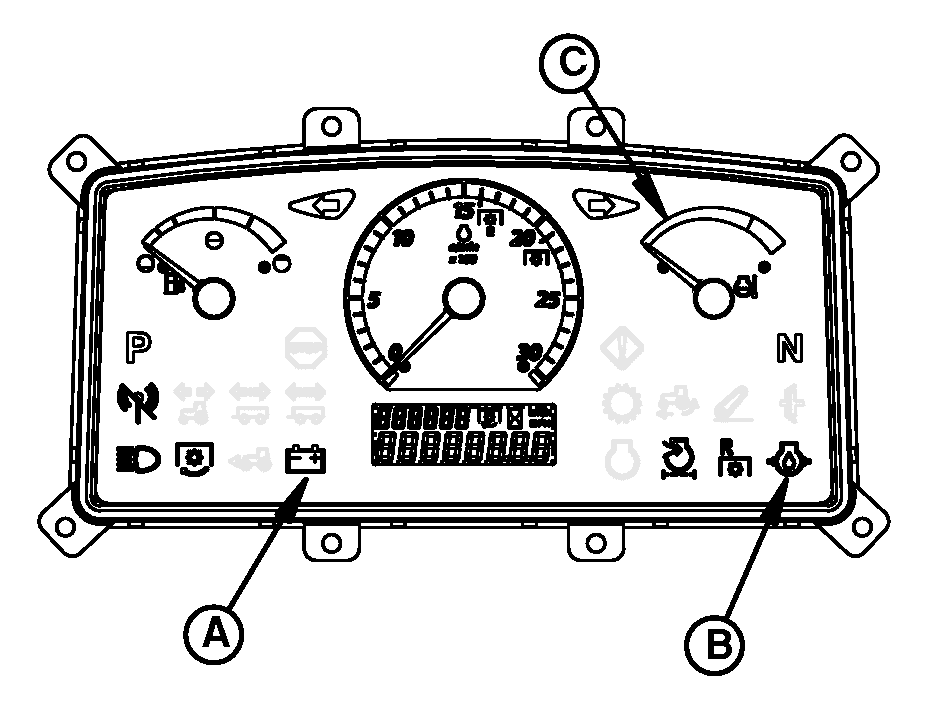

APY40143-UN-04NOV20

For Telematics (2100 rpm)

A - Charging Indicator

B - Oil Pressure Indicator

C - Coolant Temperature Gauge

IMPORTANT: The engine is ready for normal operation. Be extra cautious during the first 100 hours, until you become thoroughly familiar with the sound and feel of your new tractor. Stay extra attentive and alert.

Warm up tractor carefully. Check charging (A) and oil pressure (B) warning indicator lights and coolant temperature gauge (C).

Avoid unnecessary engine idling.

Check engine oil, coolant, transmission/hydraulic, and mechanical front wheel drive (if equipped) fluid levels frequently. Watch for fluid leaks.

NOTE: If engine oil must be added, use seasonal viscosity grade oil. Use only lubricants meeting specifications given in the Fuels, Lubricants, and Coolant section.
