Observe PTO Indicators

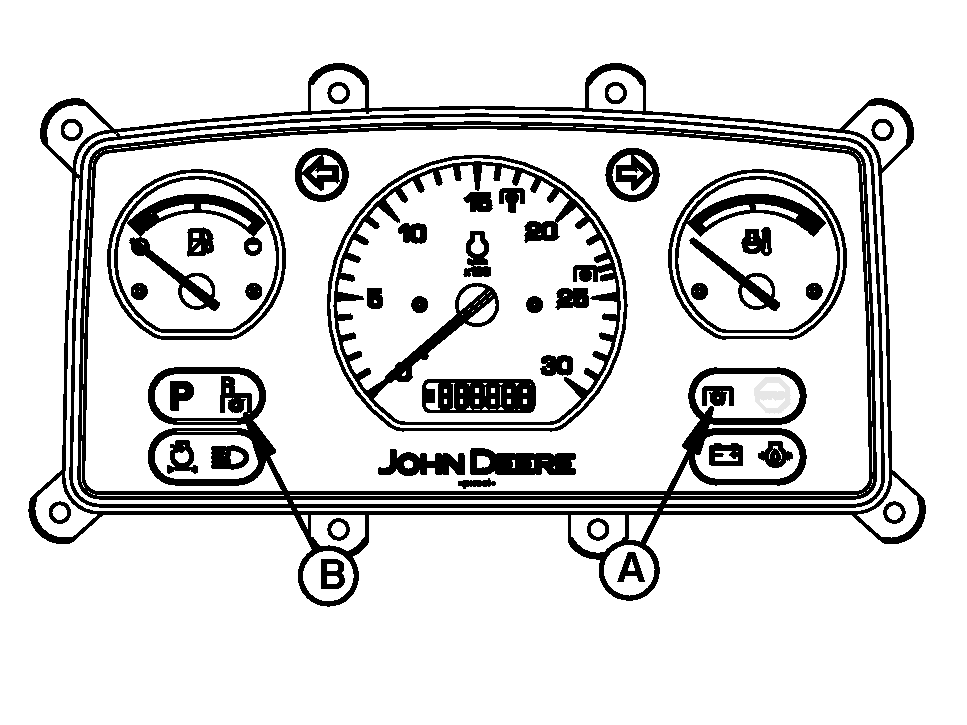

APY40063-UN-15SEP20

For 2400 rpm

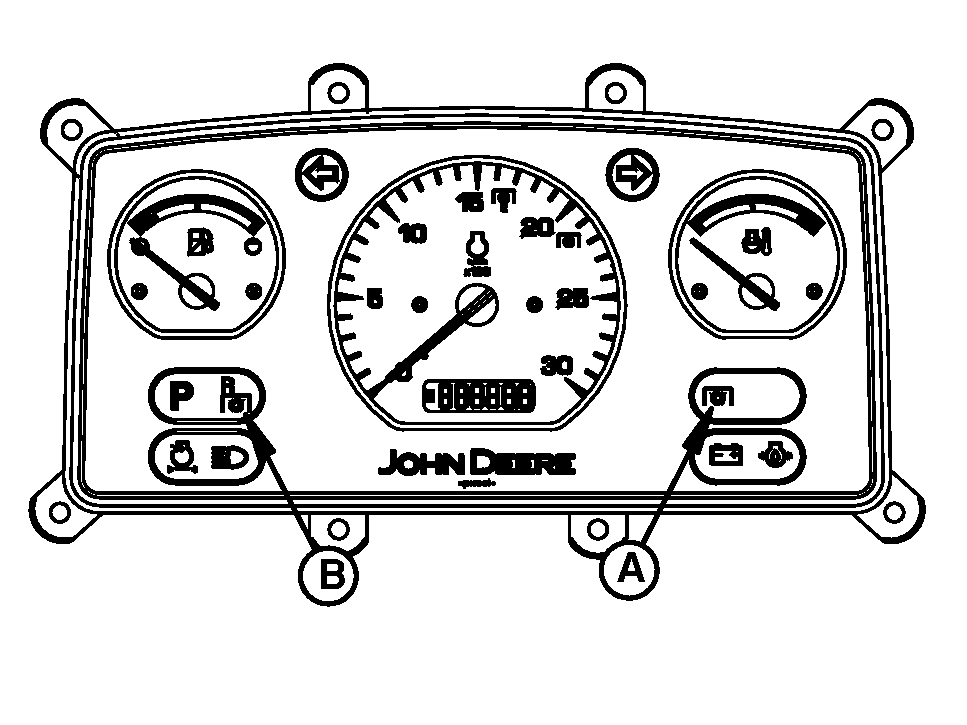

APY40064-UN-15SEP20

For 2100 rpm

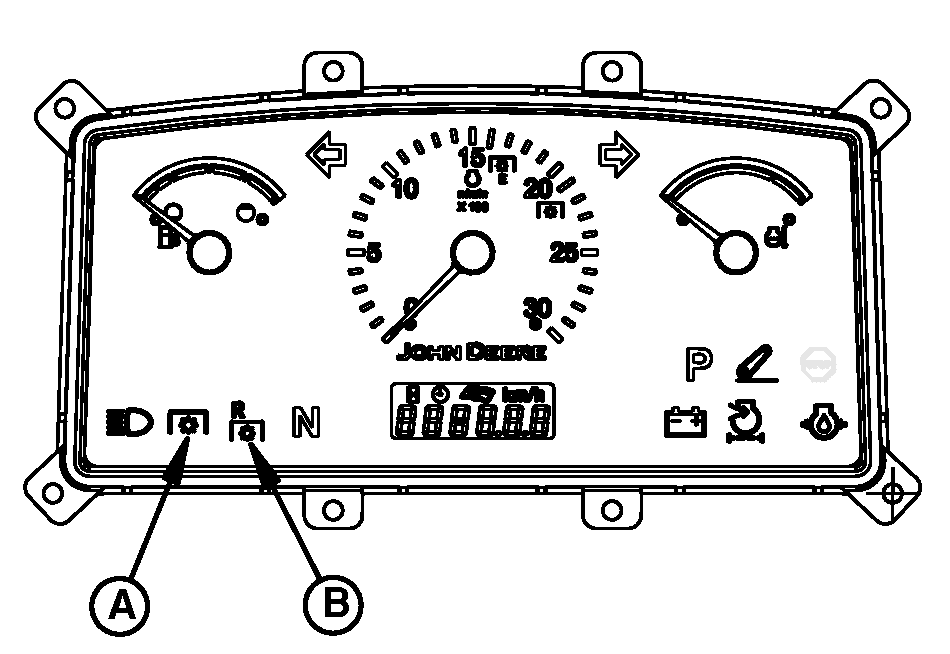

APY40065-UN-15SEP20

For 2100 rpm

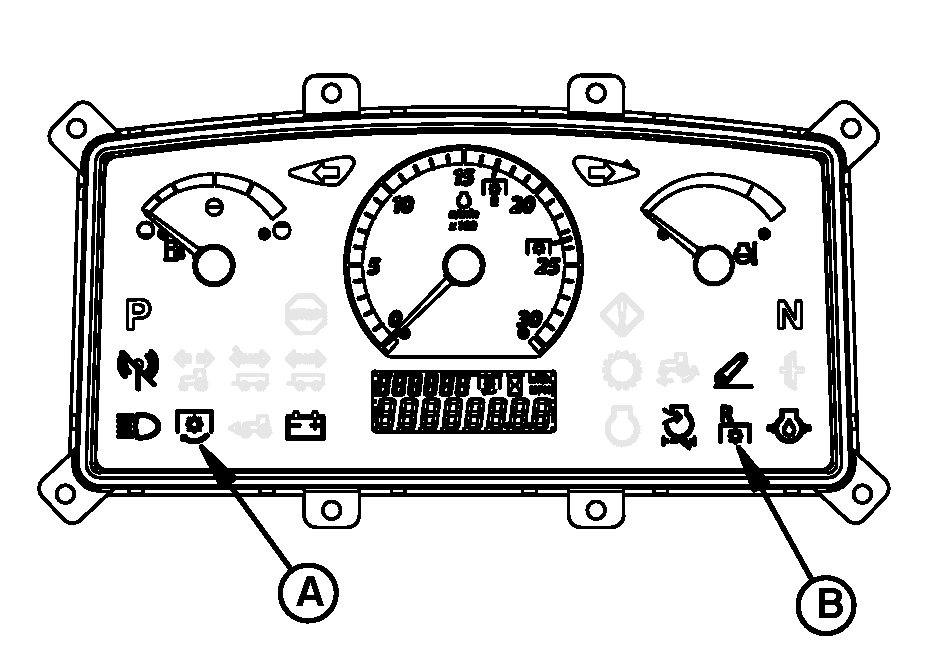

APY40178-UN-03NOV20

For Telematics and Non Telematics (2400 rpm)

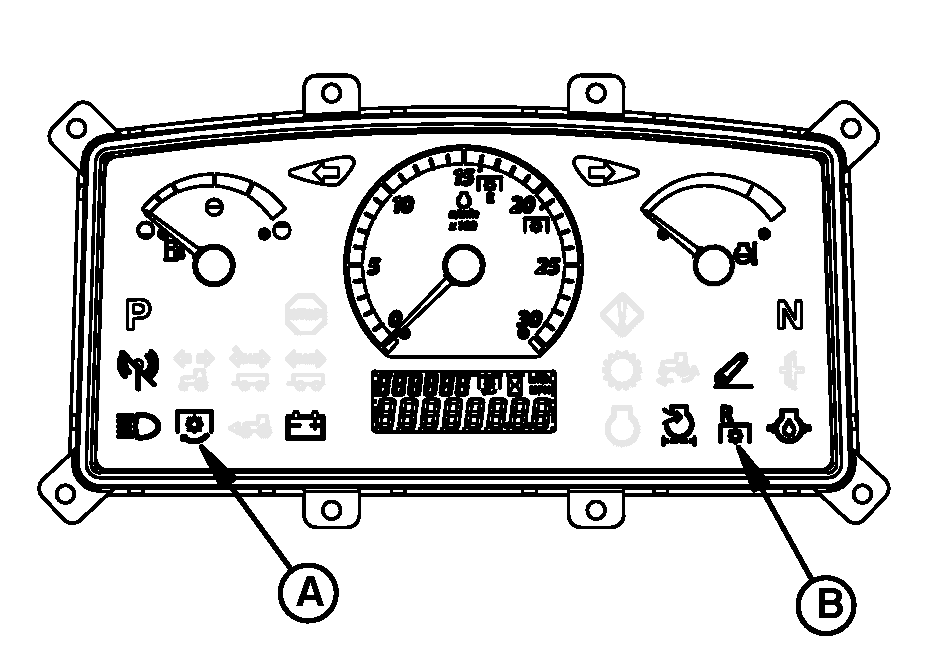

APY40154-UN-03NOV20

For Telematics (2100 rpm)

A - PTO Indicator

B - Reverse PTO Indicator

NOTE: There is no indicator for Economy PTO lever engagement.

Observe the signals on the instrument cluster once standard or reverse PTO levers are engaged.

These signals will continuously glow in yellow color, and reverse PTO indicator (B) will glow in amber color with a beeping sound in it.

While starting the engine if PTO indicators (A) or reverse PTO indicator (B) or both are glowing then disengage the respective PTO levers and then start the engine, otherwise engine will not start.
