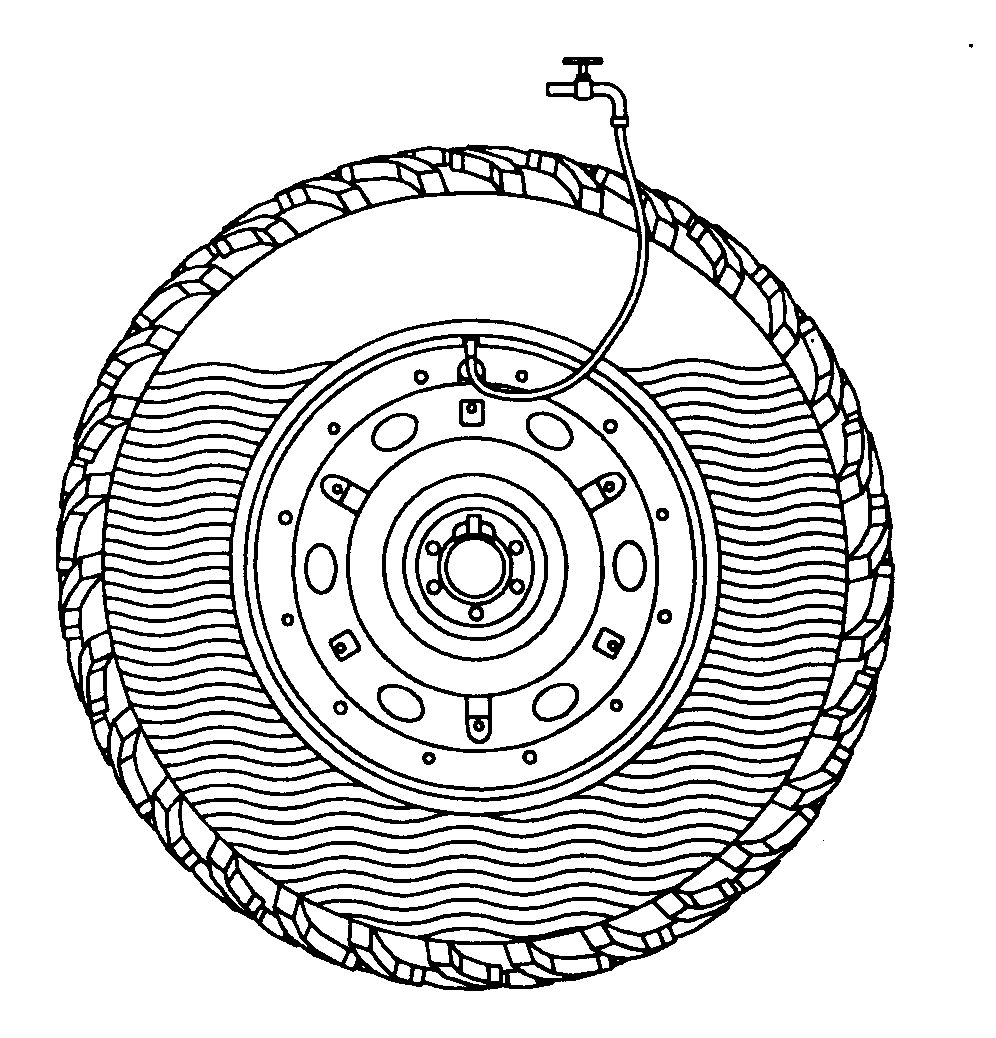

Use Liquid Weight

RW25003-UN-07JUL93

CAUTION: Installing liquid ballast requires special equipment and training. Have the job done by your John Deere dealer or a tyre service store.

IMPORTANT: NEVER fill tire to more than 75% full. More solution would leave too little air space to absorb shocks. Damage to tyre could occur.

A solution of water and calcium chloride provides safe, economical ballast. Used properly, it will not damage Tires, tubes, or rims.

Use calcium chloride to prevent water from freezing. A mixture of 0.6 kg per liter (5.0 lb of calcium chloride per gal) will not freeze solid above —45°C (—53°F).

Charts on this page show how much each tire size holds if filled to 75 % full.

LIQUID WEIGHT FOR FRONT Tires With 0.6 kg/L (5 lb/gal) Calcium Chloride Solution
2 WD
Tire Size	Liquid Weight per tire kg (lb)—75% Full
6-16	30 (67)
6.50-20	34 (74)
7.5-16	49 (108)
MFWD
Tire Size	Liquid Weight per tire kg (lb)—75% Full
9.5-24	85(187)
11.2-24	115 (253)
12.4-24	125 (275)

LIQUID WEIGHT FOR REAR TIRES With 0.6 kg/L (5 lb/gal) Calcium Chloride Solution
Tire Size	Liquid weight per Tire kg (lb)—75% Full
14.9-28	339 (747)
16.9-28	339 (747)
16.9-30	357 (787)
18.4-30	414 (912)
