Check Engine Oil Level

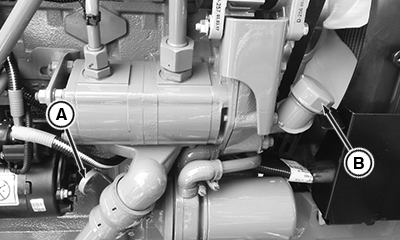

PY42538-UN-01AUG17

A - Engine Oil Dipstick

B - Engine Oil Filler Hole

1. Park tractor on level ground and pull out dipstick (A). Oil level should be between two marks on dipstick . DO NOT operate engine when oil level is below low mark on dipstick.

2. If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT over fill. Use seasonal viscosity grade oil. (See Fuels, Lubricants and Coolant section.)
