Service Air Cleaner

PY42548
PY42548-UN-31JUL17

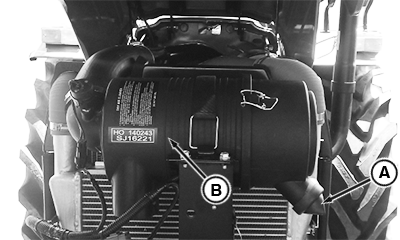

A - Air Cleaner

B - Dust Unloader Valve

A dual element air cleaner is standard. A dirty primary element is indicated when the air filter restriction indicator on the instrument panel illuminates. A dirty element can result in loss of power or excessive smoke.

IMPORTANT: Check unloader valve (B) frequently. Empty as often as needed to keep it from filling with dust. If valve is allowed to fill with dust, air cleaner element plugs rapidly.

Service air cleaner (A) when indicator light illuminates, every 250 hours or at least once a year.

Replace primary element at least one a year.

The secondary element should be removed only when being replaced, normally once a year. (See procedure in Remove Air Cleaner Elements in Service section.)

MS76789,00002EA-19-20170612
