Replace Flood Lamp Bulb

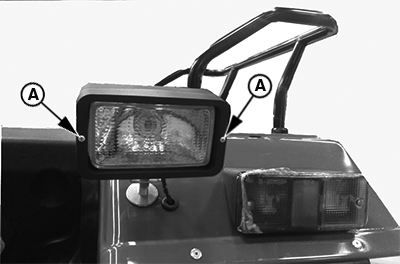

PY40689-UN-18JAN18

A - Hardware

1. Loosen mounting hardware (A) and rotate flood lamp up to access cover fastening screw

2. Remove screw, lamp cover, and lamp from housing

3. Disconnect wiring leads from bulb

4. Rotate bulb counterclockwise and remove

5. Reverse the procedure to reassemble the flood lamp
