Check Coolant Level

TS281-UN-15APR13

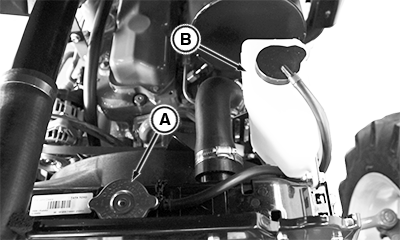

PY42580-UN-31JUL17

A - Radiator Cap

B - Expansion Tank

CAUTION: Only remove radiator cap (A) when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

IMPORTANT: Periodically check coolant level in radiator. If cap should become defective, coolant would not be drawn from the recovery tank, and could cause the engine to overheat. Replace cap as necessary.

1. Check coolant level in the expansion tank (B).

2. If engine is cool and level is below LOW add coolant to recovery tank to bring to LOW. (See Fuels, Lubricants, and Coolant section.)
