Drain Water and Sediment from Fuel Tank and Fuel Filter

  1. NOTE: Place a small container under the drain fitting to catch draining fuel. Dispose of waste properly.

    PY4412
    PY4412-UN-31DEC04

    PY42581
    PY42581-UN-31JUL17

    A - Fuel Tank Fitting

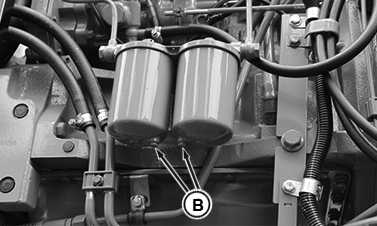

    B - Fuel Filter Drain

    Open fuel tank fitting (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten fitting closed when clear fuel runs from fitting.



  2. Open fuel filter drain (B) to bleed accumulated moisture and sediment from filter. Tighten drain when clear fuel runs from drain.

MS76789,0000303-19-20170626
