Check Neutral Start System

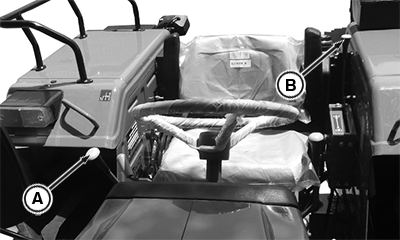

PY42582-UN-31JUL17

A - Gear Shift Lever

B - PTO Control Lever

Your John Deere tractor is equipped with interlocks to prevent inadvertent movement when the engine is started. Turning the key switch with the clutch pedal depressed should crank the engine if all of the following conditions exist:

• Gear shift lever (A) in NEUTRAL
• PTO lever (B) in disengaged position

CAUTION: If the starter turns engine in any of the following steps, have the neutral start system repaired by your John Deere dealer.

Turning the key switch to the start position should NOT start the engine, if either of the following exist:

• Gear shift lever (A) in gear (not in NEUTRAL)
• PTO lever (B) in engaged position
