Fuel System Components (Rotary Pump)

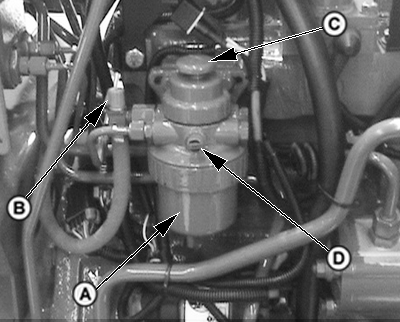

PY4437-UN-03JAN05

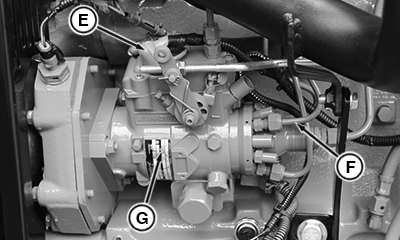

PY42592-UN-31JUL17

A - FuelGard™ fuel filter

B - Fuel shutoff Valve

C - Priming Pump

D - Bleed Screw

E - Electric Fuel shutoff

F - Fuel Injection Line

G - Injection Pump
